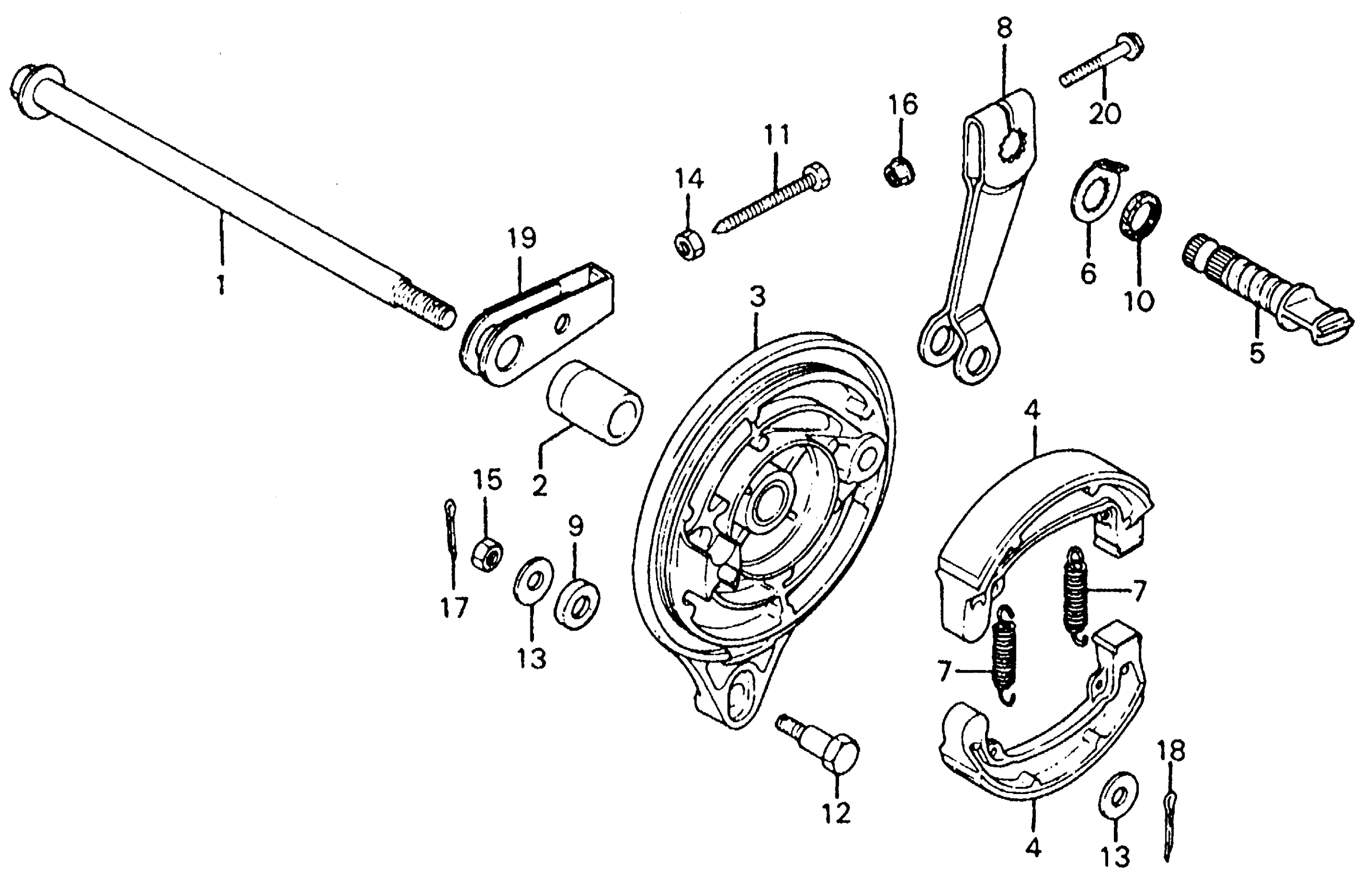

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-KBG-700

$29.92

NI

SHOE SET, BRAKE This part replaces 06430-KBG-701.

06430-KBG-700

$29.92

NI

SHOE SET, BRAKE This part replaces 06430-362-000.

06430-KBG-700

$29.92

NI

SHOE SET, BRAKE This part replaces 06430-362-405.

06430-KBG-700

$29.92

NI

SHOE SET, BRAKE This part replaces 431A2-362-000.

06430-KBG-700

$29.92

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-304-972

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE

42313-399-000

$19.38

3

PANEL, RR. BRAKE (YAMADA) (NOT AVAILABLE) | Use up to Frame SN 2004684

43100-399-003

Unavailable

4

SHOE SET, BRAKE This part replaces 43120-362-000.

06430-KBG-700

$29.92

5

CAM, RR. BRAKE (NOT AVAILABLE)

43141-399-000

Unavailable

6

INDICATOR, RR. BRAKE

43145-399-000

Unavailable

7

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

8

ARM, RR. BRAKE

43410-KR3-000

$21.74

8

ARM, RR. BRAKE This part replaces 43410-419-000.

43410-KR3-000

$21.74

9

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

12

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

17

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

17

PIN, COTTER (2.0X22)

94201-20220

$1.49

17

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

17

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

17

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

17

PIN, COTTER (2.0X35)

94201-20350

$1.49

17

PIN, COTTER (2.0X22)

94201-29220

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

18

PIN, COTTER (2.0X22)

94201-20220

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

18

PIN, COTTER (2.0X35)

94201-20350

$1.49

18

PIN, COTTER (2.0X22)

94201-29220

$1.49

19

ADJUSTER G, CHAIN

95014-16000

Unavailable

20

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
