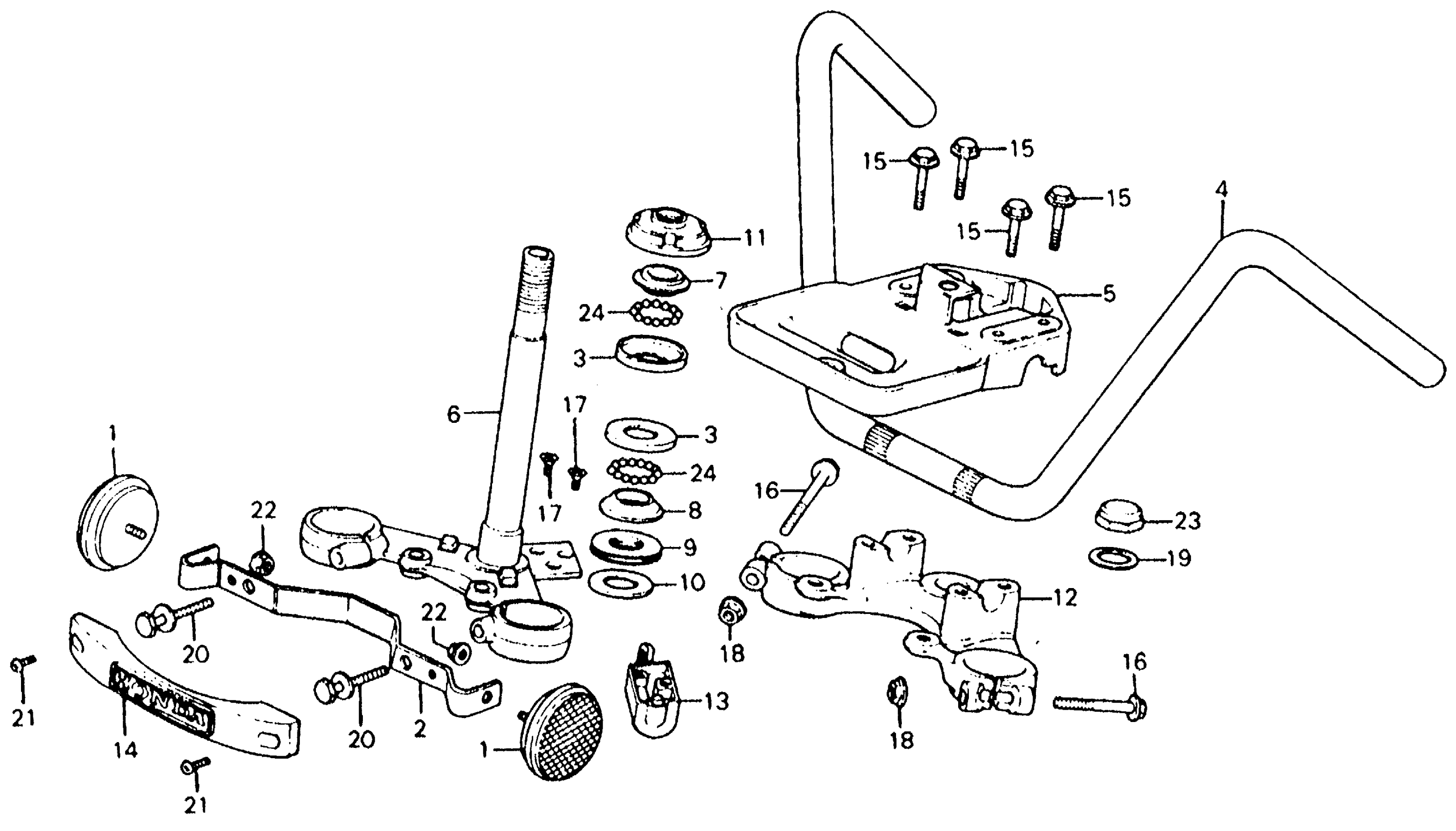

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 HANDLEBAR + STEM + TOP BRIDGE Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

STAY, REFLECTOR (NOT AVAILABLE)

33751-419-000

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

3

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

HANDLEBAR (NOT AVAILABLE)

53100-419-670

Unavailable

5

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53130-419-000

Unavailable

6

STEM, STEERING *NH1* (BLACK)

53200-402-000ZA

Unavailable

7

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

7

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

9

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

10

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

11

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

12

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-402-000

Unavailable

13

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

14

EMBLEM, FR. (NOT AVAILABLE)

87127-419-000

Unavailable

15

BOLT, FLANGE (8X36)

90111-362-000

$4.80

16

BOLT, FLANGE (7X54)

90155-369-000

$6.01

17

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

18

NUT, FLANGE (7MM)

90355-369-000

$4.94

19

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

19

WASHER, STEERING STEM

90503-051-870

$2.84

20

BOLT-WASHER (8X40)

93481-08040-00

Unavailable

21

SCREW, PAN (4X8)

93500-04008-0G

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

NUT, STEERING STEM

90304-159-000

$7.02

23

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

24

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
