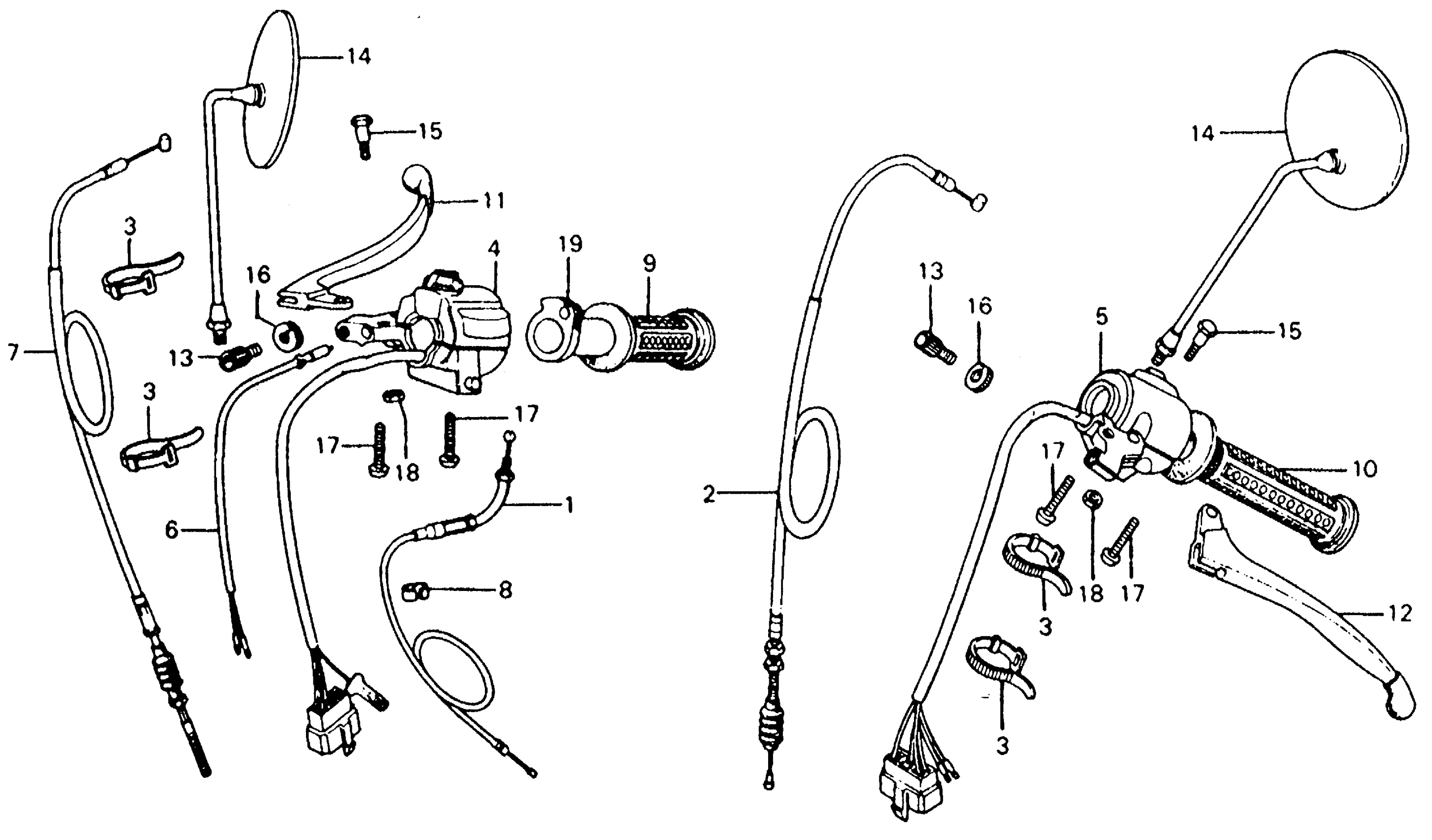

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17900-419-670

Unavailable

1

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-419-670.

17900-419-670

Unavailable

2

CABLE, CLUTCH

22870-419-670

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., STOP (TOYO) (NOT AVAILABLE)

35150-419-671

Unavailable

5

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-419-670

Unavailable

6

SWITCH ASSY., FR. STOP | Use from Frame SN 2009489 This part replaces 35340-329-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use from Frame SN 2009489 This part replaces 35330-391-690.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use from Frame SN 2009489 This part replaces 35340-147-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use from Frame SN 2009489

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use from Frame SN 2009489 This part replaces 35340-329-010.

35340-329-003

$17.46

7

CABLE, FR. BRAKE This part replaces 45450-419-670.

45450-419-671

Unavailable

7

CABLE, FR. BRAKE

45450-419-671

Unavailable

8

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

8

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

9

GRIP, R. HANDLEBAR

53165-419-670

Unavailable

10

GRIP, L. HANDLEBAR

53166-419-670

Unavailable

11

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

12

LEVER, L. HANDLE

53178-369-700

$28.35

13

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

14

MIRROR (NOT AVAILABLE)

88110-419-000

Unavailable

15

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

16

NUT, FIXING

90321-315-670

$7.31

16

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

17

SCREW, PAN (5X25)

93500-05025-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

PIPE A, THROTTLE GRIP

95014-51100

$17.62
