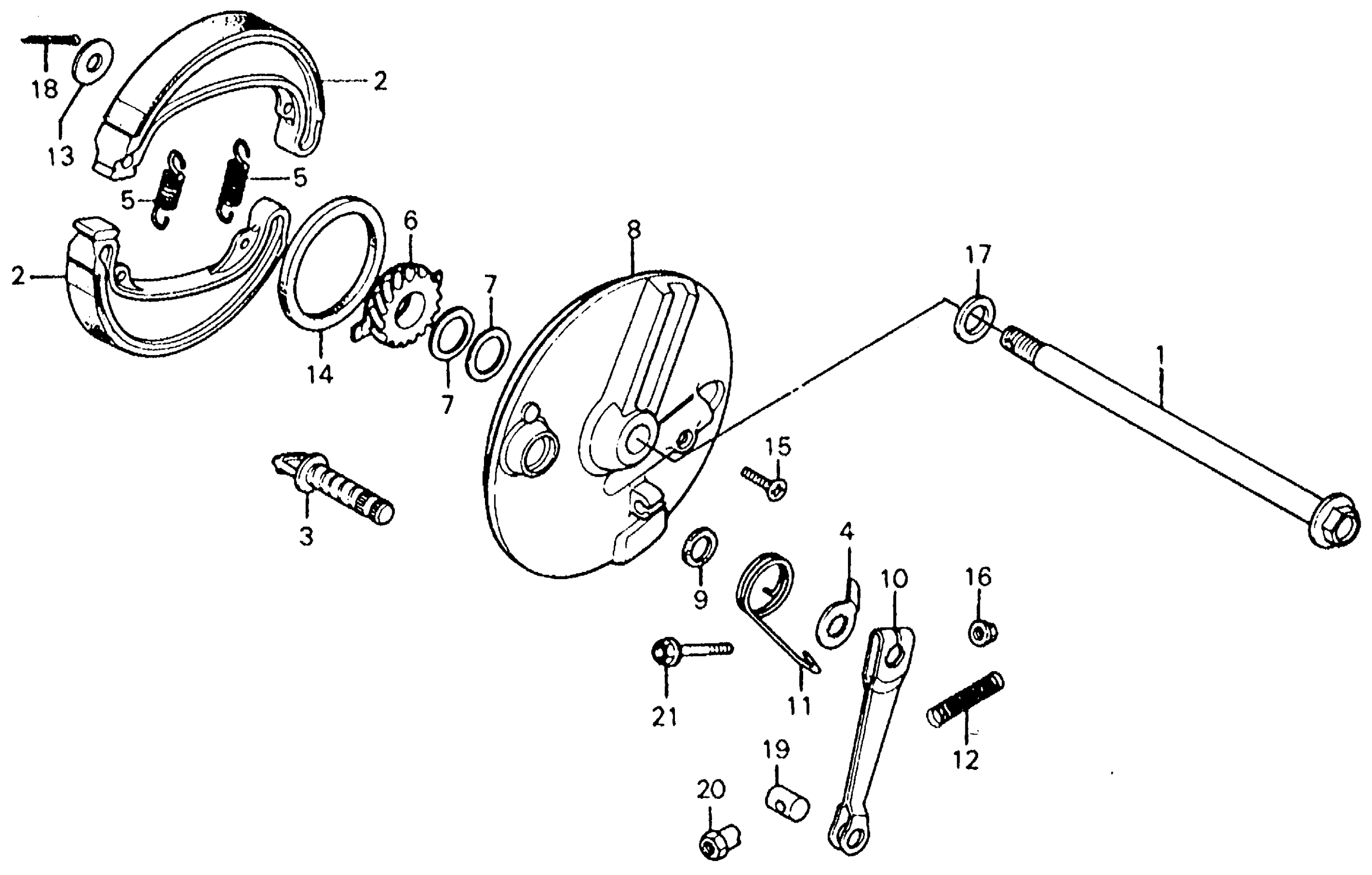

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

SHOE SET, BRAKE

06450-KC2-680

$42.29

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

AXLE, RR. WHEEL

42301-401-680

Unavailable

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

CAM, RR. BRAKE (NOT AVAILABLE)

43141-399-000

Unavailable

INDICATOR, RR. BRAKE

43145-399-000

Unavailable

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

GEAR, SPEEDOMETER (YAMADA) (NOT AVAILABLE)

44804-402-003

Unavailable

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

SUB-PANEL, FR. BRAKE (YAMADA)

45010-402-003

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

ARM, FR. BRAKE

45410-402-000

$22.13

ARM, FR. BRAKE (NOT AVAILABLE)

45410-473-000

Unavailable

SPRING, FR. BRAKE ARM RETURN

45435-121-010

$5.13

SPRING, FR. BRAKE ARM RETURN

45435-250-000

$4.61

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

OIL SEAL (54X66X7)

91251-230-003

$12.60

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, FLAT (14MM)

94102-14000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
