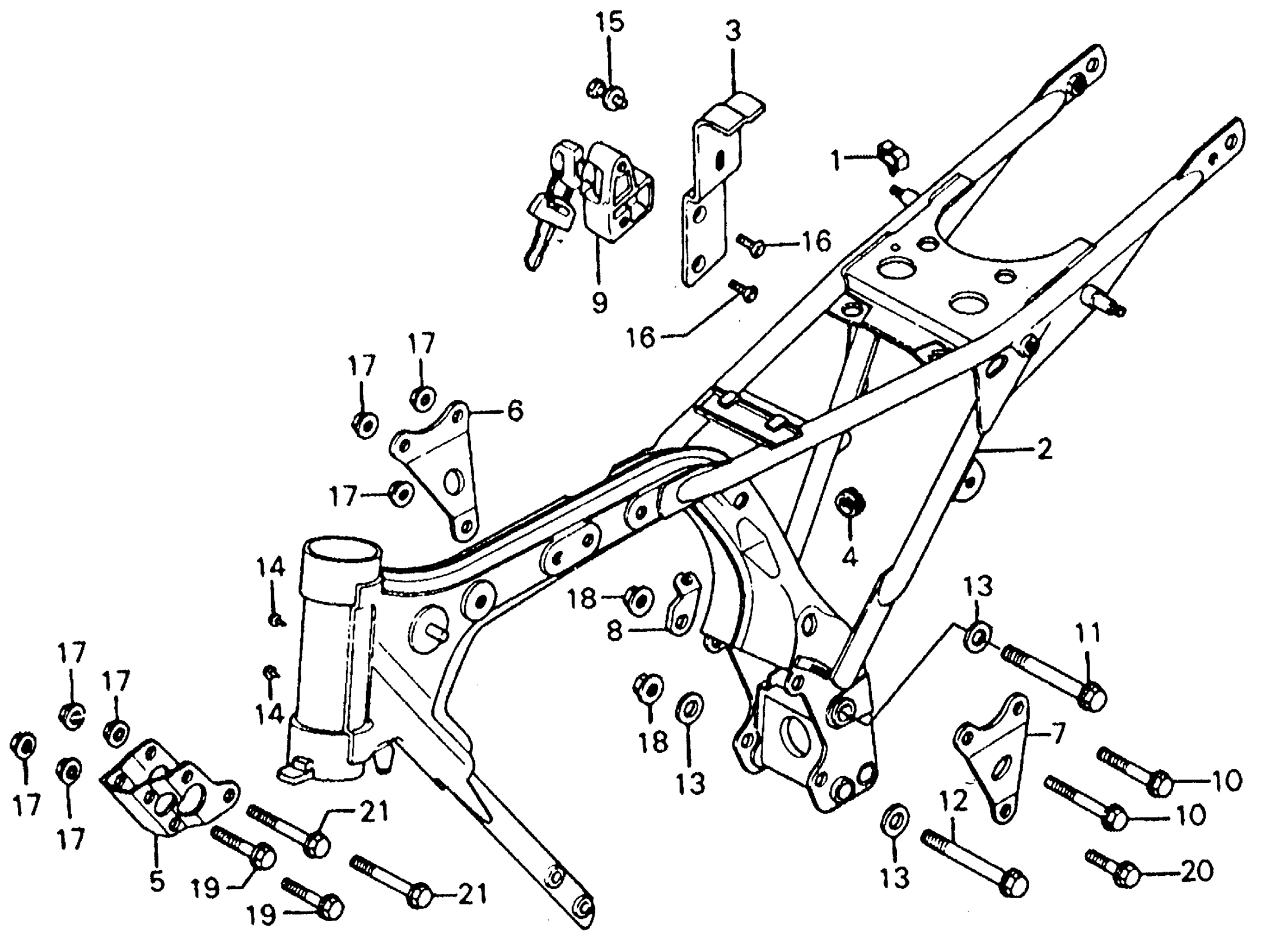

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 FRAME Diagram

#

Description
Price

1

GROMMET, CABLE

32985-300-000

$3.35

2

FRAME *NH1* (BLACK) | Use up to Frame SN 2050000

50100-419-670ZA

Unavailable

2

FRAME *NH1* (BLACK) | Use from Frame SN 2050001

50100-419-700ZA

Unavailable

3

STAY, HELMET HOLDER (NOT AVAILABLE) | Use from Frame SN 2053631

50149-418-630

Unavailable

3

STAY, HELMET HOLDER | Use up to Frame SN 2053630

50149-419-000

Unavailable

4

GROMMET, FEED TUBE

50163-063-000

$3.85

5

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-402-000ZA

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) This part replaces 50353-402-000ZA.

50353-402-030ZA

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) This part replaces 50353-402-020.

50353-402-030ZA

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) This part replaces 50353-402-020ZA.

50353-402-030ZA

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK)

50353-402-030ZA

Unavailable

7

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-402-000

Unavailable

7

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE) This part replaces 50354-402-000ZA.

50354-402-000

Unavailable

8

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-399-010

Unavailable

9

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

10

BOLT, FLANGE (8X85) This part replaces 90010-392-000.

95701-08085-00

$2.48

10

BOLT, FLANGE (8X85) This part replaces 95700-08085.

95701-08085-00

$2.48

10

BOLT, FLANGE (8X85) This part replaces 95700-08085-00.

95701-08085-00

$2.48

10

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

11

BOLT, FLANGE (10X115)

90018-399-010

$7.51

12

BOLT, FLANGE (10X110)

90019-399-010

$7.04

13

WASHER B, SEALING (10MM)

90442-283-000

$2.51

14

SCREW, RIVET (1.5X5) (NOT AVAILABLE)

90841-001-000

$1.51

15

BOLT B, SPECIAL (6MM) | Use from Frame SN 2053631 to 2056420 This part replaces 90106-428-000.

90107-195-860

Unavailable

15

BOLT B, SPECIAL (6MM) | Use from Frame SN 2053631 to 2056420

90107-195-860

Unavailable

15

BOLT B, SPECIAL (6MM) | Use from Frame SN 2053631

90107-195-860

Unavailable

15

BOLT B, SPECIAL (6MM) | Use from Frame SN 2053631 to 2056420 This part replaces 90107-428-000.

90107-195-860

Unavailable

15

BOLT B, SPECIAL (6MM) | Use from Frame SN 2053631 This part replaces 90107-428-000.

90107-195-860

Unavailable

15

BOLT-WASHER (6X12) | Use up to Frame SN 2053630

93401-06012-00

$1.55

15

BOLT-WASHER (6X12) | Use up to Frame SN 2053630 This part replaces 93411-06012-00.

93401-06012-00

$1.55

15

BOLT-WASHER (6X12) | Use up to Frame SN 2053630 This part replaces 93481-06012-00.

93401-06012-00

$1.55

16

SCREW, FLAT (6X10) This part replaces 93600-06010.

93600-06010-0A

$3.90

16

SCREW, FLAT (6X10)

93600-06010-0A

$3.90

17

NUT, FLANGE (8MM)

94050-08000

$1.49

18

NUT, FLANGE (10MM)

94050-10000

$1.59

19

BOLT, FLANGE (8X55) This part replaces 95700-08055-00.

95701-08055-00

$2.28

19

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

20

BOLT, FLANGE (8X35) (NOT AVAILABLE)

95800-08035-00

Unavailable

21

BOLT, FLANGE (8X65) This part replaces 95800-08065-00.

95801-08065-00

$2.75

21

BOLT, FLANGE (8X65)

95801-08065-00

$2.75
