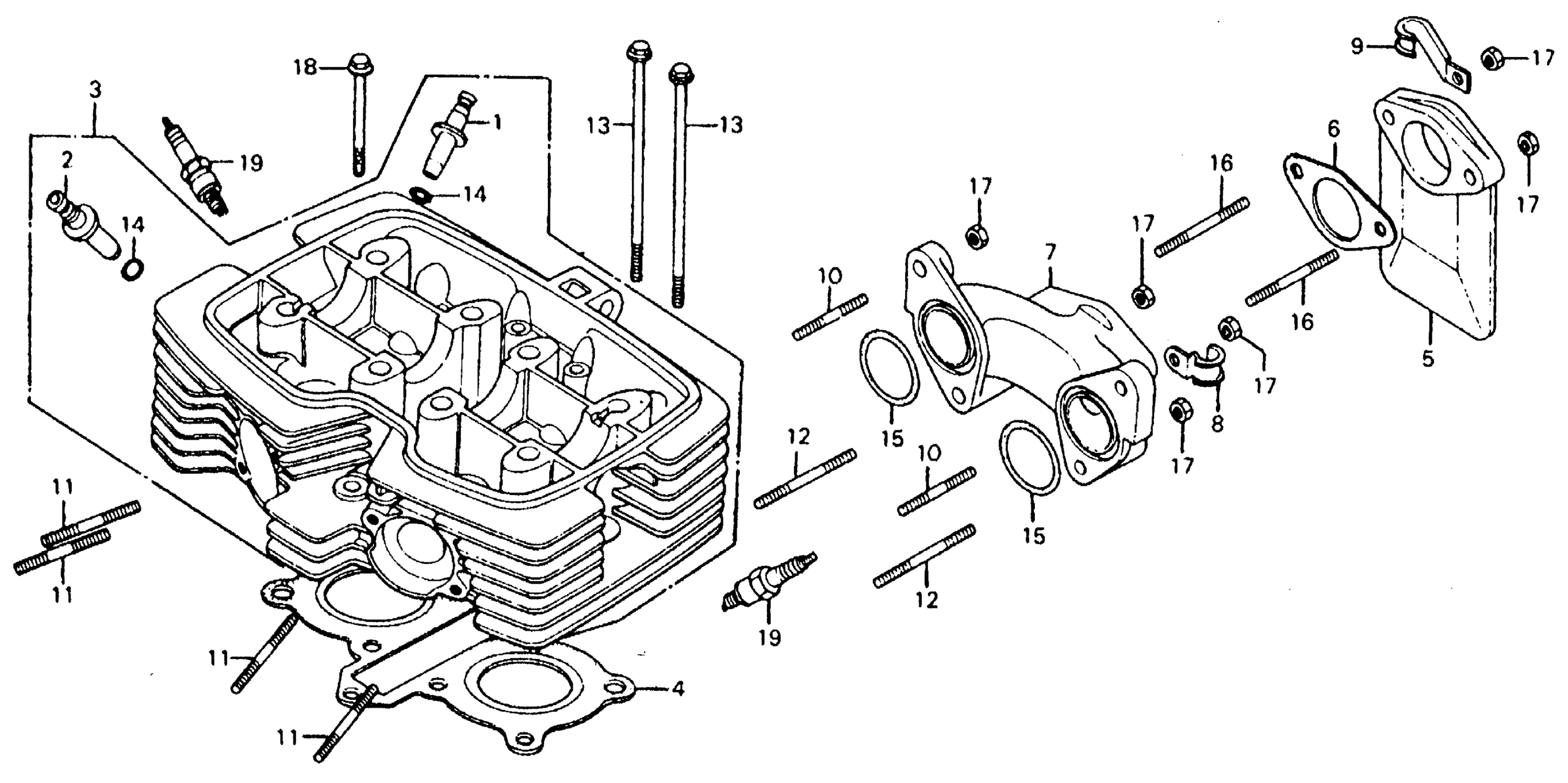

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$18.90

2

GUIDE, VALVE

12023-465-405

$18.90

3

CYLINDER HEAD

12200-418-000

Unavailable

4

GASKET, CYLINDER HEAD

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KB4-671.

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-418-000.

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-464-000.

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-464-010.

12251-KB4-315

Unavailable

5

INSULATOR, CARBURETOR This part replaces 16212-402-000.

16212-402-306

Unavailable

5

INSULATOR, CARBURETOR

16212-402-306

Unavailable

6

GASKET, CARBURETOR INSULATOR

16229-KC2-681

Unavailable

6

GASKET, CARBURETOR INSULATOR This part replaces 16229-402-000.

16229-KC2-681

Unavailable

6

GASKET, CARBURETOR INSULATOR This part replaces 16229-464-000.

16229-KC2-681

Unavailable

6

GASKET, CARBURETOR INSULATOR This part replaces 16229-464-306.

16229-KC2-681

Unavailable

7

MANIFOLD, IN. (NOT AVAILABLE)

17111-402-000

Unavailable

8

CLIP, IGNITION WIRE (NOT AVAILABLE) This part replaces 32906-402-000.

32906-402-010

Unavailable

8

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-402-010

Unavailable

9

CLIP, IGNITION WIRE (NOT AVAILABLE)

32907-402-000

Unavailable

10

BOLT, STUD (6X32)

90033-399-000

$2.07

11

BOLT, STUD (6X33)

90034-KR3-000

$2.92

11

BOLT, STUD (6X33) This part replaces 90034-399-000.

90034-KR3-000

$2.92

12

BOLT, STUD (6X50)

90034-402-000

$4.08

13

BOLT, FLANGE (6X130) | Use up to Engine SN 2058628 This part replaces 90048-329-000.

95701-06130-00

$3.06

13

BOLT, FLANGE (6X134) | Use from Engine SN 2058629

90048-399-000

Unavailable

13

BOLT, FLANGE (6X130) | Use up to Engine SN 2058628

95701-06130-00

$3.06

14

O-RING (10X1.6)

91301-200-000

$3.01

15

O-RING (25.5X2.5) (ARAI)

91301-KR3-003

$4.21

15

O-RING (26X2.7)

91301-805-000

$3.98

16

BOLT 2, STUD (6X32) This part replaces 92700-06045.

92900-06032-0E

$2.45

16

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$2.45

16

BOLT 2, STUD (6X32)

92900-06032-0E

$2.45

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

18

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

19

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57710.

98056-57713

$2.38

19

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.38

19

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.38

19

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.38

19

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57722.

98056-57713

$2.38
