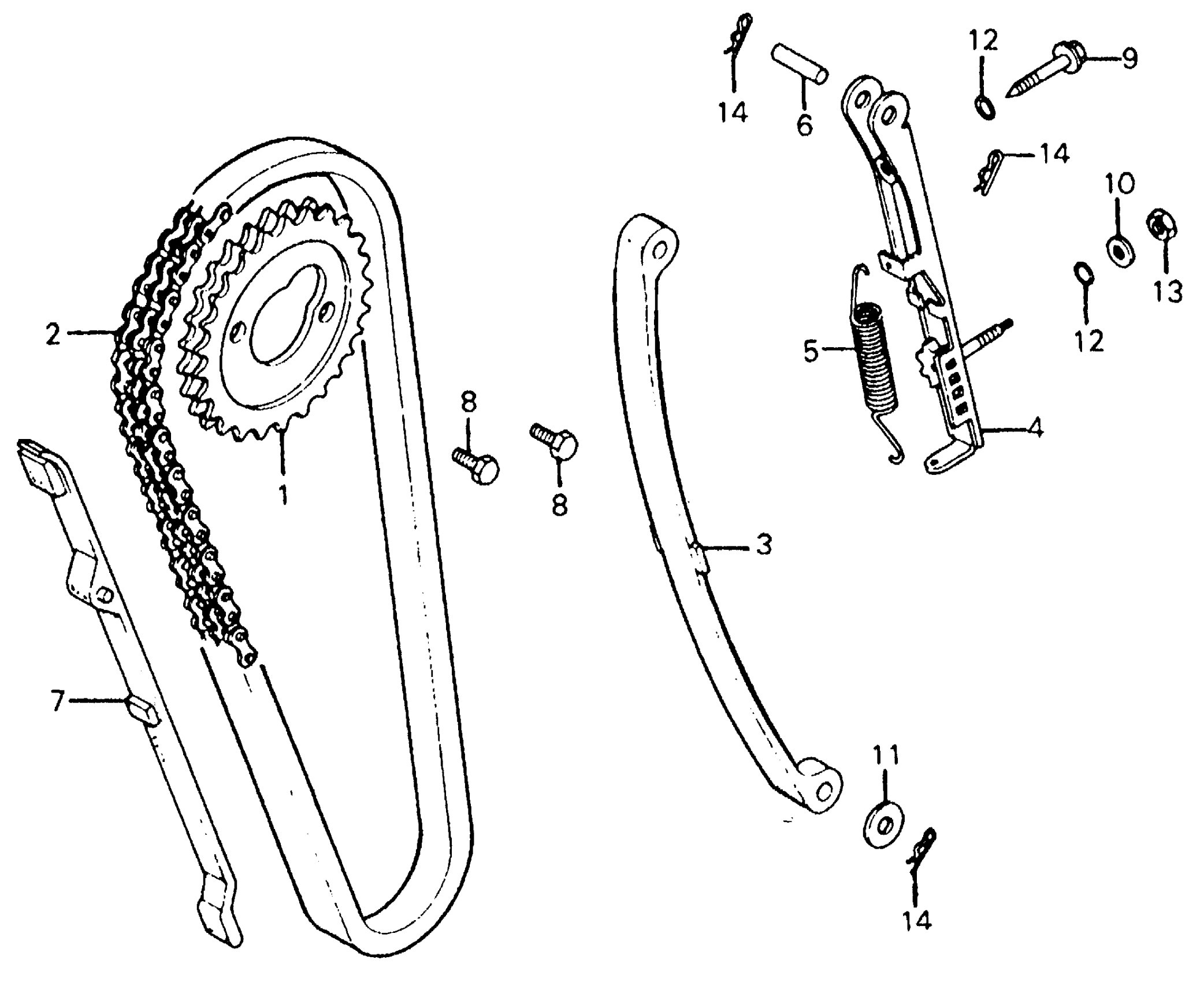

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (38T)

14321-399-000

Unavailable

2

CHAIN, CAM (DID25T-2-94L) (DAIDO)

14401-399-003

Unavailable

3

TENSIONER, CAM CHAIN This part replaces 14500-399-000.

14500-464-013

Unavailable

3

TENSIONER, CAM CHAIN

14500-464-013

Unavailable

4

BASE ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 2055140 This part replaces 14510-399-000.

14510-399-010

Unavailable

4

BASE, CAM CHAIN TENSIONER | Use from Engine SN 2055141

14511-399-310

Unavailable

4

PLATE B, CAM CHAIN TENSIONER | Use from Engine SN 2055141

14513-399-300

Unavailable

4

BASE ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE)

14510-399-010

Unavailable

5

SPRING, CAM CHAIN TENSIONER This part replaces 14515-399-000.

14515-402-730

Unavailable

5

SPRING, CAM CHAIN TENSIONER

14515-402-730

Unavailable

6

ADJUSTER, CAM CHAIN TENSIONER | Use from Engine SN 2055141

14538-399-300

Unavailable

6

PIN B, TENSIONER SETTING (NOT AVAILABLE)

14518-399-000

Unavailable

7

GUIDE, CAM CHAIN

14550-399-000

Unavailable

8

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

8

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

9

BOLT, SPECIAL (6X28)

90125-KB4-670

$4.61

9

BOLT, SPECIAL (6MM) This part replaces 90125-399-000.

90125-KB4-670

$4.61

10

WASHER, SEALING (6MM)

90442-035-000

$2.21

11

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

12

O-RING (5.8X1.9)

91305-323-000

$2.92

12

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

PIN, LOCK (6MM)

94251-06000

$1.49
