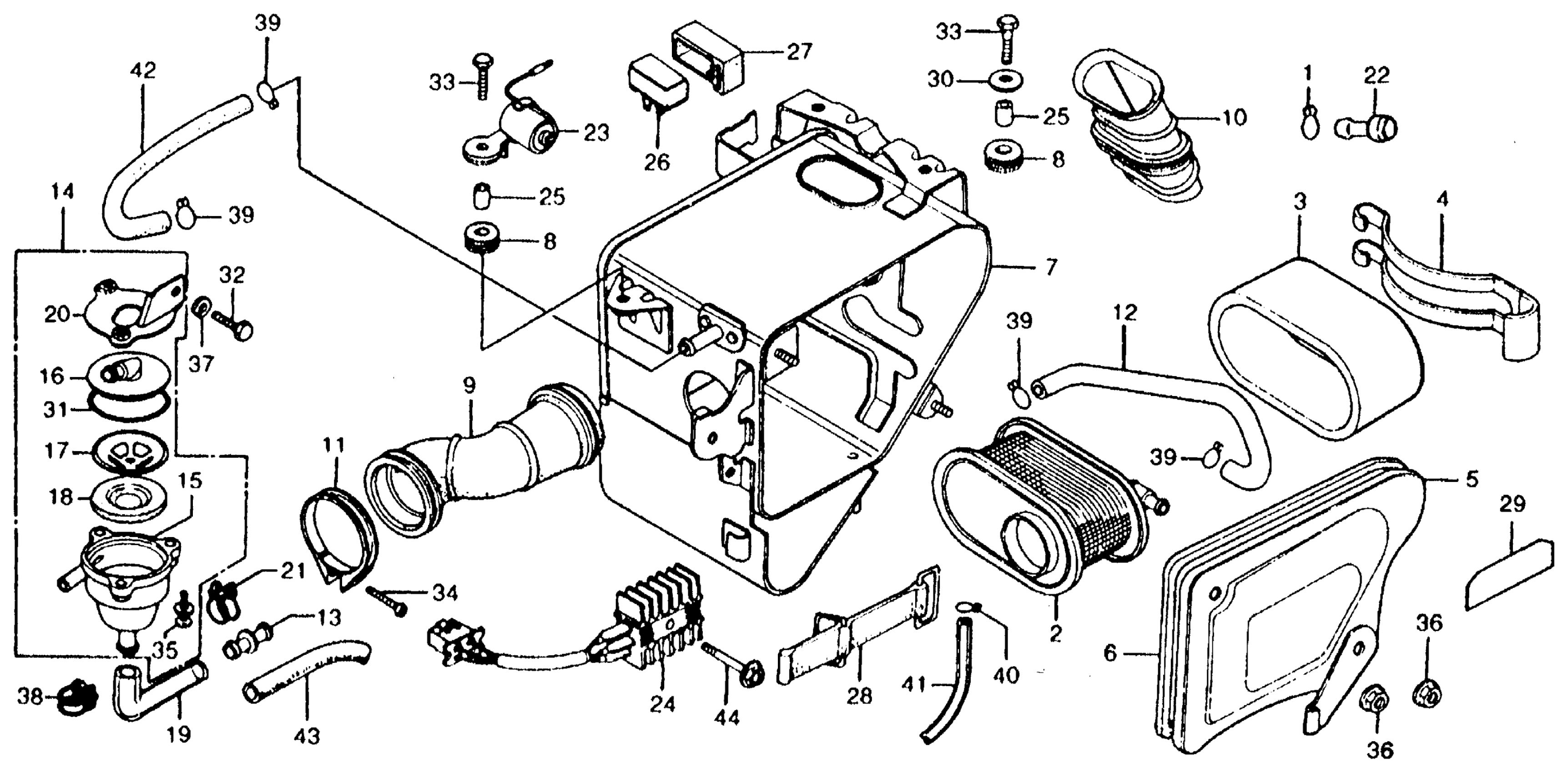

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN

15707-634-000

$5.13

2

TRAP, FLAME (NOT AVAILABLE)

17211-419-670

Unavailable

3

ELEMENT A, A/CLNR This part replaces 17213-402-000.

17213-402-730

$11.51

4

SPRING, ELEMENT (NOT AVAILABLE)

17217-419-670

Unavailable

5

COVER, AIR CLEANER

17225-402-000

Unavailable

6

GASKET, AIR CLEANER HOUSING

17226-402-300

Unavailable

7

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-419-670

Unavailable

8

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

9

TUBE, AIR CLEANER CONNECTING

17253-418-710

Unavailable

10

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17254-402-000

Unavailable

11

BAND A, AIR CLEANER CONNECTING TUBE

17255-323-000

$7.30

12

TUBE, BREATHER (NOT AVAILABLE)

17278-419-670

Unavailable

13

JOINT, BREATHER TUBE

17359-419-670

$1.95

14

SEPARATOR ASSY., BREATHER (NOT AVAILABLE)

17360-419-670

Unavailable

15

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

16

CAP, BREATHER SEPARATOR

17362-419-670

Unavailable

17

HOLDER, ELEMENT

17363-419-670

Unavailable

18

ELEMENT, CONDENSATION

17364-419-000

Unavailable

19

TUBE, DRAIN

17365-419-000

Unavailable

20

COVER, BREATHER SEPARATOR

17368-419-670

Unavailable

21

CLIP, TUBE (A13.5)

17369-419-670

Unavailable

22

PLUG, BREATHER TUBE

17370-419-700

$3.74

23

CONDENSER This part replaces 30250-402-000.

30250-402-010

Unavailable

23

CONDENSER

30250-402-010

Unavailable

24

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-418-003

Unavailable

25

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

26

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

26

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

26

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

26

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

26

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

26

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

27

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

28

BAND, SIDE COVER

83606-356-000

$23.26

29

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

30

WASHER, WHEEL (6MM)

90563-355-000

$3.13

31

O-RING (47X1.9)

91305-419-670

Unavailable

32

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

32

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

32

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

33

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

33

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

33

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

34

SCREW, PAN (4X25)

93500-04025-0A

$1.93

35

SCREW-WASHER (4X18)

93891-04018-08

Unavailable

36

NUT, FLANGE (6MM)

94050-06080

$1.49

37

WASHER, SPRING (5MM)

94111-05000

$1.49

38

CLIP, TUBE (A16)

95002-01160

$4.05

39

CLIP, TUBE (B12.5)

95002-02130

$1.49

40

CLIP, TUBE (C6)

95002-30000

Unavailable

41

*95003-08001-10M This part replaces 95003-08035-10.

95003-08040-10S

Unavailable

42

BULK HOSE, VACUUM (8X1000) (8X160)

95005-80001-20M

$23.91

43

BULK HOSE, VACUUM (8X1000) (8X350)

95005-80001-20M

$23.91

44

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

44

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
