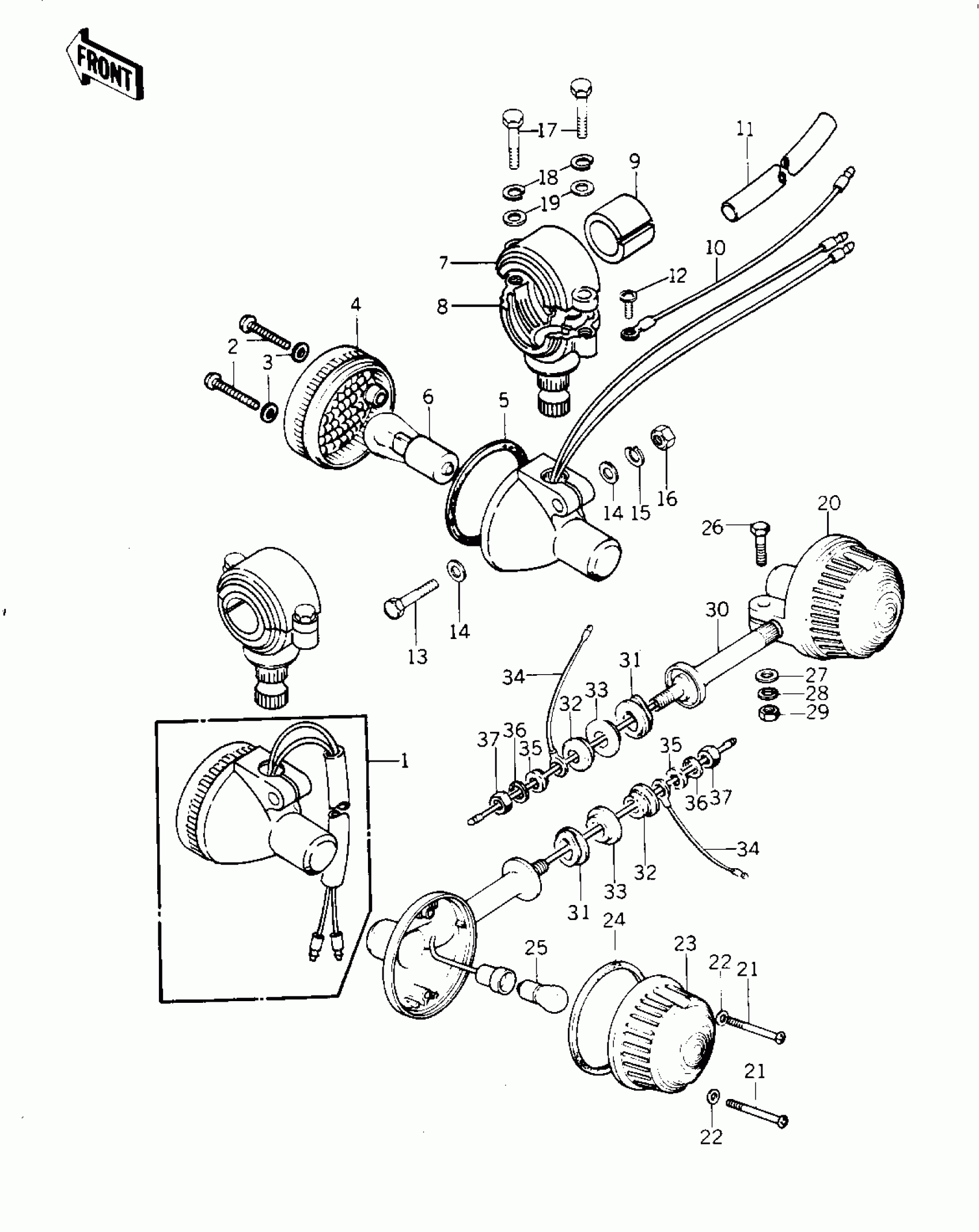

Kawasaki Classic TURN SIGNALS Diagram

#

Description
Price

1

LAMP,FRNT,TURN SIGNAL

23040-1004

$139.11

2

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

3

WASHER,PLAIN,4MM

23058-002

$2.49

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$10.57

5

GASKET,SIGNAL LAMP

23050-003

$5.80

6

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

7

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.20

8

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

9

DAMPER

23066-003

$7.71

10

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

11

COVER-WIRING HARNESS

26009-004

Unavailable

12

SCREW PAN HEAD 3X5

220B0305A

$0.48

13

BOLT-UPSET

112G0630

Unavailable

14

WASHER PLAIN 6MM

411B0600

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

NUT 6MM

311B0600

Unavailable

17

BOLT

110N0516

Unavailable

18

WASHER SPRING 5MM

461F0500

Unavailable

19

WASHER-PLAIN-SMALL,5MM

410D0500

$1.14

20

LAMP-TURN SIGNAL

23040-029

$153.16

21

SCREW-PAN HEAD,4X35

220E0435A

$7.93

22

WASHER,PLAIN,4MM

23058-002

$2.49

23

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$10.96

24

GASKET,TURN SIGNAL LAMP

23050-002

$4.97

25

BULB,12V 32CP(23W)

92069-055

$5.18

26

BOLT-UPSET

112G0630

Unavailable

27

WASHER PLAIN 6MM

411B0600

Unavailable

28

WASHER SPRING 6MM

461F0600

Unavailable

29

NUT 6MM

311B0600

Unavailable

30

BRACKET,TURN SIG LAMP

23051-1006

Unavailable

31

DAMPER,LAMP

92075-128

$5.86

32

COLLAR

92027-147

$15.20

33

DAMPER RUBBER,SIG LM

92075-158

$5.47

34

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

35

WASHER,10.5X20X1

92022-239

$3.92

36

WASHER,10.5X20X1

92022-239

$3.92

37

NUT-HEX-FINE,10MM

315B1000

Unavailable
