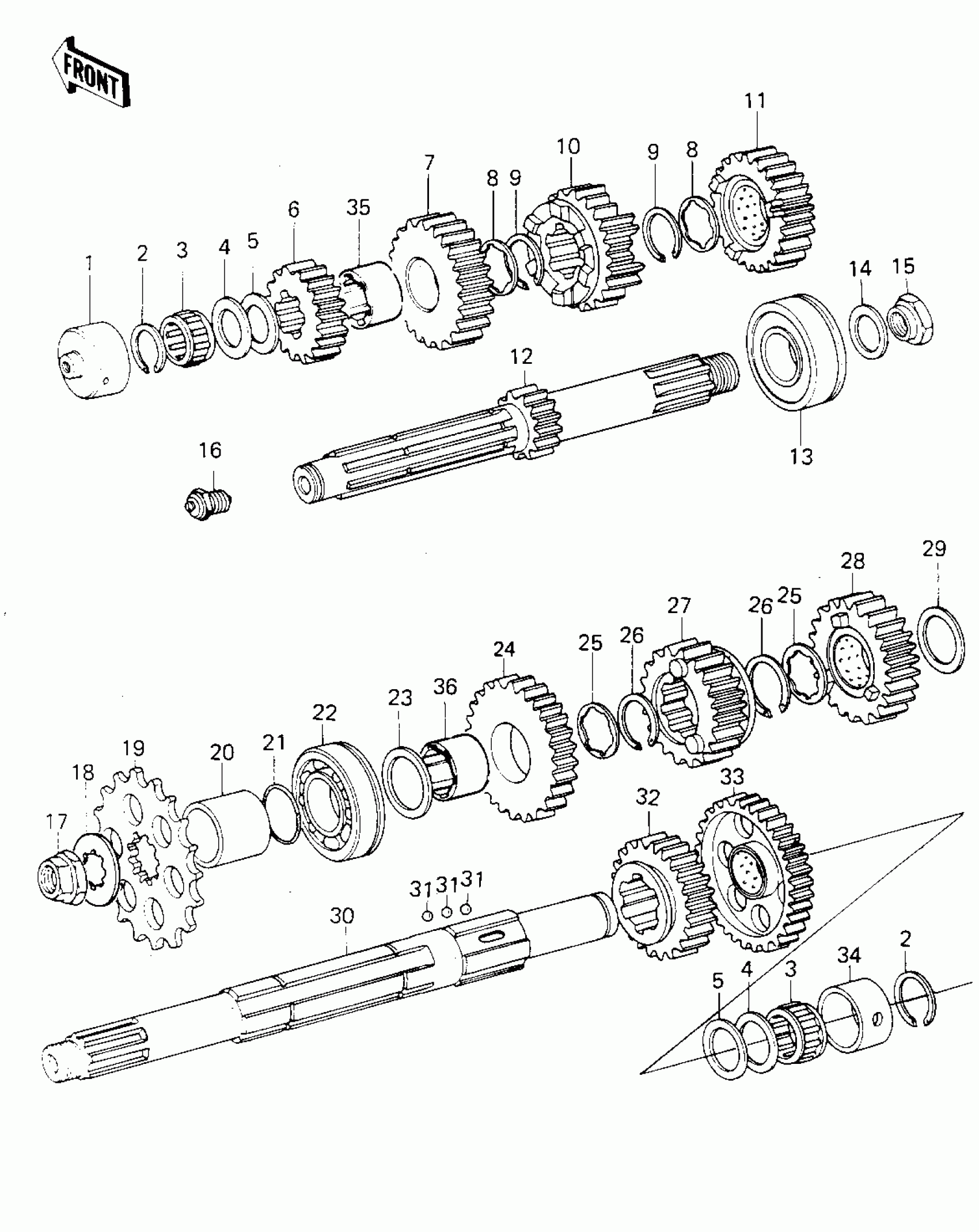

Kawasaki Classic TRANSMISSION Diagram

#

Description
Price

1

BUSH,DRIVE SHAFT

92028-122

Unavailable

2

RING-SNAP,20X25.5X1.2

92033-025

$4.96

3

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

4

WASHER,22.3X35X1.6

92022-212

$9.91

4

WASHER,22.3X35X1.2

92022-213

$10.35

5

SPACER,22X35.5X1.0

92026-1020

$5.23

6

2ND GER,DRIVE SHAFT

13130-032

Unavailable

7

TOP GEAR,DRIVE SHAFT

13136-042

Unavailable

8

WASHER,TOOTHED,26X35.5X1.5

92022-1077

$11.07

9

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

10

3RD GEAR,DRIVE SHAFT

13132-030

Unavailable

11

4TH GEAR,DRIVE SHAFT

13134-016

Unavailable

12

SHAFT,DRIVE 12T

13127-042

Unavailable

13

BEARING-BALL,5305NSH2

92045-1028

$132.72

13

BEARING-BALL,5305NSH2

92045-1028

$132.72

14

WASHER

92125-002

Unavailable

15

NUT,20MM

92015-1555

$13.08

16

SWITCH-COMP

13151-5003

Unavailable

17

NUT,20MM

92015-1254

$14.90

18

WASHER

92200-1065

$6.63

19

ENGINE SPROCKET 15T

13144-062

Unavailable

20

COLLAR,ENG SPROCKET

92027-288

$39.34

21

RING-O

92055-035

$5.00

22

BEARING,BL305 256217

92045-021

$184.13

23

WASHER,PLAIN,25MM

92022-210

Unavailable

24

2ND GEAR,OUTPUT SHAF

13131-038

Unavailable

25

WASHER,LOCK(O.D=40)

92022-1078

$4.36

26

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

27

TOP GEAR,OUTPUT SHAF

13129-1214

Unavailable

28

3RD GEAR,OUTPUT SHAF

13133-031

Unavailable

29

WASHER,PLAIN,30MM

92022-209

Unavailable

30

SHAFT,OUT PUT

13128-1013

Unavailable

31

BALL-STEEL,3/16

600A0600

$1.07

32

4TH GEAR,OUTPUT SHAF

13135-020

Unavailable

33

LOW GER,OUTPUT SHAFT

13129-046

Unavailable

34

BUSHING,OUTPUT SHAFT

92028-123

$54.72

35

BUSHING,TOP GEAR

92028-1124

$45.48

36

BUSHING,2ND GEAR

92028-1005

Unavailable
