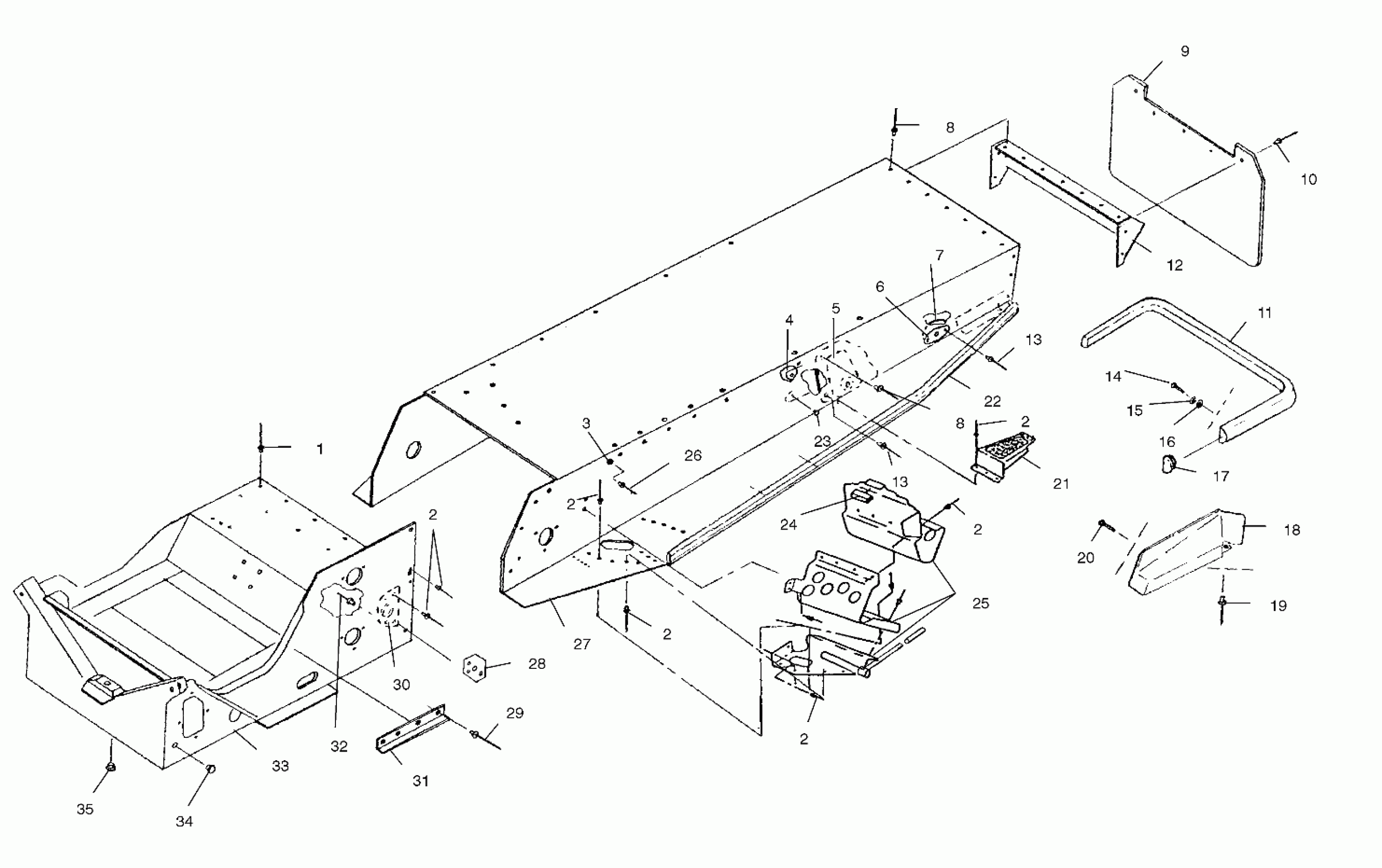

Polaris CLASSIC TOURING - S00ST4BS TUNNEL - S00ST4BS (4953945394a005) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

SNAP-MALE(10)

7080227

Unavailable

4

BRACE,LH,LOW.TUNNEL

5241485

$25.59

4

BRACE,RH,LOW.TUNNEL

5241486

$25.59

5

PAD,LH,RR SUSP,X12,BLK

1012439-067

$15.67

5

PAD,RH,RR SUSP,X12,BLK

1012440-067

$13.68

6

PLATE,TUNNEL SUPPORT

5211660-067

$3.17

7

BRKT,U-TENSIONER,BLK.

5211590-067

$7.38

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

9

FLAP,SNOW,13.74",BLK W/CHROME

5432149-1106

Unavailable

10

POP RIVET(50)

7621418

$1.49

11

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

12

PANEL,R.CLOSEOFF

5240968-067

$36.31

13

RIVET(50)

7661846

$1.99

13

RIVET(50)

7661846

$1.99

14

BOLT(10)

7512240

$3.99

15

LOCK WASHER(10)

7552801

$1.59

16

WASHER(10)

7558301

$1.49

17

CAP,BUMPER

5431995-070

Unavailable

18

SKIRT,SNO.TRNG,LH

5432131-070

$33.91

18

SKIRT,SNO.TRNG,RH

5432132-070

$30.95

19

RIVET(50)

7621472

$1.49

20

SCREW(10)

7512091

$3.99

21

PAD,FOOTREST GRIP

5830114

$35.24

21

FOOTREST,RH, W/GRIP PAD

1012543

$58.39

21

FOOTREST,LH, W/GRIP PAD

1012542

$66.39

22

TUNNEL,EDGE,LH,BLK Substituted by 5242206

5242206-067

$222.49

22

EDGE-TUNNEL,RH,BLK Substituted by 5242207

5242207-067

Unavailable

23

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

24

EXTRUSION,CLUTCHGUARD

5521238

$6.46

25

FOOTREST ASM,LH,BLK.

1012681

Unavailable

25

FOOTREST ASM,RH,BLK.

1012682

$95.24

26

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

27

TUNNEL HYBRED LIQ TRNG,BLK,ASM. (Incl. Heat Exchangers)

1013110-067

Unavailable

28

PLATE,F.SUSP,OUT,X-12,BLK

5211746-067

$13.39

29

RIVET(50)

7621452

$1.49

30

MOUNT,RH,F.SUSP.BLK.

1012270-067

$66.99

30

MOUNT,LH,F.SUSP.BLK.

1012269-067

$66.99

31

GUARD,ADAPTER GUIDE

5222857

$12.94

32

RIVET(50) Substituted by 7661130

7661643

Unavailable

33

BULKHEAD,STD,BLK

1012888-067

$649.99

34

PLUG, HOLE(10)

7080416

$5.65

35

PLUG-HOLE

7080398

$4.84
