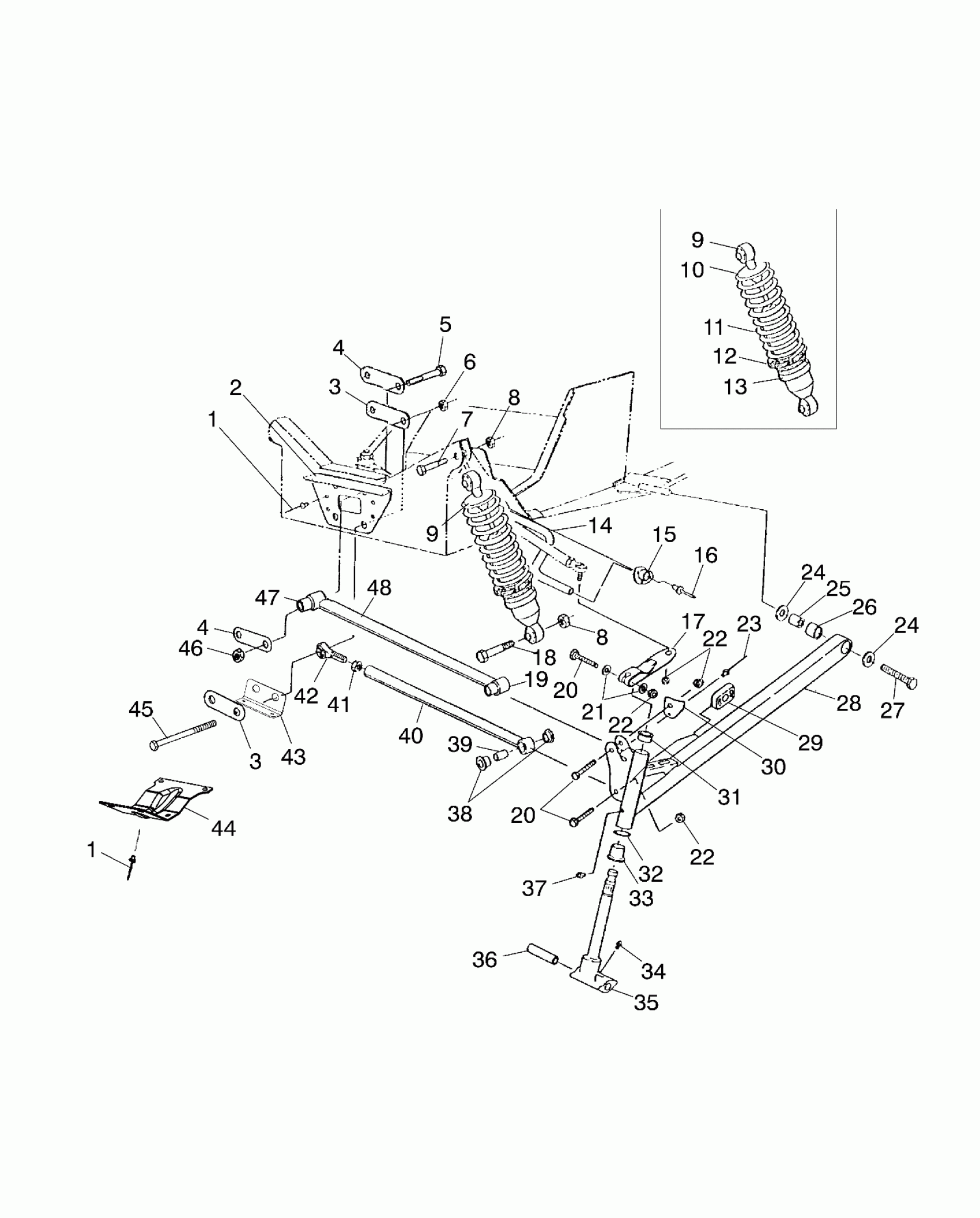

Polaris CLASSIC TOURING - S00ST4BS FRONT SUSPENSION - S00ST4BS (4953945394b003) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,FR.BULKHEAD

5242117

$16.47

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER TOP

5211344

$7.27

5

BOLT(10)

7512582

$8.79

6

NUT FLEX,(10)

7542703

Unavailable

7

BOLT(10)

7515415

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

SHOCK,GAS,IFS,SELECT

7041503

Unavailable

9

SHOCK,GAS,IFS,SELECT

7041503

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRING,COMPRESSION

7041551-067

$74.99

12

RING,SPRING PRELOAD ADJ.

5431734

$52.60

13

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

14

BAR,SWAY,5/8(X-12)BLK

5224748-067

Unavailable

15

BUSHING,SWAY BAR

5432038

$19.99

16

RIVET,(50)

7621477

$1.19

17

ARM,STRG,BLK

5241560-067

Unavailable

18

BOLT Substituted by 7515491

7515433

$1.59

19

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

20

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

20

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

21

WSHR-.813X.406X.105-Y

7555832

$2.39

22

NUT LOCK(10)

7542403

$3.99

22

NUT LOCK(10)

7542403

$3.99

22

NUT LOCK(10)

7542403

$3.99

23

RIVET(50) Substituted by 7661130

7661643

Unavailable

24

WASHER(10)

7555721

$1.49

24

WASHER(10)

7555721

$1.49

25

TUBE, BUSHING

5010310

$9.70

26

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

27

BOLT(10)

7512557

$7.60

28

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 25,26)

1822506

$344.99

28

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 25,26)

1822507

Unavailable

29

SLIDE,SWAYBAR,5/8

5432561

$24.27

30

STOP,LH,STRG,BLK.

5241569-067

$7.27

30

STOP,RH,STRG,BLK.

5241570-067

$7.27

31

BUSHING-FLANGE

3573909

$2.39

32

WASHER SPECIAL(10)

7556509

$1.59

33

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

34

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

35

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

36

BUSHING,PIVOT,(10)

5010158

$19.99

37

ZERK,FITTING,THREADED(10)

7080433

$1.49

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

40

ROD,RAD,LOWER,BLK.

1822383-067

Unavailable

41

NUT-JAM(10)

7542711

$2.39

42

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

43

BRKT,RAD.ROD,BTM.

5242578

$44.99

44

Brace, Pan, Lower (See Nosepan Pg. A9, Ref. 17)

-------

Unavailable

45

BOLT(10)

7512684

Unavailable

46

NUT, LOCK,(10)

7542503

$10.39

47

BUSHING,PIVOT,7/16

5411095

$15.99

48

ROD,RAD,UPPER,FIXED

1822510

$38.89
