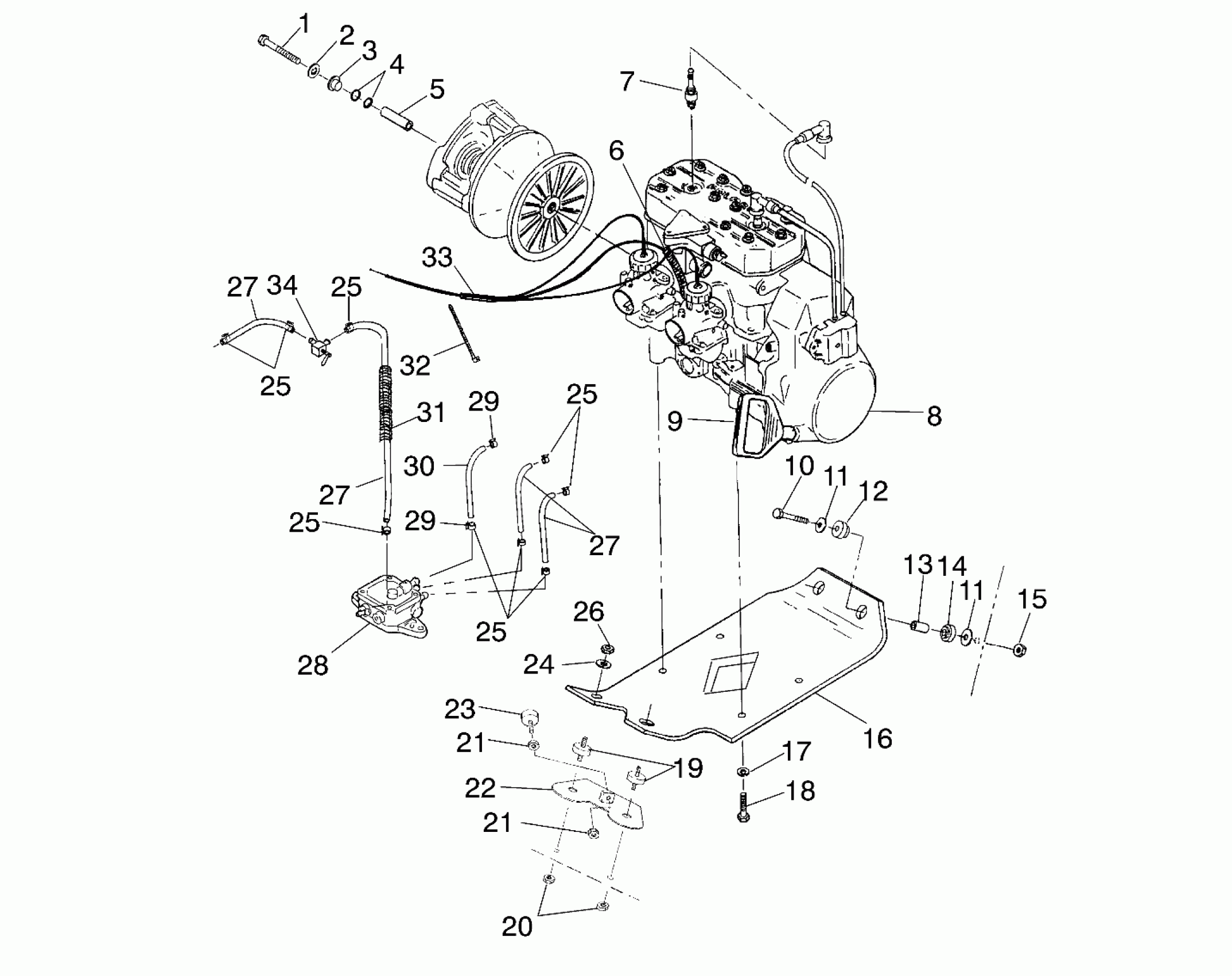

Polaris CLASSIC TOURING - S00ST4BS ENGINE MOUNTING - S00ST4BS (4953945394b009) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

CONDUIT,CONVOL(26 CM) Substituted by 4010051-30

4010051-26

Unavailable

7

SPARKPLUG, RN3C(8)

3070166

$3.99

8

ENGINE-EC50PL220,SB (EC50PL20) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for

3086508

Unavailable

9

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

10

SCREW(10)

7512530

$5.59

11

WASHER(10)

7555740

$1.59

11

WASHER(10)

7555740

$1.59

12

MOUNT-ENGINE RUBBER,TOP

5411685

$24.27

13

TUBE,SPACER

5333354

Unavailable

14

MOUNT-ENGINE RUBBER,BOTTOM

5411686

$28.32

15

NUT,FLANGE(10)

7542522

$5.59

16

PLATE,MTR.MT,LWT

5131772

$108.99

17

WASHER LOCK(10)

7553101

$3.99

18

BOLT(10)

7512539

$3.99

19

MOUNT,ENG.

3110061

$84.99

20

NUT,FLEXLOCK,(10)

7547008

$6.39

21

NUT,HEX(10)

7542414

$4.79

21

NUT,HEX(10)

7542414

$4.79

22

LIMITER,TORQUE,TWIN-Z

1012608

$35.51

23

STOP,TORQUE,COARSE,1.94 DIA

3110063

$29.99

24

WASHER(10)

7555893

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

NUT FLEX LOC,(10)

7542402

$6.39

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

28

Asm., Fuel Pump, Non-Asbestos (See Footnote) (See Fuel Pump Pg. C12, Ref. 2)

-------

Unavailable

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

CONDUIT,CONVOLUTED Substituted by 4010051-30

4010051

Unavailable

32

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

33

CABLE,THROTTLE,W/OIL

7080552

Unavailable

34

VALVE,FUEL SHUT-OFF

7052060

Unavailable
