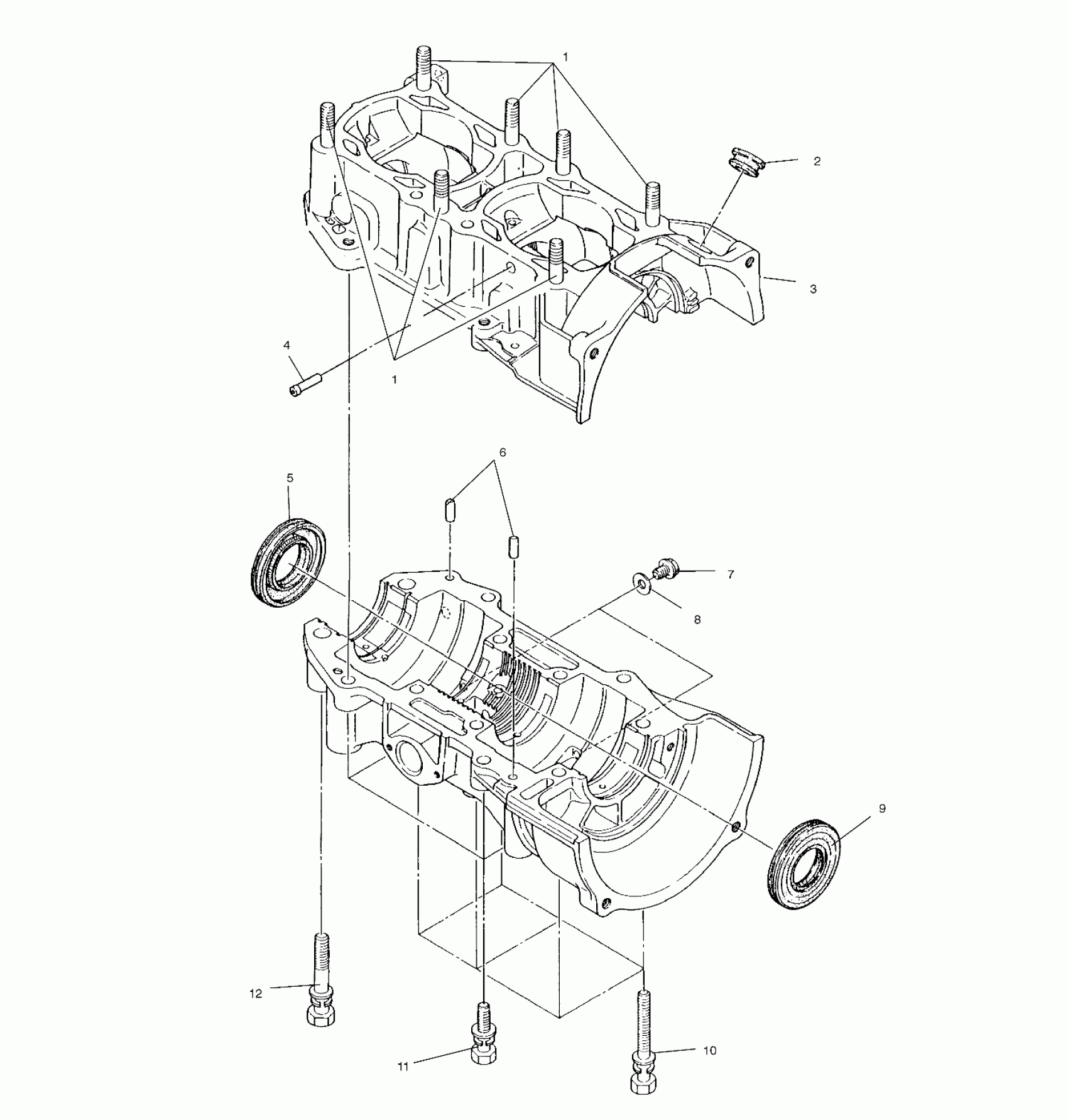

Polaris CLASSIC TOURING - S00ST4BS CRANKCASE - S00ST4BS (4953945394c008) Diagram

#

Description

Price

1

Stud

3084119

$9.59

1

Stud

3084119

$9.59

2

GROMMET

3082875

$7.99

3

CRANKCASE,ASM. (Incl. 1,4,6,10-12)

3086832

$854.99

4

PIPE, PULSE

3083798

$9.52

5

SEAL, OIL (PTO Side)

3085200

$36.41

6

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

9

SEAL,OIL (MAG Side)

3086833

$36.41

10

BOLT W/WASHER

3080739

$6.39

11

BOLT&WASHER

3083078

Unavailable

12

BOLT&WASHER ASM.

3084220

$8.79
