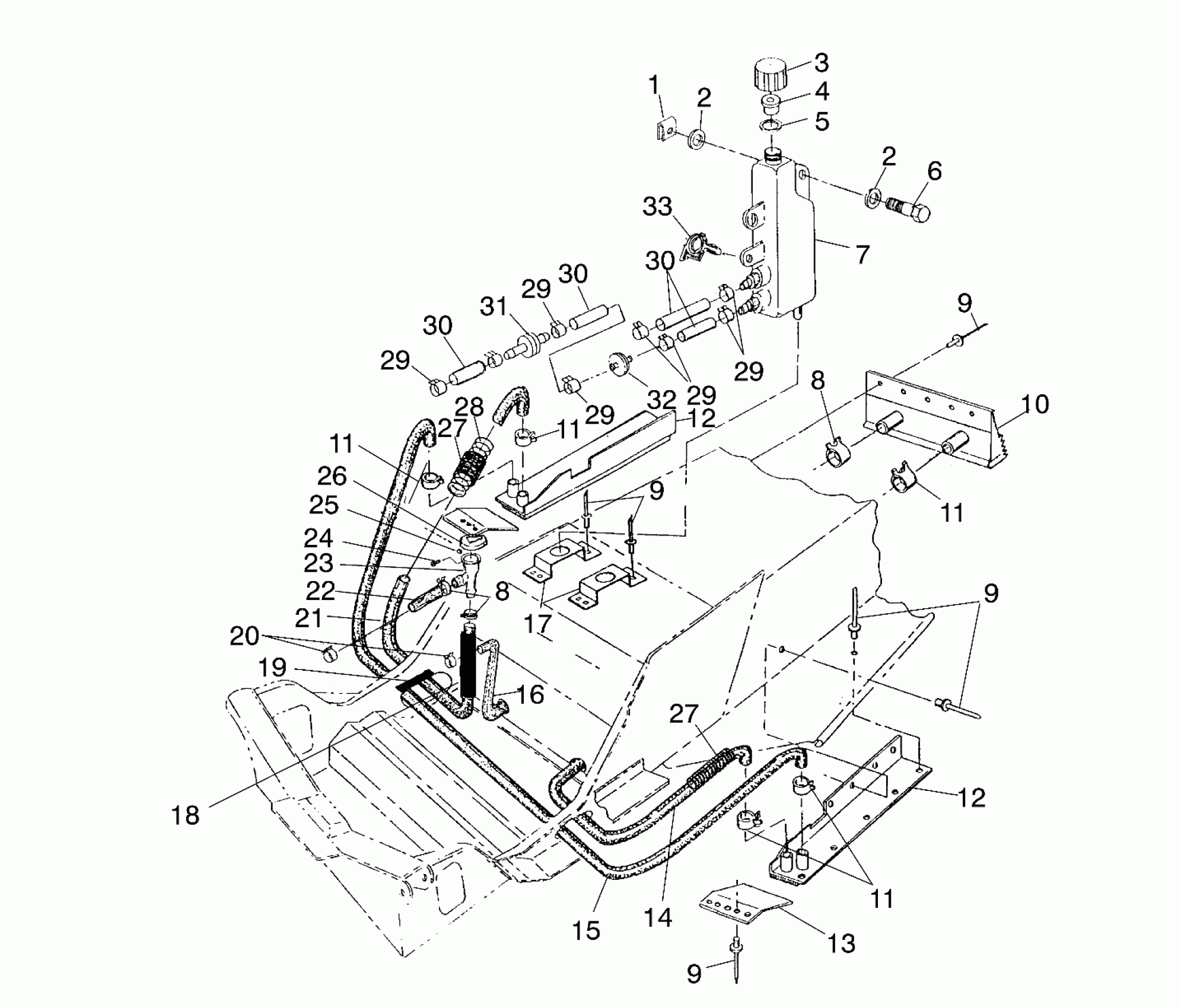

Polaris CLASSIC TOURING - S00ST4BS COOLING SYSTEM - S00ST4BS (4953945394b008) Diagram

#

Description
Price

1

Nut

7670096

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512276

$4.79

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

8

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

10

EXCHANGER WELD,CTR.

2511225

$204.76

11

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

11

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

11

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

11

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

12

COOLING WELD,LH SIDE

1240020

$134.92

12

COOLING WELD,RH SIDE

1240021

$167.60

12

COOLING WELD,LH SIDE

1240020

$134.92

12

COOLING WELD,RH SIDE

1240021

$167.60

13

GUARD, COOL.EXT.

5222863

$32.99

14

HOSE,LH,SIDE/CTR.

5411114

$17.43

15

HOSE,CROSSOVER

5410557

Unavailable

16

HOSE,PUMP/CTR.EXT.

5410743

Unavailable

17

BRKT,OILTANK,COINED

5241334

$9.70

18

TUBING,CONVOL,8"X1"

5411396

$9.70

19

EDGE TRIM - BLACK Substituted by 5521131

8360012

Unavailable

20

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

21

HOSE,RH,FILLER OUT,EXTRUSION

5411011

Unavailable

22

HOSE,ENG.OUT/FILLER

5411010

$24.27

23

FILLER-REMOTE COOLANT

5433364

$43.56

24

Screw

7517298

$4.79

25

NUT-LOCK(10)

7542122

$1.49

26

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

27

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

27

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

28

SPRING,HOSE RETAINER

7041079

$4.95

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

30

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

30

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

30

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

31

VALVE, CHECK

7052038

$10.51

32

FILTER,COOLANT,LGE.

2530024

Unavailable

33

CLIP, PLASTIC(10)

4020139

$4.79
