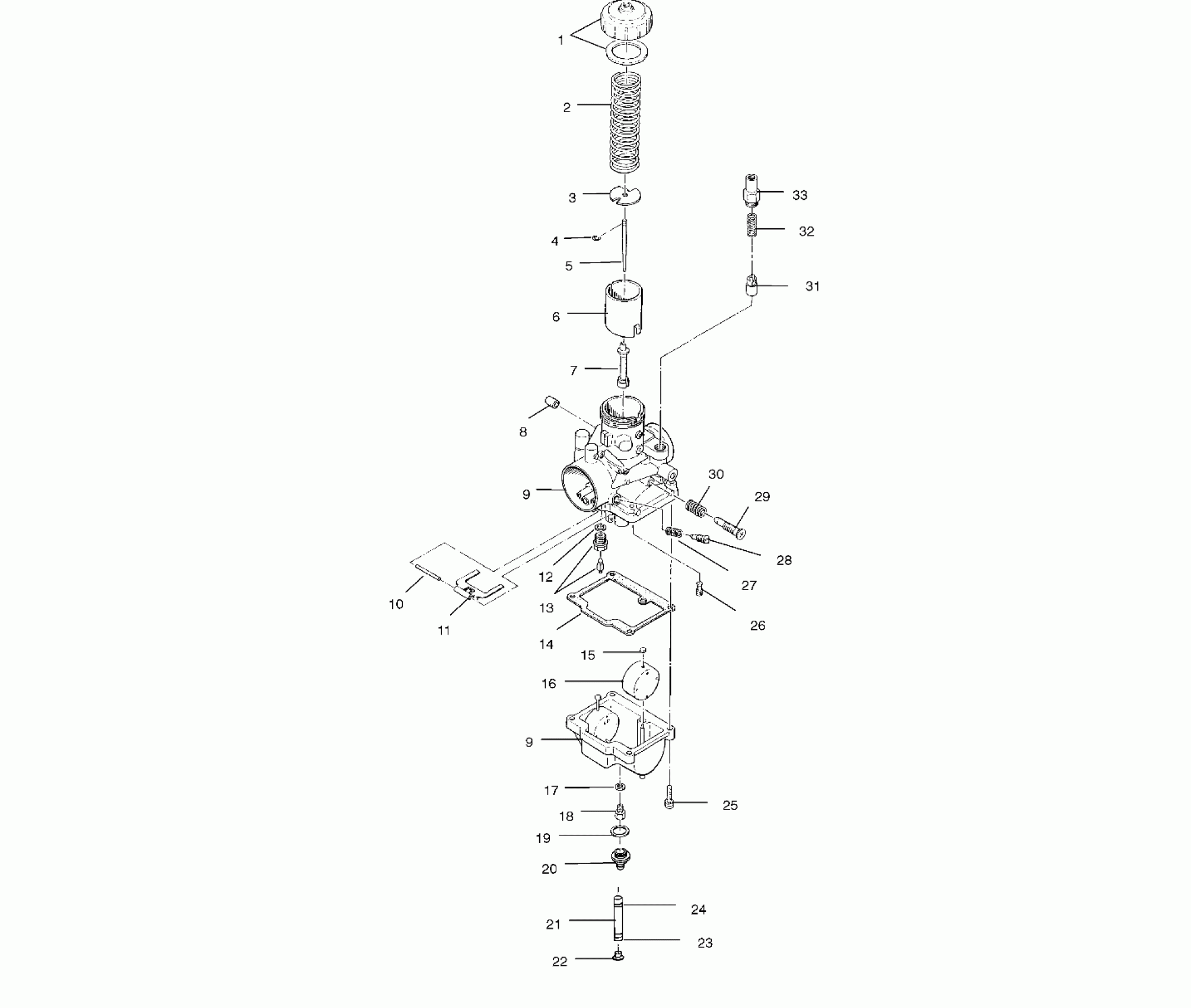

Polaris CLASSIC TOURING - S00ST4BS CARBURETOR - S00ST4BS (4953945394c013) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

E-RING,(10)

3130508

$6.46

5

NEEDLE,JET,(6EJ26) (6EJ3-3)

3130423

$20.22

6

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

7

JET,NEEDLE,(P-2) Substituted by 3130675 (480)

3130698

Unavailable

8

CAP

3130479

$14.56

9

CARBURETOR ASM (Incl. 1-20,25-33)

3130737

Unavailable

9

CARBURETOR ASM (Incl. 1-20,25-33)

3130737

Unavailable

10

PIN, FLOAT

3130361

$8.89

11

ARM,FLOAT

3130018

$24.27

12

PACKING(10)

3130017

$4.03

13

VALVE-NEEDLE (1.5)

3131146

$48.56

14

PACKING,FLOAT CHAMBER

3130020

$16.17

15

CAP,(10)

3130237

$4.03

16

FLOAT ASM.

3130430

$43.56

17

WASHER (10)

3130014

$1.59

18

JET,MAIN,#250(10) (#250)

3130637

$7.27

19

O RING

3130239

Unavailable

20

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

21

FUEL LINE, 5 FT.

8450045-153

$99.99

22

PLUG,TRAP

5431893

$12.94

23

CLAMP,HOSE(10)

7080544

Unavailable

24

CLAMP,SPRING,(10)

7080534

$1.59

25

SCREW & WASHER(10)

3130025

$3.19

26

JET,PILOT,#40(10) (#40)

3130067

$10.99

27

SPRING,AIR ADJUST

3130012

$8.89

28

SCREW,AIR

3130011

$19.99

29

SCREW,THROTTLE STOP

3130009

$19.99

30

SPRING,THROTTLE ADJ.

3130010

$8.89

31

PLUNGER ASM, STARTER

3130328

$32.37

32

SPRING,PLUNGER

3130006

$8.89

33

HOLDER,GUIDE

3130199

$28.32
