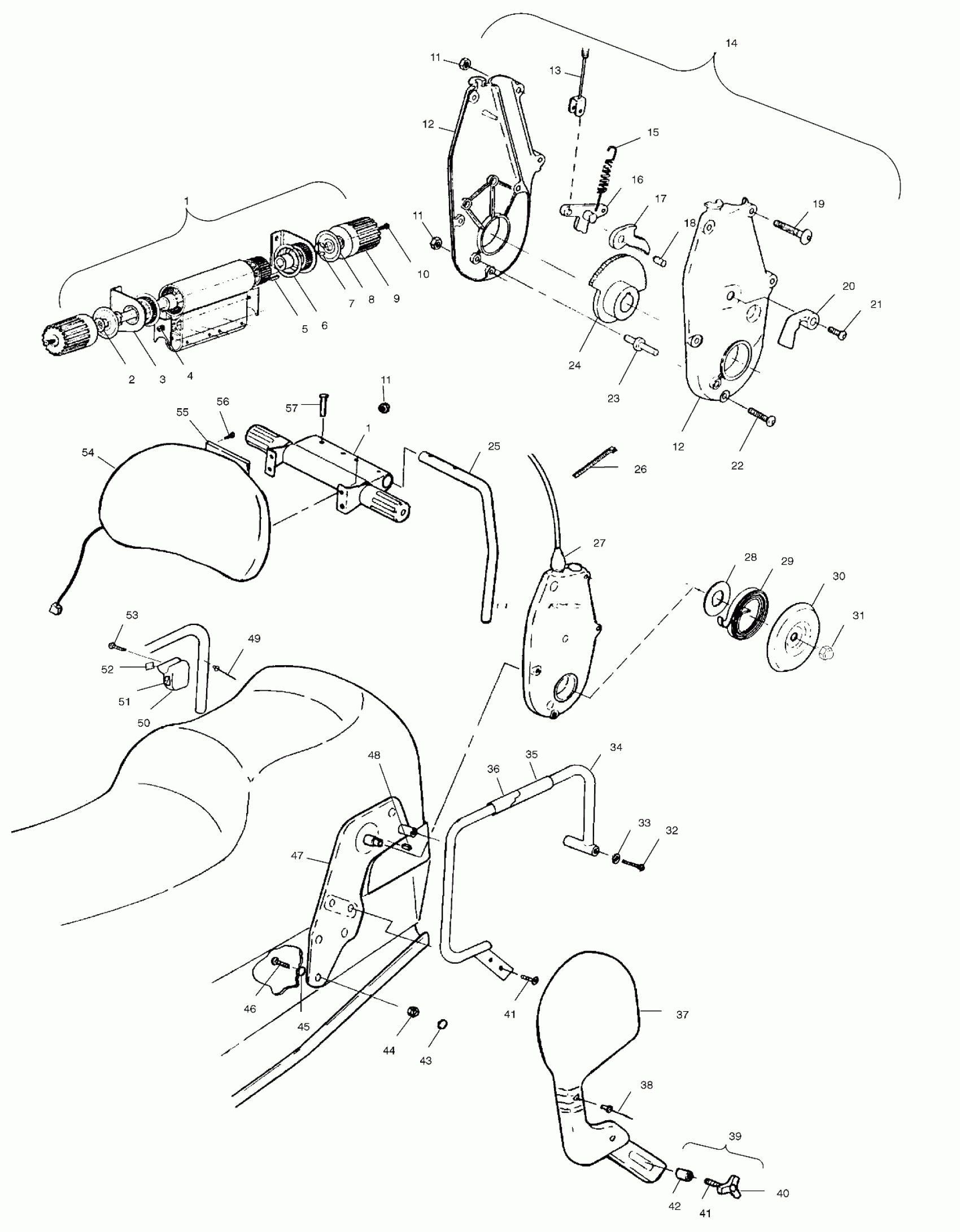

Polaris CLASSIC TOURING - S00ST4BS BACKREST - S00ST4BS (4953945394a007) Diagram

#

Description
Price

1

ADJ.ASM,B'REST CUSHION (Incl. 2-5,7,8,10)

1012534

Unavailable

1

ADJ.ASM,B'REST CUSHION (Incl. 2-5,7,8,10)

1012534

Unavailable

2

WASHER,WAVE(10)

7571635

$4.23

3

BRKT,MOUNTING

1012535

$37.11

4

SCREW(10)

7511866

$4.79

5

KEY,SQUARE(10)

7721118

$3.59

6

Rotor

5131207

$16.47

7

E RING(10)

7710901

$7.19

8

WASHER,(10)

7571634

$2.39

9

KNOB, ADJ.

5432112

Unavailable

10

SCREW,(10)

7512087

$1.83

11

NUT-LOCK(10)

7542122

$1.49

11

NUT-LOCK(10)

7542122

$1.49

11

NUT-LOCK(10)

7542122

$1.49

12

HSG,RH (ADJ.B'REST)

5131212

$62.39

12

HSG,LH,(ADJ. B'REST)

5131211

$62.39

12

HSG,RH (ADJ.B'REST)

5131212

$62.39

12

HSG,LH,(ADJ. B'REST)

5131211

$62.39

13

CABLE ASM,ACTUATOR

7080582

$87.19

14

ADJUSTER ASM,B'REST Substituted by 1013409 (Incl. 11-24)

1012536

Unavailable

15

SPRING,LOCKING

7041411

$25.59

16

PAWL ASM,LH,LOCK.,MASTER

1012320

$40.48

16

PAWL ASM,RH,LOCK,MASTER

1012321

Unavailable

17

SECTOR,ENGAGEMENT

5211610

Unavailable

18

PIN,PIVOT

5020806

Unavailable

19

BOLT ,(10)

7515171

Unavailable

20

LEVER,LOCKING.BLK. Substituted by 5631126-067

5630561-067

Unavailable

21

SCREW,(10)

7516915

$1.06

22

Bolt

7515170

$2.39

23

STUD-LIMITER

5020822

$66.39

24

GEAR,STATIONARY

1012537

Unavailable

25

TUBE,B'REST MT,BLK

5224761-067

$29.75

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

COVER,CABLE,BLK

5432259

Unavailable

28

WASHER,THRUST(10)

7555926

$1.99

29

SPRING,TORSION,PRELOAD

7041412

Unavailable

30

COVER,SPRING,1/2" ID,BLK

5241935-067

$4.95

31

NUT,(10)

7547015

$6.23

32

SCREW(10)

7512307

$3.99

33

WASHER(10)

7555734

$1.49

34

HANDLE,GRAB,LH,BLACK

1012657-067

$58.39

34

HANDLE,GRAB,RH,BLACK

1012658-067

$53.59

35

GRIP,HEATED PASS.

2460721

$113.99

36

TAPE,FOAM,.120X2.75X4,3M 4959

5811725

$14.79

37

DEFLECTOR,AIR,LH

5432078

$26.39

37

DEFLECTOR,AIR,RH

5432079

$27.19

38

RIVET,(50)

7621341

Unavailable

39

KNOB,GRAB HANDLE (Incl. 40-42)

1012385

Unavailable

40

Knob, Backrest

5630386-067

$20.22

41

BOLT(10) Substituted by 7515339

7515328

Unavailable

41

BOLT(10) Substituted by 7515339

7515328

Unavailable

42

SPACER,ADJ.KNOB

5432123

$5.83

43

CAPLUG, 3/4"(10)

7080592

Unavailable

44

NUT-5/16-18 NYLOK-Y

7542324

$1.49

45

PALNUT,(10)

7547030

$4.79

46

BOLT(10)

7512377

$4.79

47

MAINFRAME,LH,BLK

1012539-067

Unavailable

47

MAINFRAME,RH,BLK

1012540-067

Unavailable

48

KEY,HI PRO

7721125

$4.23

49

RIVET(50)

7621229

Unavailable

50

HOUSING-SWITCH

5432120

$22.23

51

HARNESS,PASS.GRP.HTR.SW.

2460537

$66.39

52

DECAL,HIGH/LOW/OFF

7075418

Unavailable

53

SCREW,TAPPING,(10)

7527815

$3.19

54

CUSHION,B'REST,W/LAMP

2682308

Unavailable

54

COVER,B'REST,W/LAMP

2682309

Unavailable

55

BULB TAILLIGHT(10)

4030015

$4.03

55

TAILLIGHT ASM,B'REST

2432040

Unavailable

56

SCREW(10)

7512054

$2.39

57

RIVET,INTERLOCK,B(50)

7661638

$1.49
