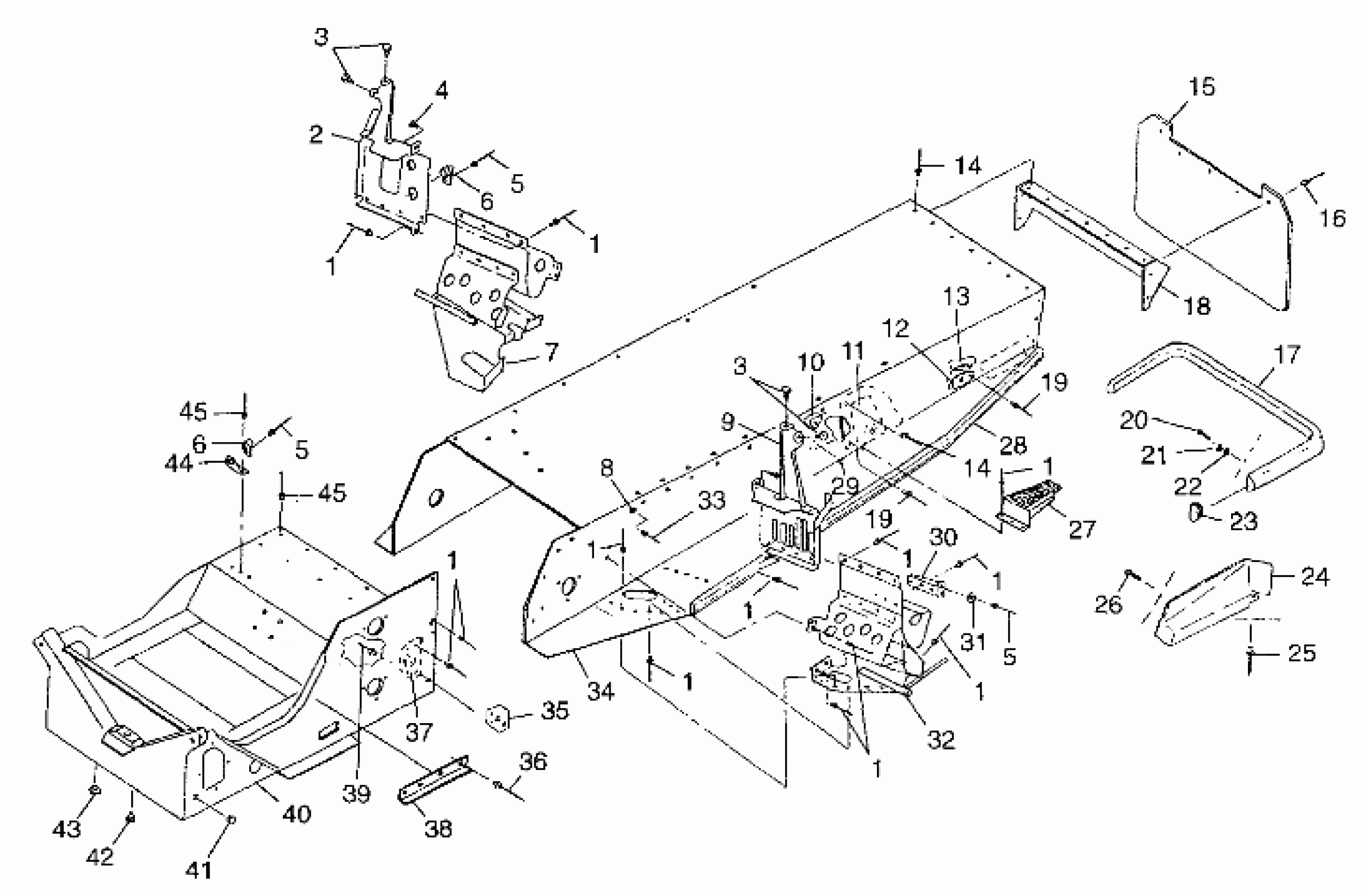

Polaris CLASSIC TOURING - 099ET4BS TUNNEL - 099ET4BS (4948314831a005) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

MT,CONSOLE,RH

1011952-067

$339.99

3

BUMPER,HOOD

5410768

$2.95

3

BUMPER,HOOD

5410768

$2.95

4

SCREW(10)

7512057

$2.38

5

RIVET,3/16X.402(50)

7621432

$1.49

5

RIVET,3/16X.402(50)

7621432

$1.49

5

RIVET,3/16X.402(50)

7621432

$1.49

6

GUIDE, RECOIL

5431385

$10.51

6

GUIDE, RECOIL

5431385

$10.51

7

FOOTREST ASM,RH

1012545

Unavailable

8

SNAP-MALE(10)

7080227

Unavailable

9

MT,CONSOLE,LH

1011951-067

$35.51

10

BRACE,LH,LOW.TUNNEL

5241485

$25.59

10

BRACE,RH,LOW.TUNNEL

5241486

$25.59

11

PAD,LH,RR SUSP,X12,BLK

1012439-067

$15.67

11

PAD,RH,RR SUSP,X12,BLK

1012440-067

$13.68

12

PLATE,TUNNEL SUPPORT

5211660-067

$3.17

13

BRKT,U-TENSIONER,BLK.

5211590-067

$7.38

14

RIVET,SEMI-TUBE,(50)

7661841

$1.49

14

RIVET,SEMI-TUBE,(50)

7661841

$1.49

15

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

16

POP RIVET(50)

7621418

$1.49

17

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

18

PANEL,R.CLOSEOFF

5240968-067

$36.31

19

RIVET(50)

7661846

$1.99

19

RIVET(50)

7661846

$1.99

20

SCREW(10)

7515159

$4.79

21

LOCK WASHER(10)

7552801

$1.59

22

WASHER(10)

7558301

$1.49

23

CAP,BUMPER

5431995-070

Unavailable

24

SKIRT,SNO.TRNG,LH

5432131-070

$33.91

24

SKIRT,SNO.TRNG,RH

5432132-070

$30.95

25

RIVET(50)

7621472

$1.49

26

SCREW(10)

7512091

$3.99

27

PAD,FOOTREST GRIP

5830114

$35.24

27

FOOTREST,RH, W/GRIP PAD

1012543

$58.39

27

FOOTREST,LH, W/GRIP PAD

1012542

$66.39

28

EDGE,LH,TUNNEL,BLK

5333529-067

Unavailable

28

EDGE,RH,TUNNEL,BLK

5333530-067

Unavailable

29

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

30

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

31

STOP,SIDEPANEL BUMPER

5411172

Unavailable

32

FOOTREST ASM,LH

1012544

Unavailable

33

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

34

TUNNEL ASM,LIQ,BLK,SKS,EVOL. Substituted by 1012944-067 (Incl. Heat Exchangers)

1012334-067

Unavailable

35

PLATE,F.SUSP,OUT,X-12,BLK

5211746-067

$13.39

36

RIVET(50)

7621452

$1.49

37

MOUNT,RH,F.SUSP.BLK.

1012270-067

$66.99

37

MOUNT,LH,F.SUSP.BLK.

1012269-067

$66.99

38

GUARD,ADAPTER GUIDE

5222857

$12.94

39

RIVET(50) Substituted by 7661130

7661643

Unavailable

40

BULKHEAD ASM,LIQ,BLK.

1012652-067

$436.51

41

PLUG, HOLE(10)

7080416

$5.65

42

PLUG-HOLE

7080398

$4.84

43

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

44

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

45

RIVET-3/16-.090-.290

7661637

$1.49

45

RIVET-3/16-.090-.290

7661637

$1.49
