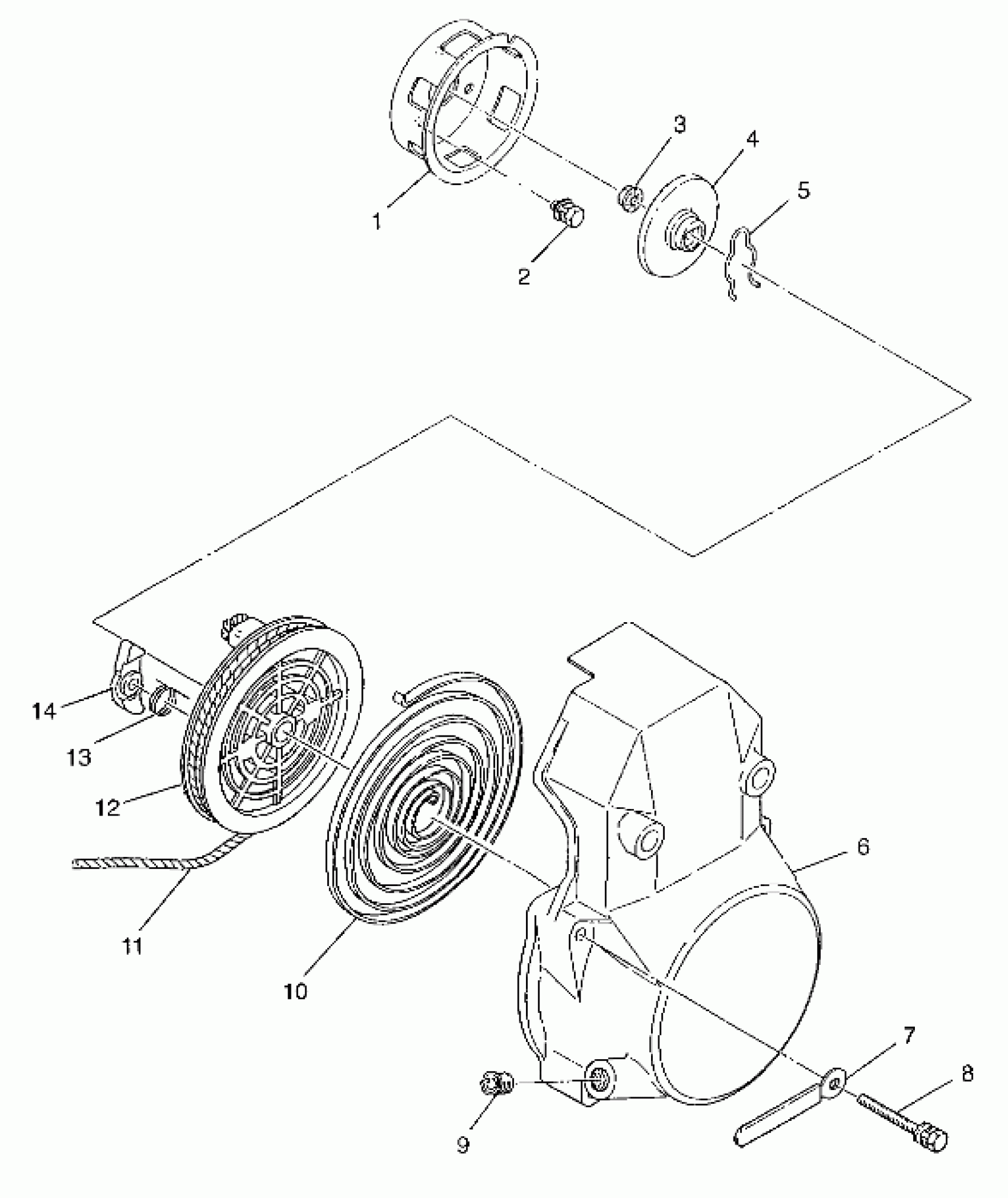

Polaris CLASSIC TOURING - 099ET4BS RECOIL STARTER - 099ET4BS (4948314831d003) Diagram

#

Description
Price

1

Pulley, Starting

3083312

$36.41

2

BOLT&WASHER ASM.

3084224

Unavailable

3

NUT, FLANGE ,(10)

3083381

$2.99

4

Plate, Friction

3083464

$28.32

5

Spring, Friction

3083379

$24.27

6

STARTER, RECOIL ASM. (Incl. 3-6,9-14)

3083461

Unavailable

6

CASE, STARTER

3083462

Unavailable

7

Clamp

3083384

Unavailable

8

BOLT&WASHER ASM.

3083382

$8.79

9

GUIDE-ROPE

3083107

Unavailable

10

Spring, Spiral

3083376

$179.11

11

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

12

REEL, REWIND

3083377

$56.65

13

Spring, Return

3083463

$4.03

14

Ratchet

3083378

$20.22
