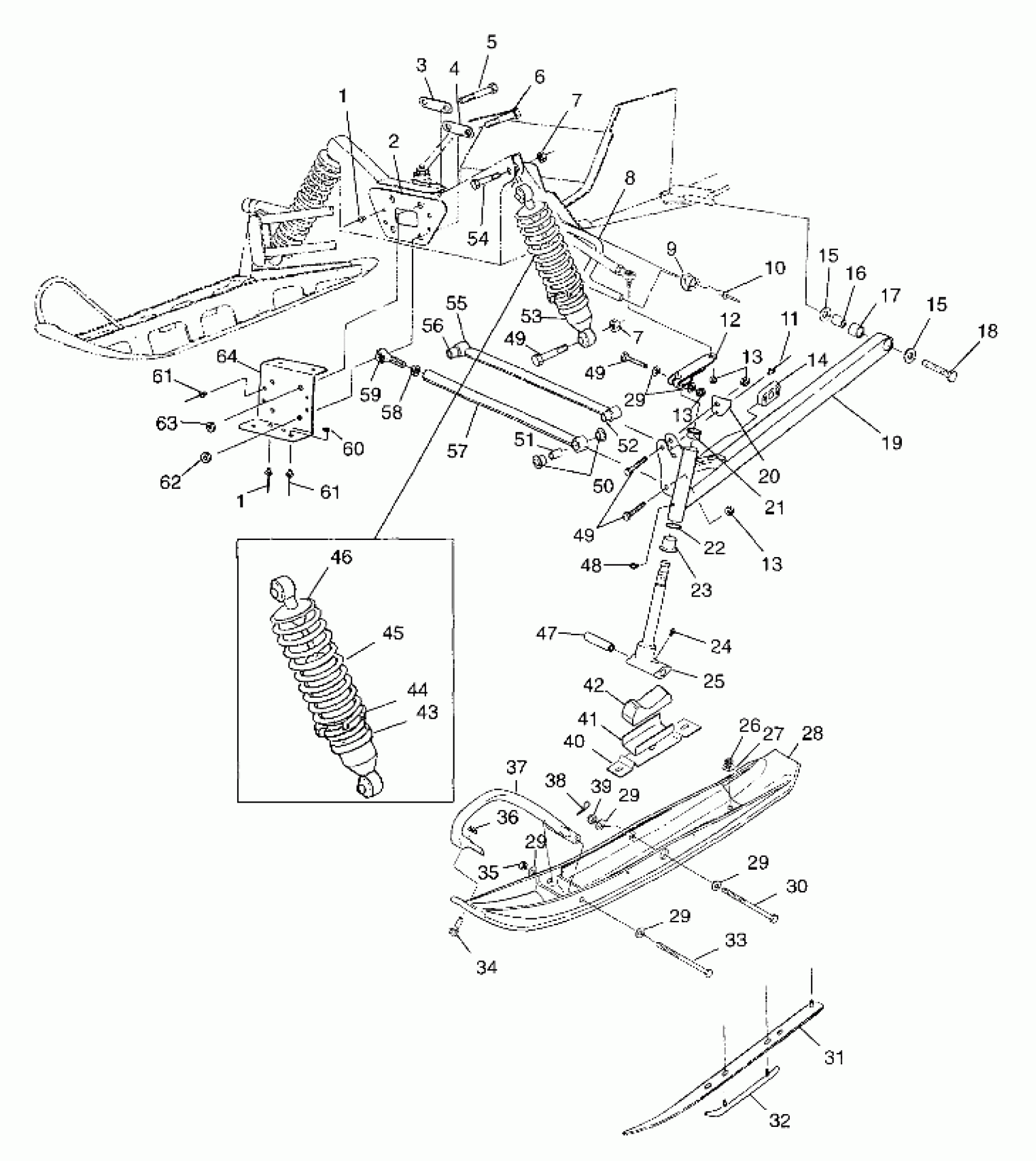

Polaris CLASSIC TOURING - 099ET4BS FRONT SUSPENSION and SKI - 099ET4BS (4948314831b003) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

3

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER BOTTOM

5211345

$12.99

5

BOLT(10)

7512582

$8.79

6

BOLT(10)

7512684

Unavailable

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BAR,SWAY,5/8(X-12)BLK

5224748-067

Unavailable

9

BUSHING,SWAY BAR

5432038

$19.99

10

RIVET(50)

7621433

$1.49

11

RIVET(50) Substituted by 7661130

7661643

Unavailable

12

ARM,STRG,BLK

5241560-067

Unavailable

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

14

SLIDE,SWAYBAR,5/8

5432561

$24.27

15

WASHER(10)

7555721

$1.49

15

WASHER(10)

7555721

$1.49

16

TUBE, BUSHING

5010310

$9.70

17

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

18

BOLT(10)

7512557

$7.60

19

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 16,17)

1822506

$344.99

19

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 16,17)

1822507

Unavailable

20

STOP,LH,STRG,BLK.

5241569-067

$7.27

20

STOP,RH,STRG,BLK.

5241570-067

$7.27

21

BUSHING-FLANGE

3573909

$2.39

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

25

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

27

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

28

COMP.SKIBLANK,W/RK SDL,BLK

1820610-070

Unavailable

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

30

SCREW,(10)

7512596

$19.99

31

PLATE,SKAG,1.375 STUD,BLK

1012748-067

Unavailable

32

KIT,SKAG,EZ,3",COMP.SKI

2872018

Unavailable

33

BOLT(10)

7515514

$7.19

34

BOLT(10)

7515307

$3.99

35

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

36

NUT LOCK(10)

7542321

$1.49

37

TOE,PLASTIC SKI Substituted by 5432209-070

5432209

$40.46

38

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

39

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

40

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

41

RETAINER-SKI RUBBER Substituted by 5243824

5243127

$27.78

42

STOP,RUBBER

5411094

Unavailable

43

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

44

RING,SPRING PRELOAD ADJ.

5431734

$52.60

45

SPRING,COMPRESSION

7041551-067

$74.99

46

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

47

BUSHING,PIVOT,(10)

5010158

$19.99

48

ZERK,FITTING,THREADED(10)

7080433

$1.49

49

BOLT Substituted by 7515491

7515433

$1.59

49

BOLT Substituted by 7515491

7515433

$1.59

49

BOLT Substituted by 7515491

7515433

$1.59

50

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

51

BUSHING-RADIUS ROD,(10)

5010127

$7.99

52

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

53

SHOCK,GAS,IFS,SELECT

7041503

Unavailable

54

BOLT(10)

7515415

$1.49

55

ROD,RAD,UPPER,FIXED

1822510

$38.89

56

BUSHING,PIVOT,7/16

5411095

$15.99

57

ROD,RAD,LOWER,BLK.

1822383-067

Unavailable

58

NUT-JAM(10)

7542711

$2.39

59

ROD END Substituted by 7061027

7060162

$48.56

60

BURR,RIVET(50)

7555904

$1.49

61

RIVET, BLIND(50)

7621467

$1.49

61

RIVET, BLIND(50)

7621467

$1.49

62

NUT FLEX,(10)

7542703

Unavailable

63

NUT, LOCK,(10)

7542503

$10.39

64

BRKT,PANSUPPORT,BLK.

5222866-067

Unavailable
