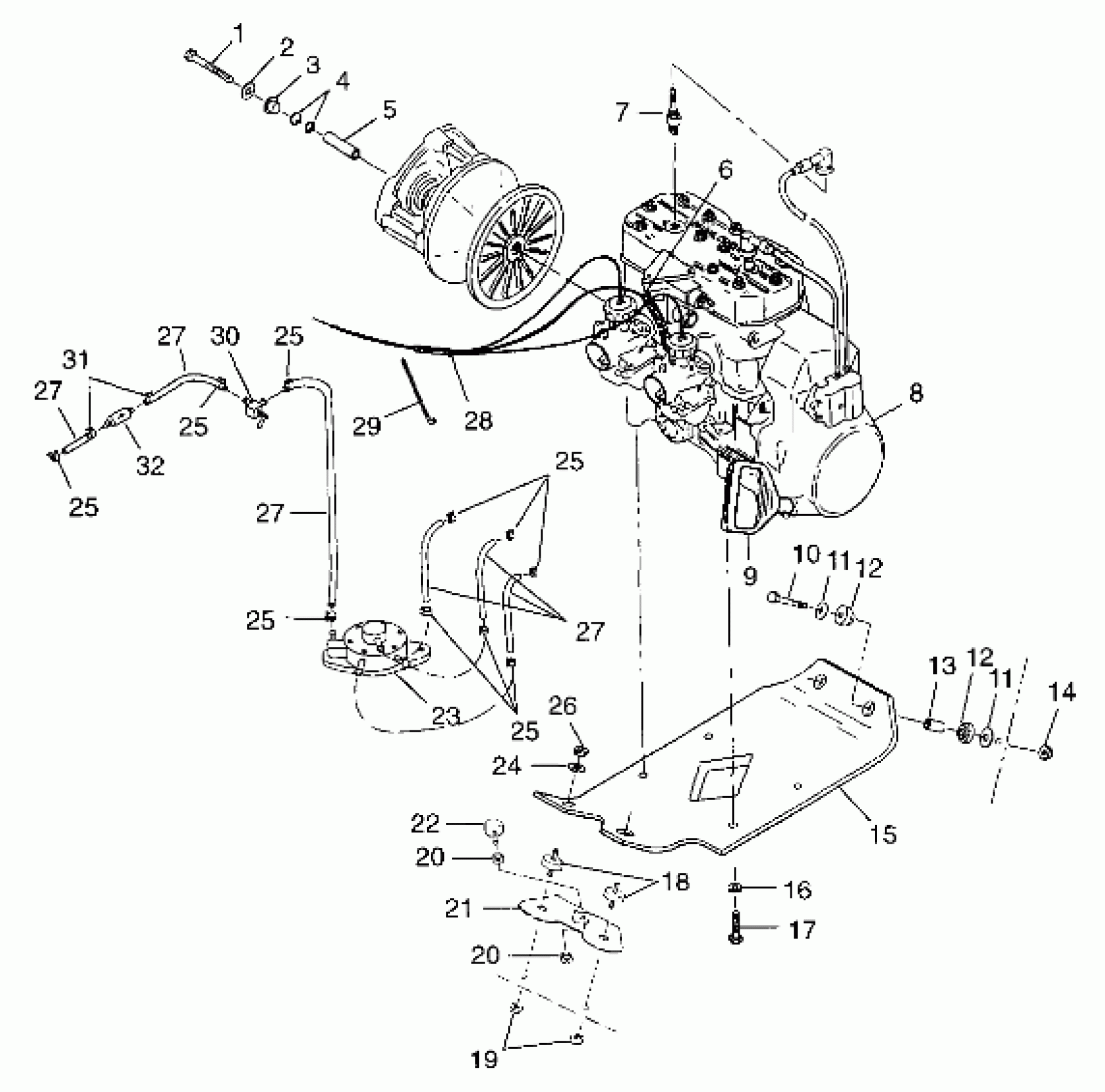

Polaris CLASSIC TOURING - 099ET4BS ENGINE MOUNTING - 099ET4BS (4948314831c004) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

CONDUIT,CONVOL(26 CM) Substituted by 4010051-30

4010051-26

Unavailable

7

SPARKPLUG, RN3C(8)

3070166

$3.99

8

ENG.(S.B.)EC50PL-16/19/20 [No Longer Available] (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

3085397

Unavailable

9

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

10

SCREW(10)

7512530

$5.59

11

WASHER(10)

7555740

$1.59

11

WASHER(10)

7555740

$1.59

12

MOUNT, ENGINE

5410390

Unavailable

12

MOUNT, ENGINE

5410390

Unavailable

13

TUBE,SPACER

5333354

Unavailable

14

NUT,FLANGE(10)

7542522

$5.59

15

PLATE,MTR.MT,LWT

5131772

$108.99

16

WASHER LOCK(10)

7553101

$3.99

17

BOLT(10)

7512539

$3.99

18

MOUNT,ENG.

3110061

$84.99

19

NUT FLEX LOC,(10)

7542402

$6.39

20

NUT,HEX(10)

7542414

$4.79

20

NUT,HEX(10)

7542414

$4.79

21

LIMITER,TORQUE,TWIN-Z

1012608

$35.51

22

STOP,TORQUE,COARSE,1.94 DIA

3110063

$29.99

23

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C13, Ref. 2)

-------

Unavailable

24

WASHER(10)

7555893

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

26

NUT,FLEXLOCK,(10)

7547008

$6.39

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

TUBING,CONVOLUTED

8360052-305

Unavailable

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

TUBING,CONVOLUTED

8360052-305

Unavailable

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

TUBING,CONVOLUTED

8360052-305

Unavailable

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

TUBING,CONVOLUTED

8360052-305

Unavailable

28

CABLE,THROTTLE,W/OIL

7080552

Unavailable

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

VALVE,FUEL SHUT-OFF

7052060

Unavailable

31

CLAMP,SPRING,(10)

7080534

$1.59

32

FILTER-FUEL,WHITE

2520156

Unavailable
