Description

Price

-

KIT,CLUTCH UPDATE (Incl. 7-9,12,18,19)

2200386

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-CLUTCH(GOLD)

7041148

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

SPACER(10) (.050,)

5210754

Unavailable

10

SPACER(10) (.025,)

5242981

Unavailable

10

SPACER(10) (.020,)

5210752

Unavailable

10

SPACER(10) (.032,)

5210753

Unavailable

11

WT/BUSH.ASM,10M-B(3)

1321529

$44.99

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

GEAR-RING

5131062

Unavailable

16

BOLT,RING GEAR(10)

7515351

$3.99

17

NUT FLEX LOC(10)

7541906

$3.19

18

PIN-ROLLER

5020422

$2.39

19

Kit - Shim, Drive Clutch

2200387

$24.27

20

CLUTCH,ES,BASIC#88(DRIVE) (Incl. All Less 5,11)

1321737

Unavailable

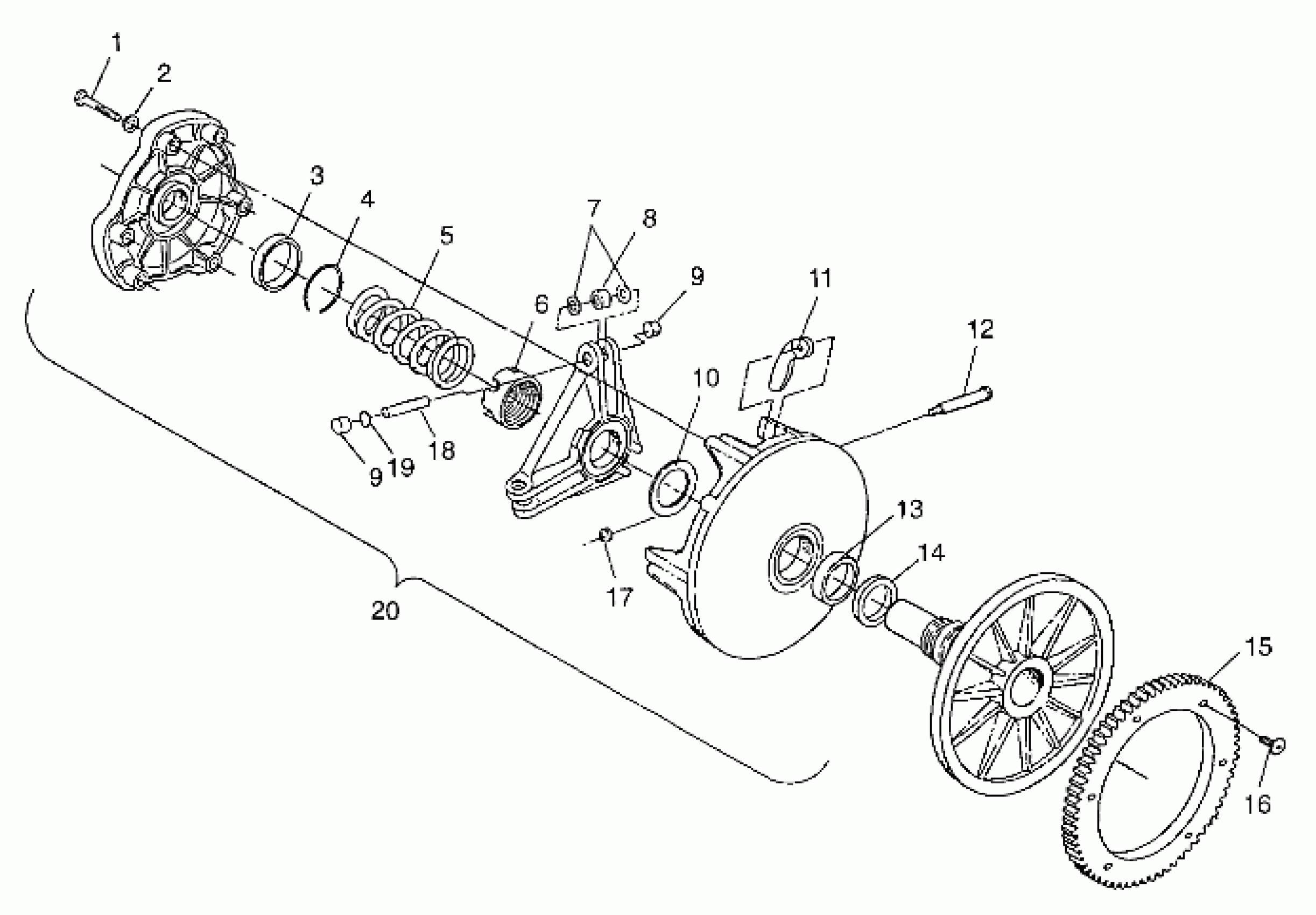

Polaris CLASSIC TOURING - 099ET4BS DRIVE CLUTCH - 099ET4BS (4948314831c002) Diagram

KIT,CLUTCH UPDATE (Incl. 7-9,12,18,19)

BOLT,(10)

LOCK WASHER(10)

COVER,BEARING,GARMAX

RING-RETAINING,COVER

SPRING-CLUTCH(GOLD)

NUT-JAM

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

SPACER(10) (.050,)

SPACER(10) (.025,)

SPACER(10) (.020,)

SPACER(10) (.032,)

WT/BUSH.ASM,10M-B(3)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

GEAR-RING

BOLT,RING GEAR(10)

NUT FLEX LOC(10)

PIN-ROLLER

Kit - Shim, Drive Clutch

CLUTCH,ES,BASIC#88(DRIVE) (Incl. All Less 5,11)
