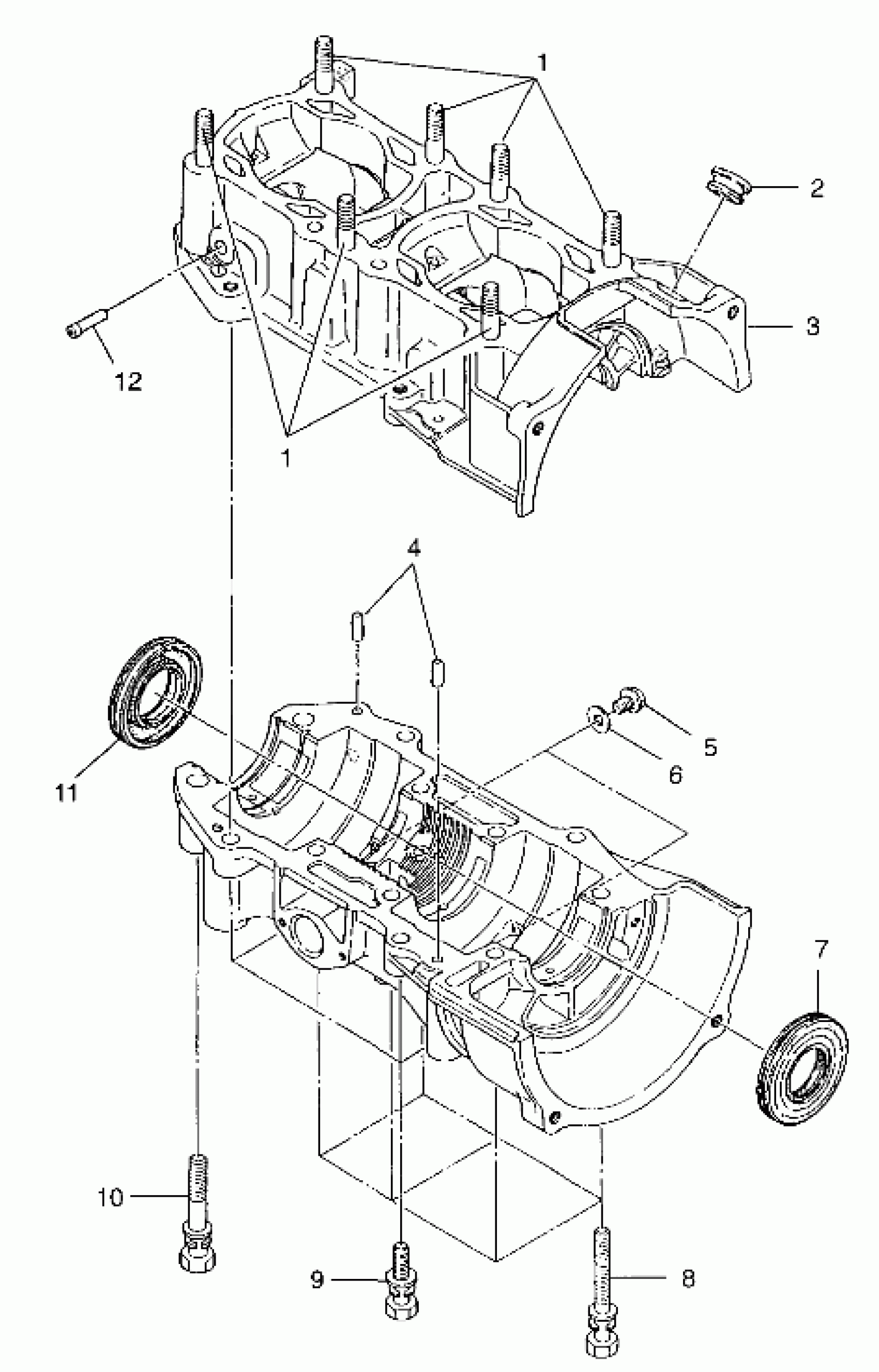

Polaris CLASSIC TOURING - 099ET4BS CRANKCASE - 099ET4BS (4948314831c009) Diagram

#

Description

Price

1

Stud

3084119

$9.59

1

Stud

3084119

$9.59

2

GROMMET

3082875

$7.99

3

CRANKCASE ASM. (Incl. 1,4,8-10,12)

3085199

Unavailable

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

5

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

SEAL, OIL(10) (MAG Side)

3083045

$36.41

8

BOLT W/WASHER

3080739

$6.39

9

BOLT&WASHER

3083078

Unavailable

10

BOLT&WASHER ASM.

3084220

$8.79

11

SEAL, OIL (PTO Side)

3085200

$36.41

12

PIPE, PULSE

3083798

$9.52
