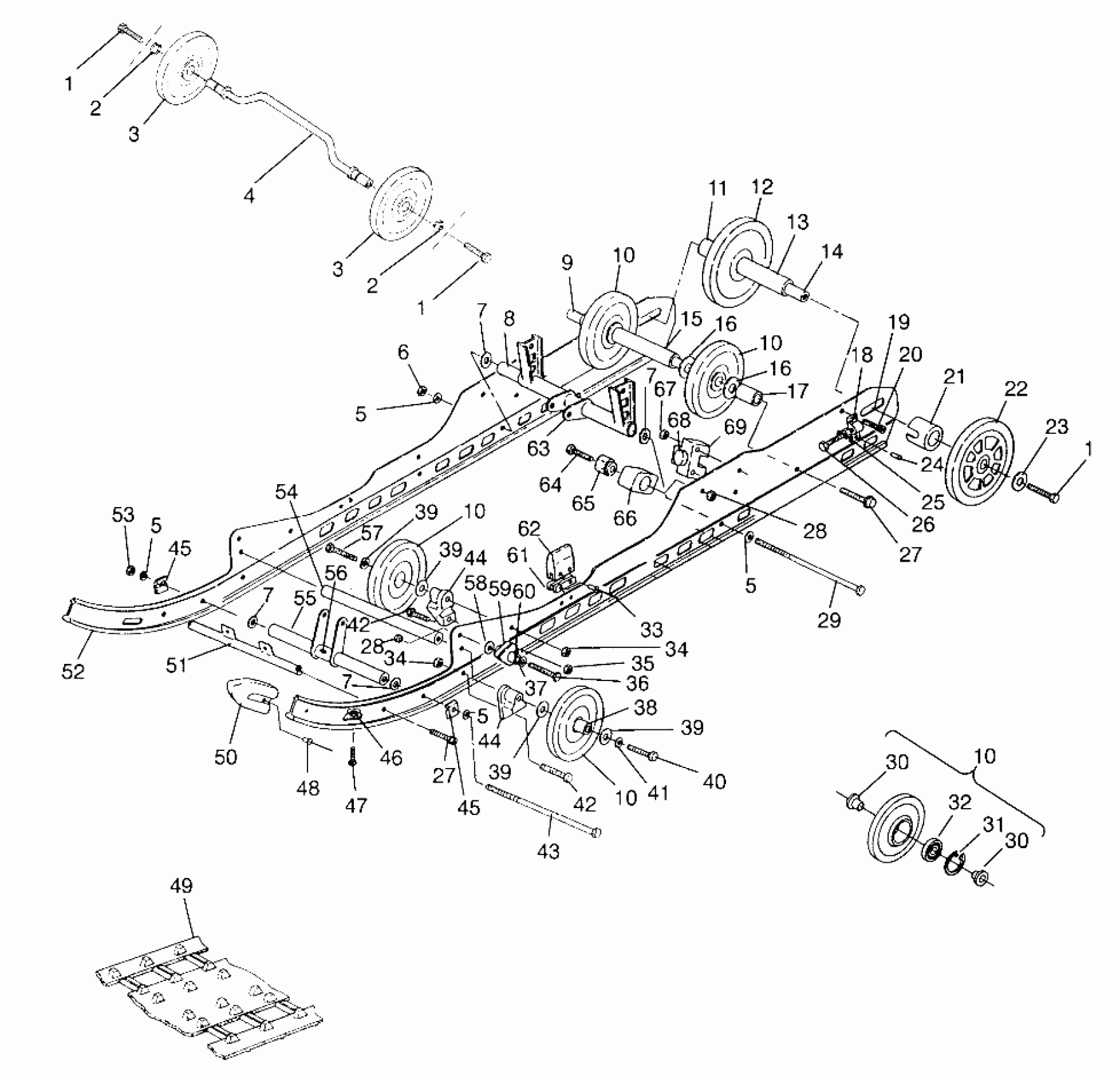

Polaris CLASSIC TOURING - 0963365 SUSPENSION CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362B011) Diagram

#

Description
Price

-

RAIL ASM,LH,(XTRA SKS) Substituted by 1541438 (Incl. 18, 48, 61, 62)

1540943

Unavailable

-

RAIL ASM,RH,(XTRA SKS) Substituted by 1541439 (Incl. 18, 48, 61, 62)

1540944

Unavailable

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

2

RING,RETAINING(10)

7710439

$3.99

2

RING,RETAINING(10)

7710439

$3.99

3

WHEEL, BOGIE (Incl. 31, 32)

1594067

$44.51

3

WHEEL, BOGIE (Incl. 31, 32)

1594067

$44.51

4

TENSIONER,SHAFT,BLK.

1541025-067

Unavailable

5

WASHER(10) Substituted by 7555806

7555720

$0.79

5

WASHER(10) Substituted by 7555806

7555720

$0.79

5

WASHER(10) Substituted by 7555806

7555720

$0.79

5

WASHER(10) Substituted by 7555806

7555720

$0.79

6

NUT LOCK(10)

7542411

$3.19

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

8

SHAFT

5333404

$24.27

9

SHAFT-PIVOT ARM Substituted by 5020724

5020415

$29.99

10

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

10

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

10

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

10

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

10

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

11

SPACER INNER IDLER

5010169

Unavailable

12

WHEEL, IDLER Substituted by 1594079-070 (Black)

1594021

Unavailable

13

SPACER,IDLER,R.INNER

5333086

Unavailable

14

SHAFT,IDLER

5020722

Unavailable

15

TUBE, SUSPENSION

5332783

Unavailable

16

MACHINERY BUSHING(10)

7556301

$3.19

16

MACHINERY BUSHING(10)

7556301

$3.19

17

SPACER, OUTER

5332784

Unavailable

18

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

19

DECAL,"PAT.PENDING"

7074922

Unavailable

20

SCREW(10)

7515156

$3.99

21

SPACER-IDLER-OUTER

5332641

Unavailable

22

WHEEL,IDLER,BLUE (Blue)

1594038

Unavailable

23

WASHER(10) Substituted by 7556130

7571629

Unavailable

24

RIVET,(50)

7621501

$2.39

25

NUT(10)

7542440

Unavailable

26

BOLT, ADJUSTER(10)

7515455

$29.99

27

BOLT

7515542

Unavailable

27

BOLT

7515542

Unavailable

28

NUT LOCK(10)

7542403

$3.99

28

NUT LOCK(10)

7542403

$3.99

29

SCREW Substituted by 7517353

7515549

Unavailable

30

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

30

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

31

RET.RING-TRUARC (1 per)

7718407

$4.79

32

BEARING (1 per)

3514303

$11.99

33

RIVET,(50)

7621488

$3.99

34

NUT, NYLOCK(10)

7542525

$4.79

34

NUT, NYLOCK(10)

7542525

$4.79

35

NUT-LOCK(10)

7542439

$1.49

36

BOLT(10)

7515538

$6.39

37

WASHER(10)

7555797

$3.99

38

SPACER, WHEEL

5333116

$7.99

39

WASHER, FLAT(10)

7555852

$2.39

39

WASHER, FLAT(10)

7555852

$2.39

39

WASHER, FLAT(10)

7555852

$2.39

39

WASHER, FLAT(10)

7555852

$2.39

40

BOLT(10)

7512508

$7.19

41

WASHER LOCK(10)

7553101

$3.99

42

BOLT(10)

7512404

$3.99

42

BOLT(10)

7512404

$3.99

43

BOLT (11")

7515546

Unavailable

44

SPACER

5630399

$11.99

44

SPACER

5630399

$11.99

45

BOSS,BOLT HEAD

5131112

$19.99

45

BOSS,BOLT HEAD

5131112

$19.99

46

NUT-LOCK(10)

7542122

$1.49

47

BOLT(10)

7515175

$3.99

48

RIVET(50)

7621435

$1.49

49

Clip, Slide

5241473

Unavailable

49

Clip, Guide

5241474

Unavailable

49

TRACK-133X.82,LIGHTNING Substituted by 5411091

5411064

Unavailable

50

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

51

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

52

SLIDER,BLACK(2)

5521320

Unavailable

53

NUT FLEX LOC,(10)

7542402

$6.39

54

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

55

ARM,SHOCK PIVOT

1540968-067

$49.59

56

ZERK,FITTING,THREADED(10)

7080433

$1.49

57

BOLT(10)

7512538

$6.39

58

WASHER(10)

7555743

Unavailable

59

BLOCK,SPRING SLIDER

5431924

$10.65

60

Bushing

5010332

$11.99

61

BRKT,BUMPER SUPPORT

5240946

Unavailable

62

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

63

ARM,R.PIVOT

1540971-067

Unavailable

64

BOLT(10)

7515537

$10.99

65

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

66

BUMPER,F.PIVOT ARM

5410925

$12.94

67

NUT, LOCK(10)

7542103

$5.59

68

BUMPER,R.PIVOT ARM

5410937

$5.75

69

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable
