STEERING CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362B005)

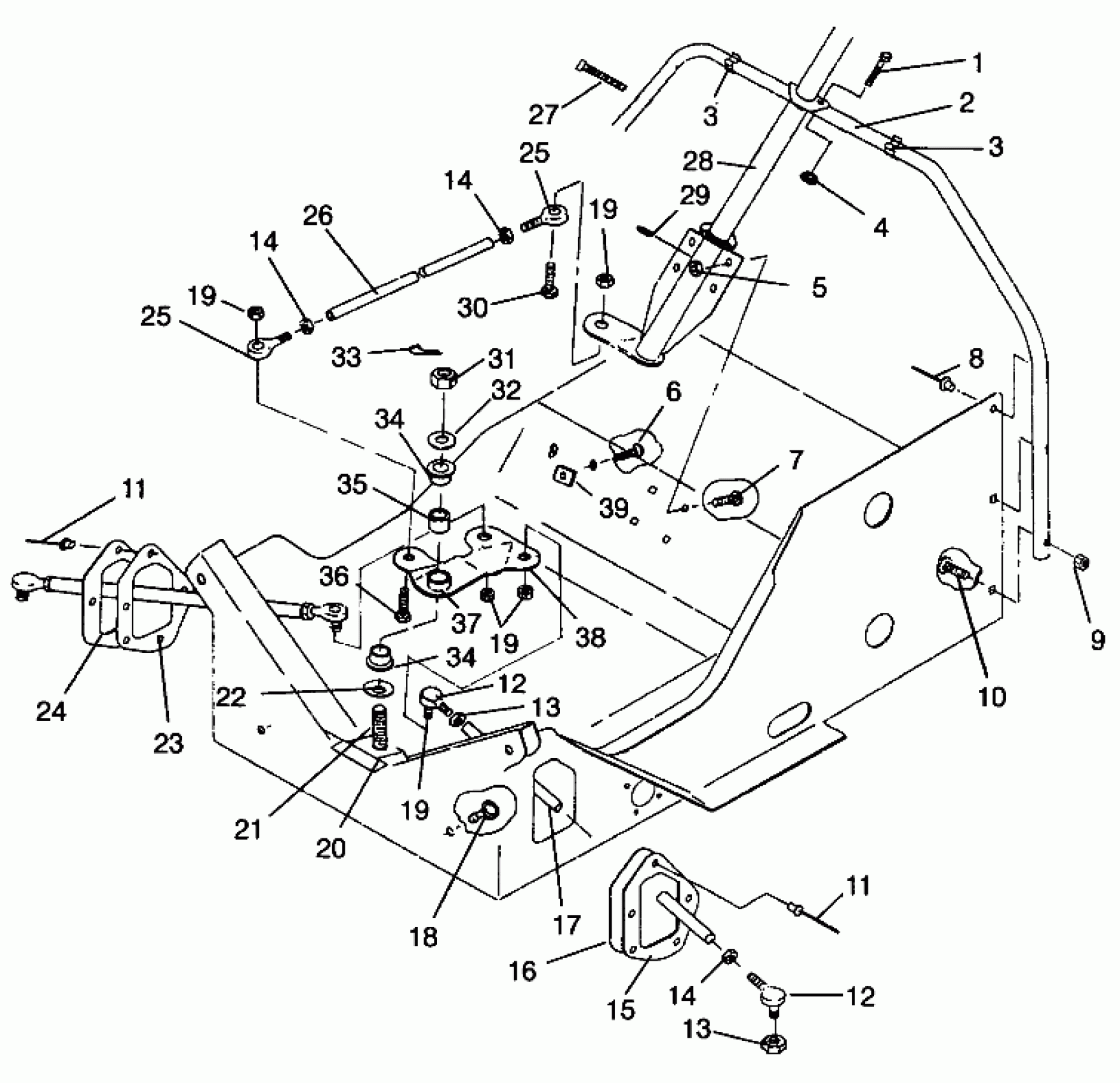

Polaris CLASSIC TOURING - 0963365 STEERING CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362B005) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STEERING
1012335-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
BOLT-CARRIAGE(10)
7512263
$3.99
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
RIVET-3/16-.090-.290
7661637
$1.49
9
NUT, LOCK(10)
7542103
$5.59
10
BOLT-CARRIAGE(10)
7512275
$3.99
11
RIVET(50)
7621340
$0.56
11
RIVET(50)
7621340
$0.56
12
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
12
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
12
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
12
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
15
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
16
BOOT,LH,TIE-ROD
5410867
Unavailable
17
ROD,TIE,BLK Substituted by 5020819-067
5020853-067
Unavailable
18
CLIP, PLASTIC(10)
4020139
$4.79
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
20
BLOCK,STRG,(CAST)
5630563
$32.37
21
BOLT(10)
7512682
Unavailable
22
WASHER,WAVE(10)
7555735
$3.99
23
BOOT,RH,TIE-ROD
5410868
$12.70
24
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
25
ROD END, RH.
7060165
$48.56
25
ROD END, LH.
7060164
$48.56
25
ROD END, RH.
7060165
$48.56
25
ROD END, LH.
7060164
$48.56
26
ROD-DRAG LINK
5332712
Unavailable
27
STRAP, BLK
7080272
Unavailable
28
POST,STEERING
1822257-067
Unavailable
29
FITTING,LUB/VEN(10)
7080561
$4.79
30
BOLT(10) Substituted by 7515492
7512410
Unavailable
31
NUT FLEX,(10)
7542703
Unavailable
32
WASHER(10)
7555721
$1.49
33
PIN COTTER(10)
7661203
$1.49
34
BUSHING
3563907
$3.99
34
BUSHING
3563907
$3.99
35
BUSHING
5010340
Unavailable
36
BOLT(10)
7512404
$3.99
37
ZERK,FITTING,THREADED(10)
7080433
$1.49
38
STRG.ASM,CTR. (Incl. 22, 34)
1822286
$29.60
39
SPEED NUT(10)
7670021
$6.99
