SEAT and GAS TANK CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963 (4933623362A009)

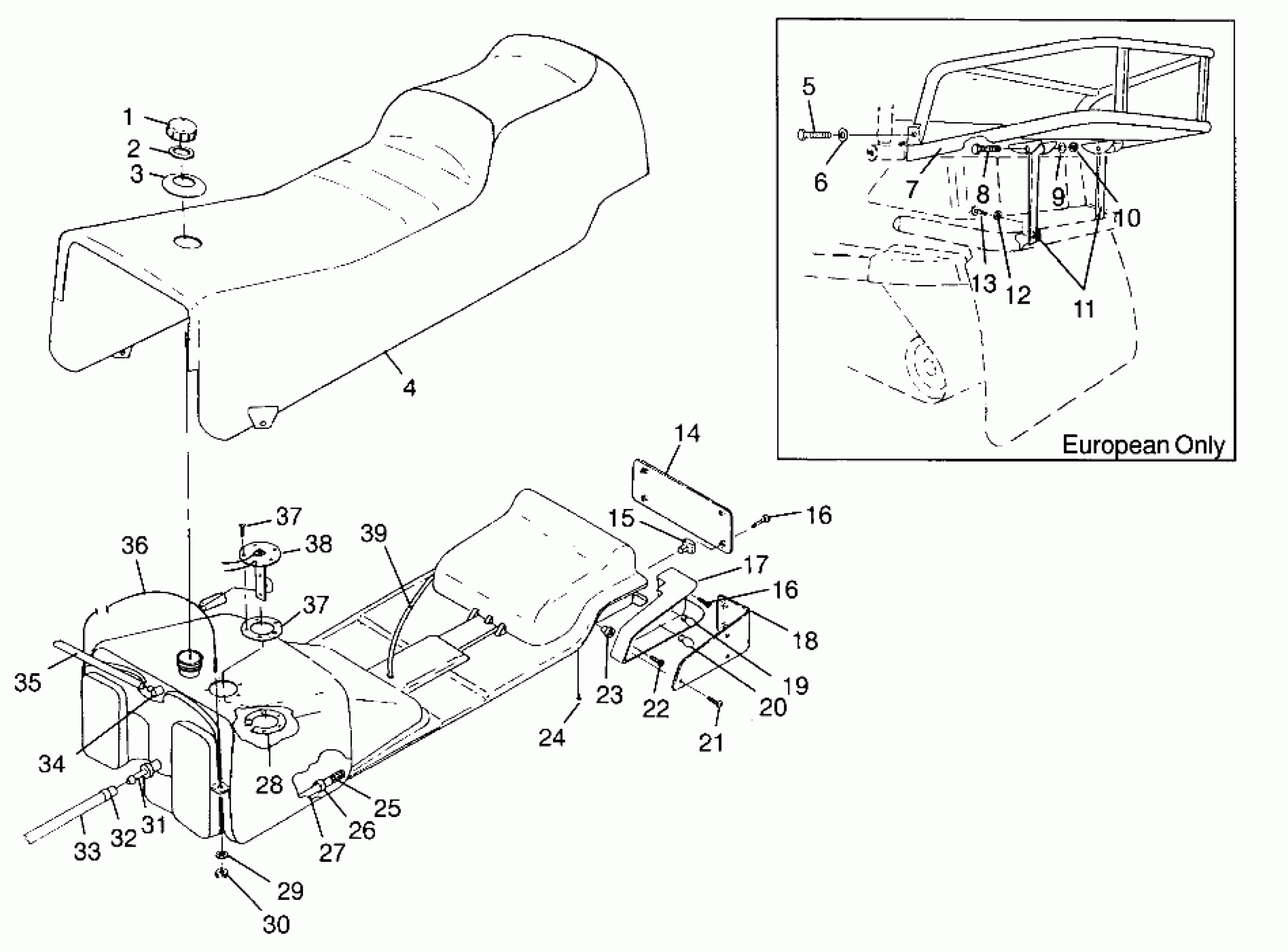

Polaris CLASSIC TOURING - 0963365 SEAT and GAS TANK CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963 (4933623362A009) Diagram
#
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
CUSHION,SEAT(TRG,EVOL.)W/SENDER (Incl. 4-13, 16-23, 27, 30)
2681840
Unavailable
4
COVER,SEAT(TRG.)
2681863
Unavailable
5
BOLT (Euro)
7512395
Unavailable
6
LOCK WASHER(10) (Euro)
7552901
$1.49
7
RACK, REAR (Euro)
1012393-067
Unavailable
8
BOLT(10) (Euro)
7512249
Unavailable
9
WASHER(10) (Euro)
7558301
$1.49
10
NUT HEX-LOCK(10) (Euro)
7542101
$3.99
11
SUPPORT,REAR RACK (Euro)
1012392-067
Unavailable
12
LOCK WASHER(10) (Euro)
7552801
$1.59
13
SCREW(10) (Euro)
7515181
$2.39
14
REFLECTOR,CTR,SEAT
5432008
Unavailable
15
NUT(10)
7546908
$2.63
16
SCREW,SELF-TAP(10)
7522004
Unavailable
16
SCREW,SELF-TAP(10)
7522004
Unavailable
17
HOUSING,LH,LENS
5432002
Unavailable
17
HOUSING,RH,LENS
5432003
Unavailable
18
LENS,RH
5432032
$44.51
18
LENS,LH
5432031
Unavailable
19
Bulb, Brakelight
4030045
Unavailable
20
BULB, T/L.
4032084
Unavailable
21
SCREW(10)
7512054
$2.39
22
SCREW(10)
7511954
$1.19
23
NUT, WELL(10)
7541901
$6.39
24
SCREW(10)
7512242
$2.39
25
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
26
RING, COMPRESSION(10)
7080402
$1.60
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
29
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
30
DESC NOT_AVAILABLE
7451925
Unavailable
31
FITTING - OUTLET(10)
7052023
$24.99
32
CLAMP, HOSE
7080490
Unavailable
33
FUEL LINE, 5 FT.
8450045-153
Unavailable
34
FITTING,(10)
7052077
$6.39
35
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
36
CABLE,TANK,RETENTION
7080559
Unavailable
37
HDWE.PKG,SEND.UNIT
2410012
Unavailable
37
HDWE.PKG,SEND.UNIT
2410012
Unavailable
38
DESC NOT_AVAILABLE
2380227
Unavailable
39
HARNESS,T/L,(TOUR)
2460524
$58.39
