OIL TANK / AIR BOX ASSEMBLY CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TO (4933623362C005)

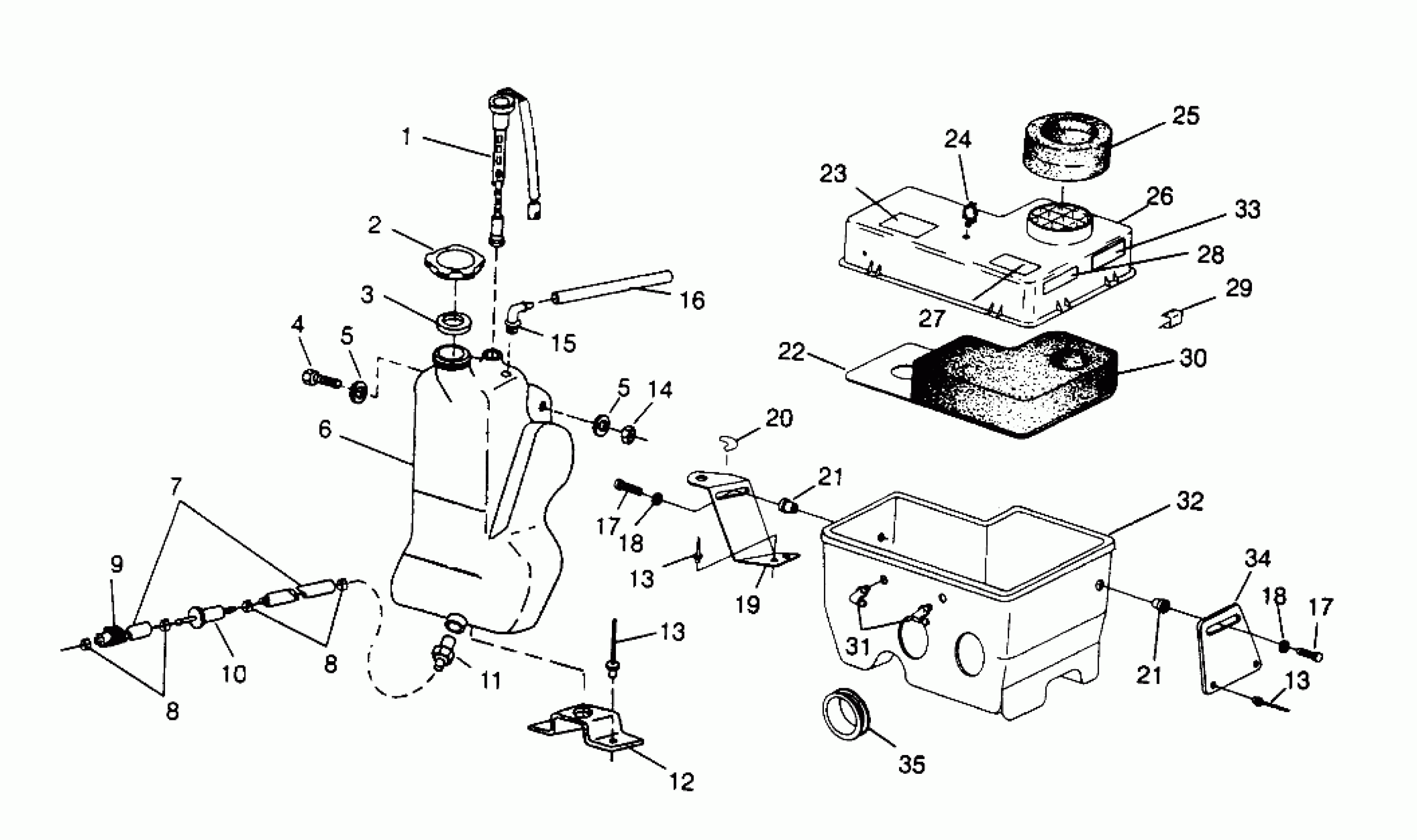

Polaris CLASSIC TOURING - 0963365 OIL TANK / AIR BOX ASSEMBLY CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TO (4933623362C005) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
Tank, Oil
5431437
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
8
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
8
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
9
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
10
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
11
FITTING, OUTLET
7052042
$8.99
12
BRKT,OILTANK,COINED
5241334
$9.70
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
20
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
PLATE,AIR SILENCER
5850075
$24.27
23
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
24
CLAMP,WIRE ROUTING(10)
7080409
$2.39
25
DUCT ASM,AIR
2620057
$40.46
26
SILENCER,AIR,UPPER
5431496
Unavailable
27
DECAL,CAUTION,AIRBOX
7075351
Unavailable
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
CLIP, AIR BOX,(10)
7670055
$7.99
30
BAFFLE ASM.
1253116
$59.99
31
FITTING,90 DEG,1/8,(10)
7052095
$4.79
32
SILENCER,INTAKE,DRILLED
5432135
Unavailable
33
DECAL, GREASING [No Longer Available]
7073426
$7.27
34
BRACKET, SILENCER
5211274
$9.70
35
BOOT
5410403
$12.99
