COOLING SYSTEM CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362B007)

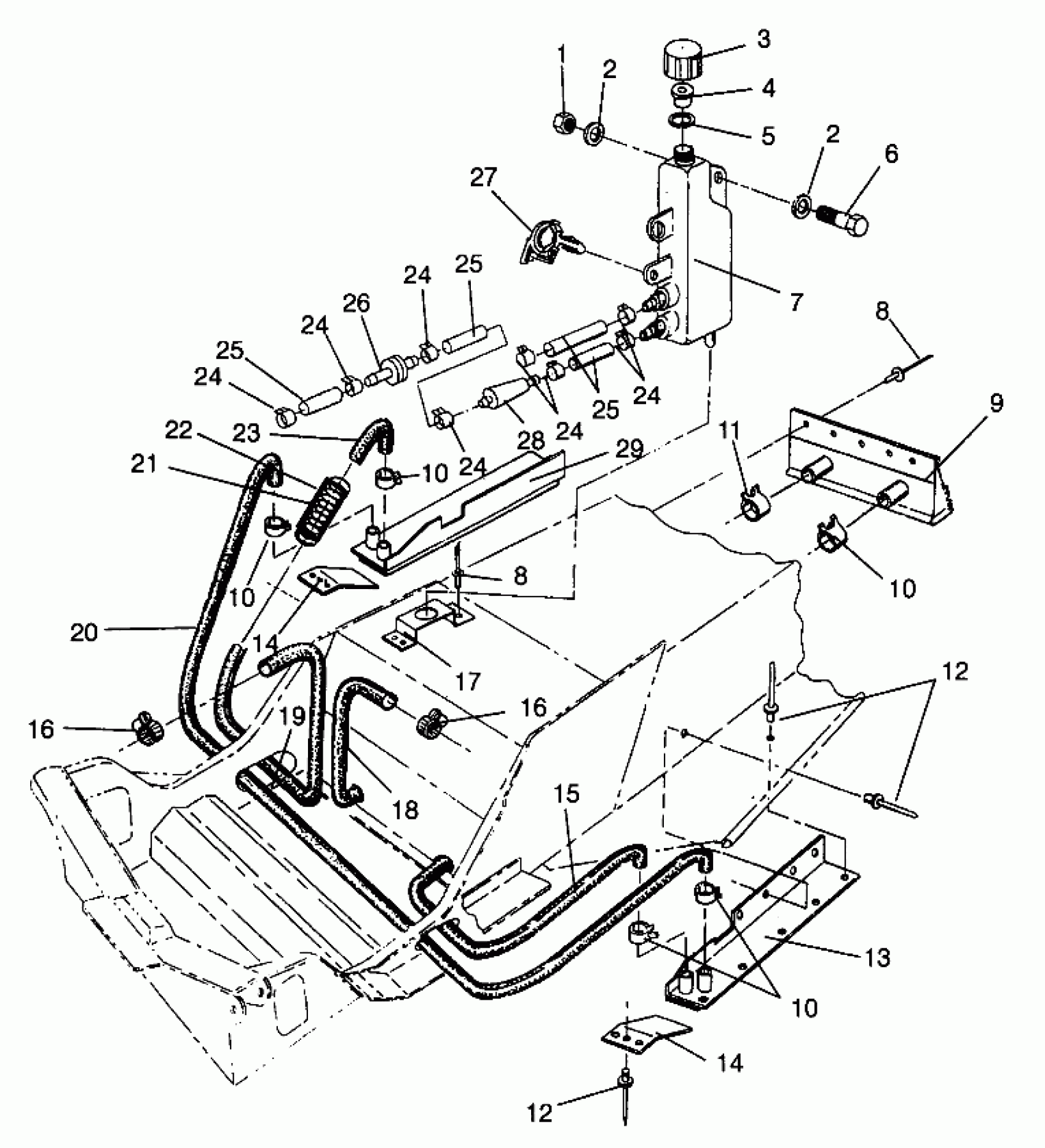

Polaris CLASSIC TOURING - 0963365 COOLING SYSTEM CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362B007) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLING WELD,LH SIDE
1240020
$134.92
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)
7080563
Unavailable
16
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)
7080563
Unavailable
17
BRKT,OILTANK,COINED
5241334
$9.70
18
HOSE,PUMP/CTR.EXT.
5410743
Unavailable
19
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
20
HOSE,CROSSOVER
5410557
Unavailable
21
SPRING,HOSE RETAINER
7041079
$4.95
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
HOSE,ENG/SIDE EXT.
5410738
Unavailable
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
26
VALVE, CHECK
7052038
$10.51
27
CLIP, PLASTIC(10)
4020139
$4.79
28
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
29
COOLING WELD,RH SIDE
1240021
$167.60
