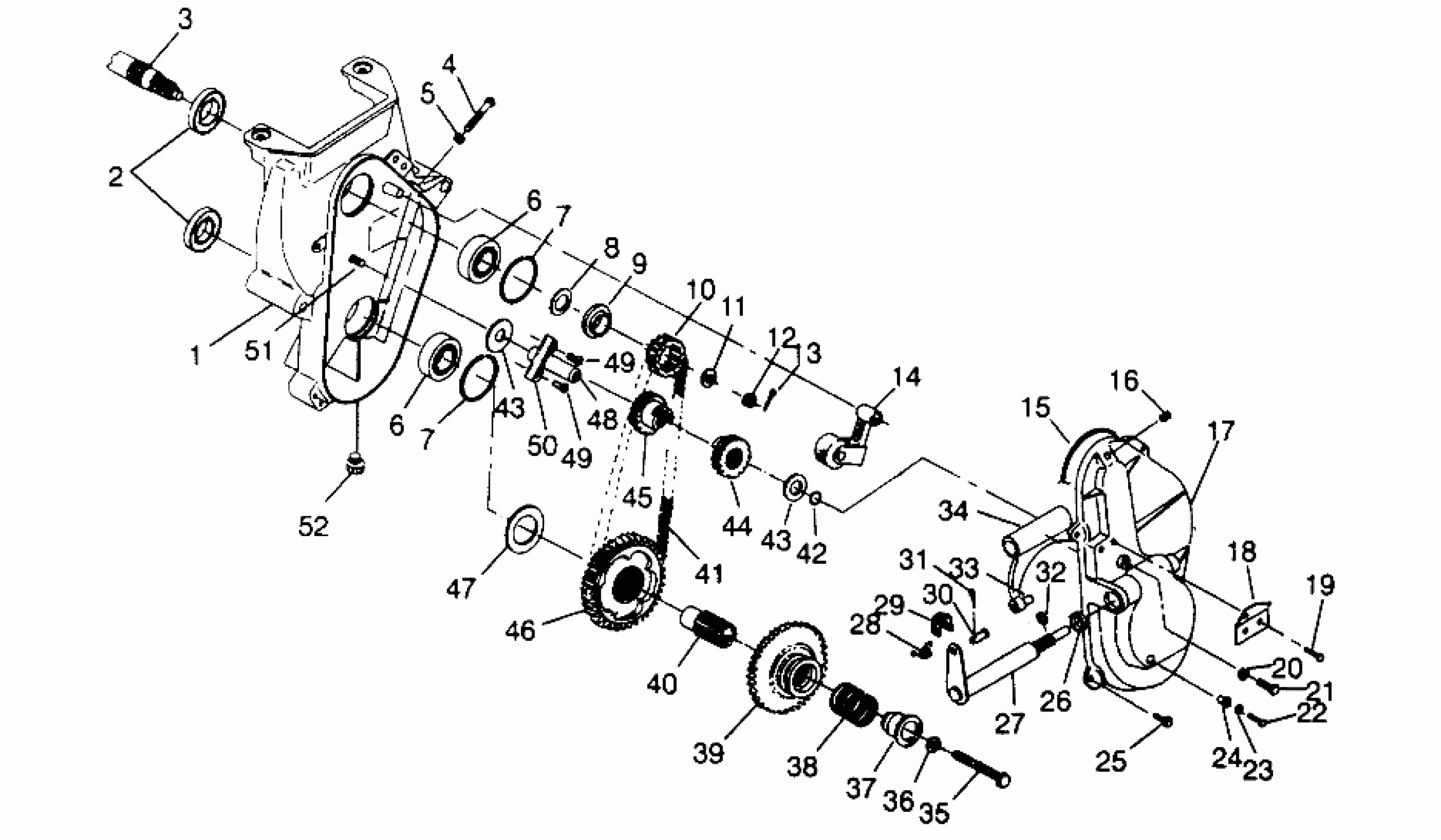

Polaris CLASSIC TOURING - 0963365 CHAINCASE CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362B009) Diagram

#

Description
Price

1

CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568

5131121

Unavailable

2

SEAL-OIL

3610030

$20.22

3

Asm., Jackshaft (See Page A26)

-------

Unavailable

4

SCREW(10)

7515511

$3.99

5

NUT(10)

7542404

$1.59

6

BEARING

3514308

Unavailable

6

BEARING

3514308

Unavailable

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

WASHER,THRUST(10)

7555876

Unavailable

9

SPACER,SPROCKET

5010359

Unavailable

10

SPKT,20T,(13W),15T SPLINE

3221061

Unavailable

11

WASHER, SLOTTED(10)

7571620

$7.19

12

NUT

7542811

Unavailable

13

COTTER PIN(10)

7661401

$1.49

14

PIN,CHAIN TIGHTENER

7662210

Unavailable

14

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

14

BEARING

3553002

$11.99

14

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

14

WHEEL,C/C IDLER

5630123

Unavailable

14

WASHER THRUST(10)

7558702

$1.59

15

GASKET-CHAINCASE

5410277

$24.99

16

PLUG(10)

7051520

$8.79

17

COVER,CH.CS,REV.MACH. Substituted by 5131753

5131172

Unavailable

18

BRKT,CABLE MOUNT

5222502-067

Unavailable

19

SCREW(10)

7512252

Unavailable

20

WASHER WROUGHT(10)

7558403

$4.79

21

SCREW(10)

7512497

Unavailable

22

SCREW(10)

7511909

$3.99

23

WASHER, FLAT(10)

7558201

$5.79

24

NUT-WELL(10)

7541918

Unavailable

25

SCREW(10)

7512242

$2.39

26

Seal, Oil

3610029

$8.89

27

SHAFT, SHIFT

1341093-067

$29.37

28

SPRING,REV.CABLE TENSION

7042044

Unavailable

29

CLEVIS

5222606

Unavailable

30

PIN, CLEVIS(10)

7661830

$3.99

31

PIN-COTTER(10)

7661205

$1.49

32

RING, RETAINER(10)

7710415

$3.99

33

PIN, SHIFT FORK(10)

7661826

$5.65

34

KIT,SHIFT FORK/SHAFT (Incl. 27, 33)

2200363

Unavailable

34

Fork, Shift

5130805

Unavailable

35

SCREW, NYLOK(10)

7515348

$4.79

36

LOCK WASHER(10)

7552901

$1.49

37

RETAINER,DRIVE COUPLER

5130727

Unavailable

38

SPRING, COMPRESSION Substituted by 7041887

7041309

$44.99

39

GEAR ASM,REVERSE Substituted by 1341362

1341121

$559.99

40

Coupler, Drive

5130720

Unavailable

41

CHAIN,66P,(13W),SILENT

3224051

Unavailable

42

O RING

5410589

$4.99

43

WASHER,THRUST(10)

7555877

$3.99

43

WASHER,THRUST(10)

7555877

$3.99

44

GEAR,SPUR PINION

1341075

$149.99

45

GEAR ASM, PINION

1341076

Unavailable

46

KIT,REV.GEAR'F'

1341111

$112.47

47

WASHER, REVERSE(10)

7555871

$5.59

48

SHAFT, PINION Substituted by 5131770

5130728

Unavailable

49

SCREW(10)

7512019

$3.99

49

SCREW(10)

7512019

$3.99

50

BRKT,CHAIN RETENTION

5222298

Unavailable

51

BOLT(10)

7515477

$34.99

52

PLUG(10)

7052115

$5.65
