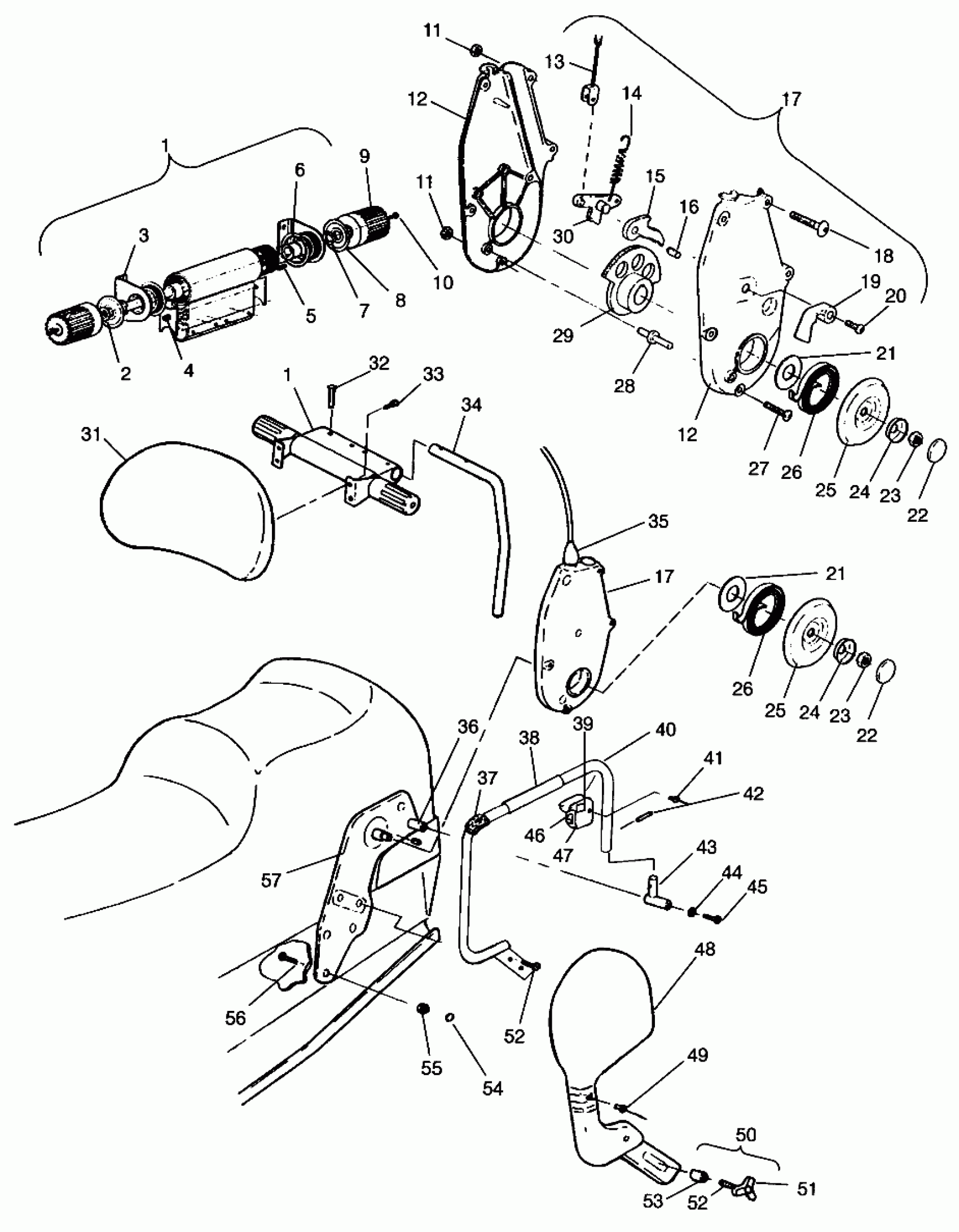

Polaris CLASSIC TOURING - 0963365 BACKREST CLASSIC TOURING 0963365 and EUROPEAN CLASSIC TOURING E963365 (4933623362A007) Diagram

#

Description
Price

1

ADJUSTER,B'REST CUSHION (Incl. 2-10)

1012315

$199.98

2

WASHER,WAVE(10)

7571635

$4.23

3

BRKT,MTG,BLK. Substituted by 1012382 (Set of LH & RH Brackets)

1012382-067

$66.60

4

SCREW(10)

7511866

$4.79

5

KEY,SQUARE(10)

7721118

$3.59

6

ROTOR (Set)

5131207

$16.47

7

E RING(10)

7710901

$7.19

8

WASHER,(10)

7571634

$2.39

9

KNOB, ADJ.

5432112

Unavailable

10

SCREW,(10)

7512087

$1.83

11

NUT(10)

7542124

Unavailable

11

NUT(10)

7542124

Unavailable

12

HSG,LH,(ADJ.B'REST) Substituted by 5131211

5131211-067

$61.90

12

HSG,RH,(ADJ.B'REST) Substituted by 5131212

5131212-067

$61.90

12

HSG,LH,(ADJ.B'REST) Substituted by 5131211

5131211-067

$61.90

12

HSG,RH,(ADJ.B'REST) Substituted by 5131212

5131212-067

$61.90

13

CABLE ASM,ACTUATOR

7080582

$87.19

14

SPRING,LOCKING

7041411

$25.59

15

SECTOR,ENGAGEMENT

5211610

Unavailable

16

PIN,PIVOT

5020806

Unavailable

17

ADJUSTER ASM,B'REST Substituted by 1012536 (Incl. 11-20, 27-30)

1012322

$190.46

17

ADJUSTER ASM,B'REST Substituted by 1012536 (Incl. 11-20, 27-30)

1012322

$190.46

18

BOLT ,(10)

7515171

Unavailable

19

LEVER,LOCKING.BLK. Substituted by 5631126-067

5630561-067

Unavailable

20

SCREW,(10)

7516915

$1.06

21

WASHER,THRUST(10)

7555926

$1.99

21

WASHER,THRUST(10)

7555926

$1.99

22

CAP,COVER SNAP,(10)

7080591

Unavailable

22

CAP,COVER SNAP,(10)

7080591

Unavailable

23

NUT(10)

7542461

Unavailable

23

NUT(10)

7542461

Unavailable

24

RETAINER,COVER,SNAP,(10)

7080590

Unavailable

24

RETAINER,COVER,SNAP,(10)

7080590

Unavailable

25

COVER,SPRING,BLK.

5241130-067

Unavailable

25

COVER,SPRING,BLK.

5241130-067

Unavailable

26

SPRING,TORSION,PRELOAD

7041412

Unavailable

26

SPRING,TORSION,PRELOAD

7041412

Unavailable

27

Bolt

7515170

$2.39

28

STUD-LIMITER

5020822

$66.39

29

GEAR,STAT.PIVOT ASM.

1012386

$219.99

30

PAWL ASM,LH,LOCK.,MASTER

1012320

$40.48

30

PAWL ASM,RH,LOCK,MASTER

1012321

Unavailable

31

COVER ASM,BACKREST

2681833

Unavailable

31

CUSHION,BACKREST

2681831

Unavailable

32

RIVET,INTERLOCK,B(50)

7661638

$1.49

33

SCREW(10)

7515136

$1.49

34

TUBE,BACKREST MTG.

5224639-067

Unavailable

35

COVER,CABLE,BLK

5432259

Unavailable

36

GRIP,GRABHANDLE,18 CM Substituted by 5521407 (18 cm)

5521381-18

Unavailable

37

HEATER ASM,PASS.HANDLE

2460526

Unavailable

38

DECAL,HIGH/LOW/OFF

7075418

Unavailable

39

HANDLE,GRAB,LH

1012374-067

Unavailable

39

HANDLE,GRAB,RH

1012375-067

Unavailable

40

RIVET(50)

7621229

Unavailable

41

PIN, SPRING(10)

7661849

Unavailable

42

KNUCKLE,BLK.

1012377-067

Unavailable

43

WASHER(10)

7555734

$1.49

44

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

45

HARNESS,PASS.GRP.HTR.SW.

2460537

$66.39

46

HOUSING-SWITCH

5432120

$22.23

47

DEFLECTOR,AIR,LH

5432078

$26.39

47

DEFLECTOR,AIR,RH

5432079

$27.19

48

RIVET,(50)

7621341

Unavailable

49

KNOB,GRAB HANDLE (Incl. 50-52)

1012385

Unavailable

50

Knob, Backrest

5630386-067

$20.22

51

BOLT(10) Substituted by 7515339

7515328

Unavailable

52

SPACER,ADJ.KNOB

5432123

$5.83

52

SPACER,ADJ.KNOB

5432123

$5.83

53

CAPLUG, 3/4"(10)

7080592

Unavailable

54

NUT, NYLOK(10)

7542327

$4.79

55

BOLT(10)

7512377

$4.79

56

MAINFRAME,LH

1012316-067

Unavailable

56

MAINFRAME,RH

1012317-067

Unavailable
