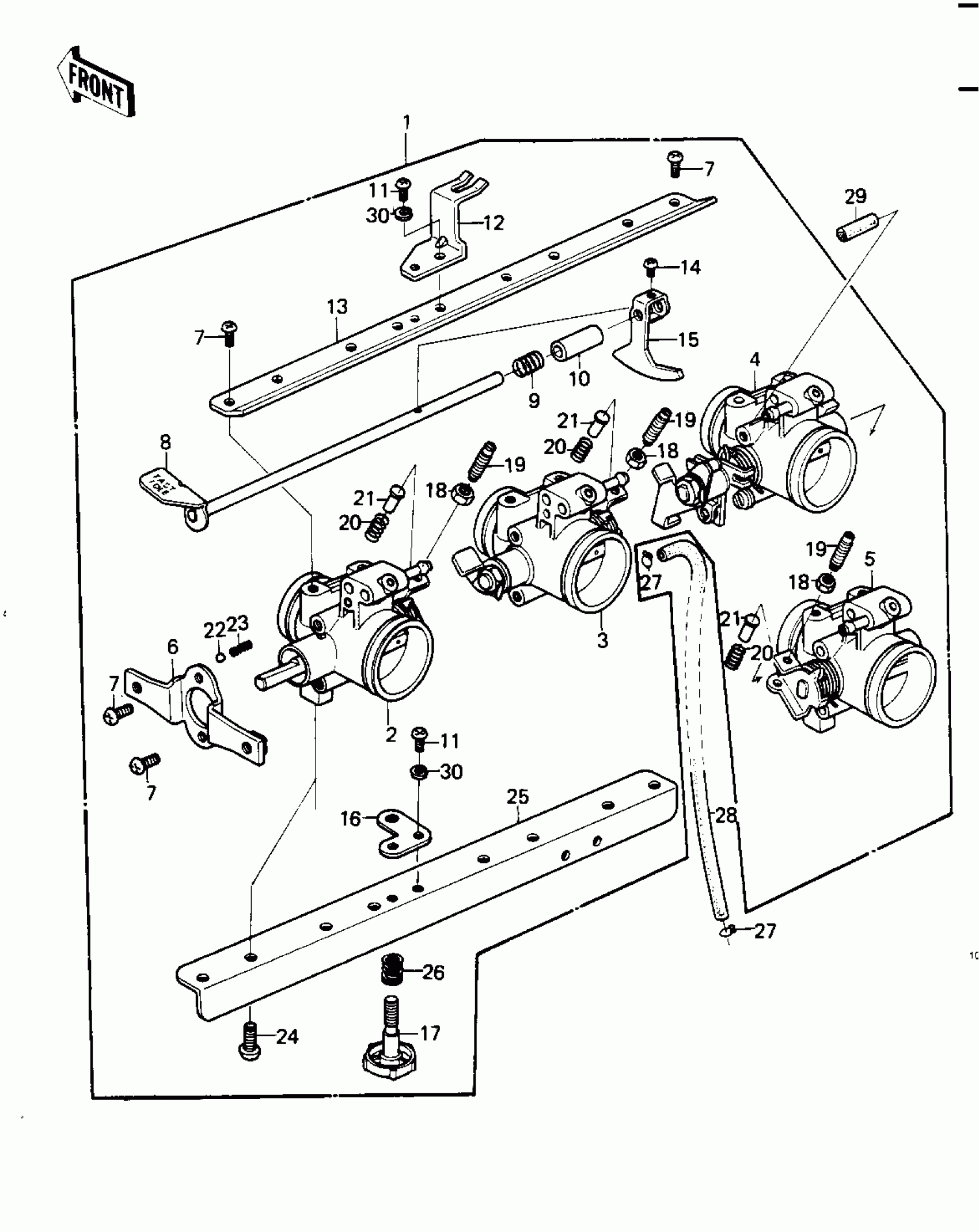

Kawasaki Classic THROTTLE ASSY Diagram

#

Description
Price

1

THROTTLE ASSY

16163-1001

$392.60

2

THROTTLE,L.H,OUTSIDE

16163-1002

$87.75

3

THROTTLE,L.H,INSIDE

16163-1003

$87.75

4

THROTTLE,R.H,INSIDE

16163-1004

$79.28

5

THROTTLE,R.H,OUTSIDE

16163-1005

$87.75

6

BRACKET,THROTTLE SWIT

11034-1811

Unavailable

7

SCREW PAN HEAD 5X10

220B0510

$0.69

8

SHAFT ASSY,FAST IDLE

13234-1003

Unavailable

9

SPRING,THROTTLE ADJST

16022-010

Unavailable

10

PIPE

32032-1433

$1.97

11

SCREW PAN HEAD 5X8

220B0508

$0.46

12

BRACKET,THROTTLE.CABL

11034-1812

Unavailable

13

PLATE,STAY,UPPER

13169-1280

Unavailable

14

SCREW,PAN HEAD,5X7

16046-007

Unavailable

15

LEVER,FAST IDLE

13168-1067

Unavailable

16

BRACKET,IDLING ADJUST

11034-1813

Unavailable

17

BOLT,IDLING ADJUST

92001-1331

$18.89

18

NUT,THROTTLE VALVE ADJUSTING

92015-1119

$5.59

19

BOLT,THROTTLE VLV AJS

92001-1332

$3.78

20

SPRING,THROTTLE VALVE ADJUST

92081-1259

$5.31

21

PIN,THROTTLE VALVE ADJUST

92043-1079

$6.40

22

BALL,STEEL,1/8"

600A0400

$1.40

23

SPRING,SHAFT STOP

92081-1260

$5.80

24

SCREW-PAN-CROS,6X14

220B0614

$1.48

25

PLATE,STAY,LOWER

13169-1279

Unavailable

26

SPRING,IDLING ADJUST

92081-1261

$1.54

27

CLAMP,TUBE

92037-072

$7.22

28

TUBE,4X9X290

92059-1043

$10.19

29

PLUG,12X25

92068-006

$4.26

30

WASHER SPRING 5MM

461F0500

$0.69
