Description

Price

1

SEAT-ASSY

53001-1084

$246.28

2

HINGE,REAR

53009-030

Unavailable

3

WASHER PLAIN 6MM

411B0600

$2.84

4

WASHER SPRING 6MM

461F0600

$0.69

5

BOLT-UPSET,6X16

112G0616

$1.10

6

DAMPER RUBBER,SEAT

92075-139

$11.46

7

HINGE,REAR

53009-032

Unavailable

8

DAMPER

92075-099

$5.52

9

NUT 6MM

311B0600

$0.93

10

BRACKET,SEAT CATCH

53058-003

Unavailable

11

HOOK,SEAT

53056-002

$16.66

12

BOLT-UPSET 6X14

112B0614

Unavailable

13

PIN,DUAL SEAT PIVOT

53011-008

Unavailable

14

PIN,SNAP

554A0600

$0.93

15

LOCK-ASSY,SEAT

27016-5010

Unavailable

16

WASHER SPRING 6MM

461F0600

$0.69

17

BOLT-UPSET,6X12

112G0612

$1.45

18

CASE-CHAIN

36014-069

Unavailable

19

WASHER-PLAIN,6MM

411D0600

$2.06

20

BOLT-HEX HEAD,6X16

110N0616

Unavailable

21

BOLT-UPSET

112G0614

$1.96

22

WASHER SPRING 6MM

461F0600

$0.69

23

SCREW PAN HEAD 6X10

220B0610

$3.14

24

GUIDE,HARNESS

13070-1027

Unavailable

25

BRACKET

11034-1757

Unavailable

26

BOLT-UPSET,6X16

112G0616

$1.10

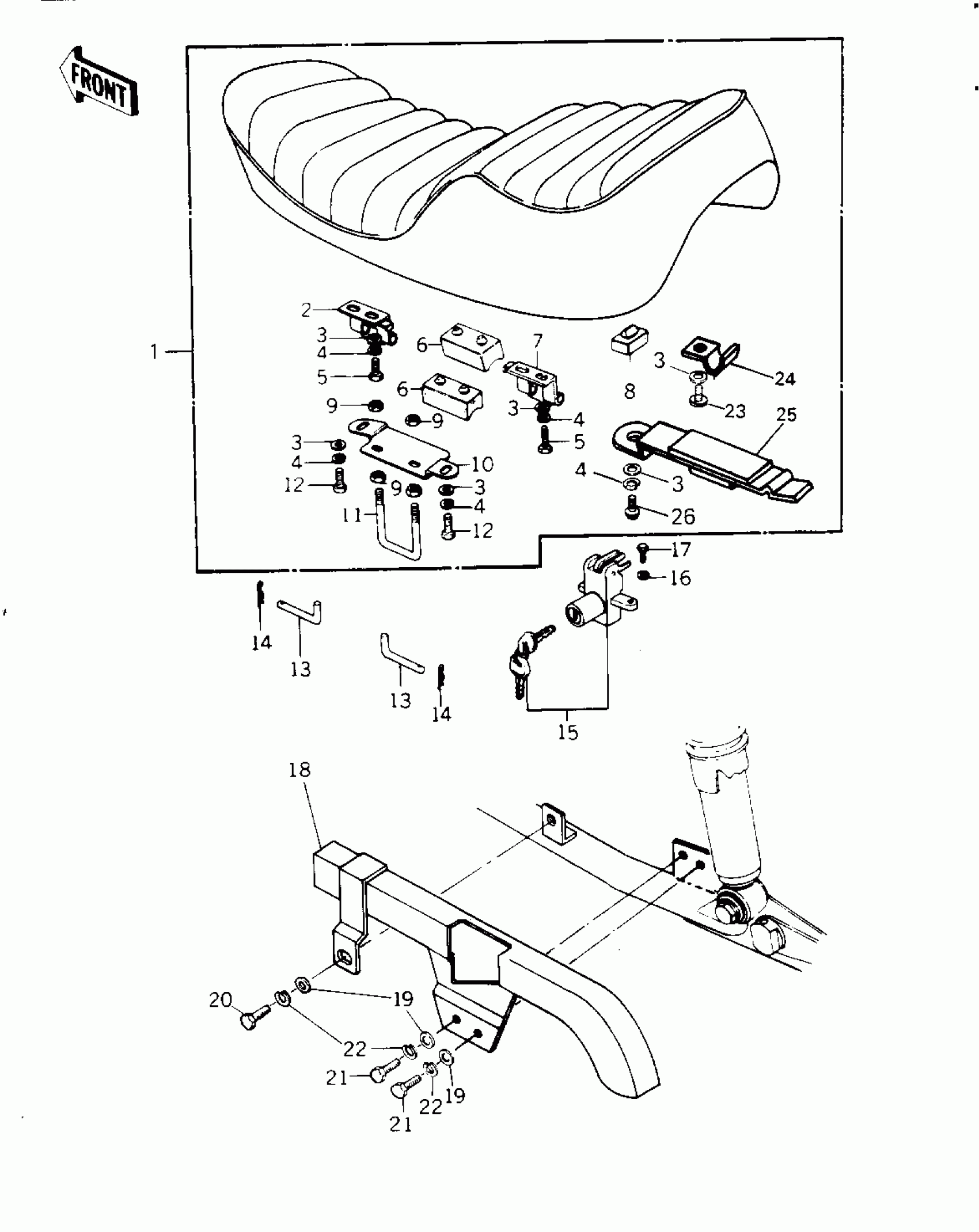

Kawasaki Classic SEAT/CHAIN COVER Diagram

SEAT-ASSY

HINGE,REAR

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET,6X16

DAMPER RUBBER,SEAT

HINGE,REAR

DAMPER

NUT 6MM

BRACKET,SEAT CATCH

HOOK,SEAT

BOLT-UPSET 6X14

PIN,DUAL SEAT PIVOT

PIN,SNAP

LOCK-ASSY,SEAT

WASHER SPRING 6MM

BOLT-UPSET,6X12

CASE-CHAIN

WASHER-PLAIN,6MM

BOLT-HEX HEAD,6X16

BOLT-UPSET

WASHER SPRING 6MM

SCREW PAN HEAD 6X10

GUIDE,HARNESS

BRACKET

BOLT-UPSET,6X16
