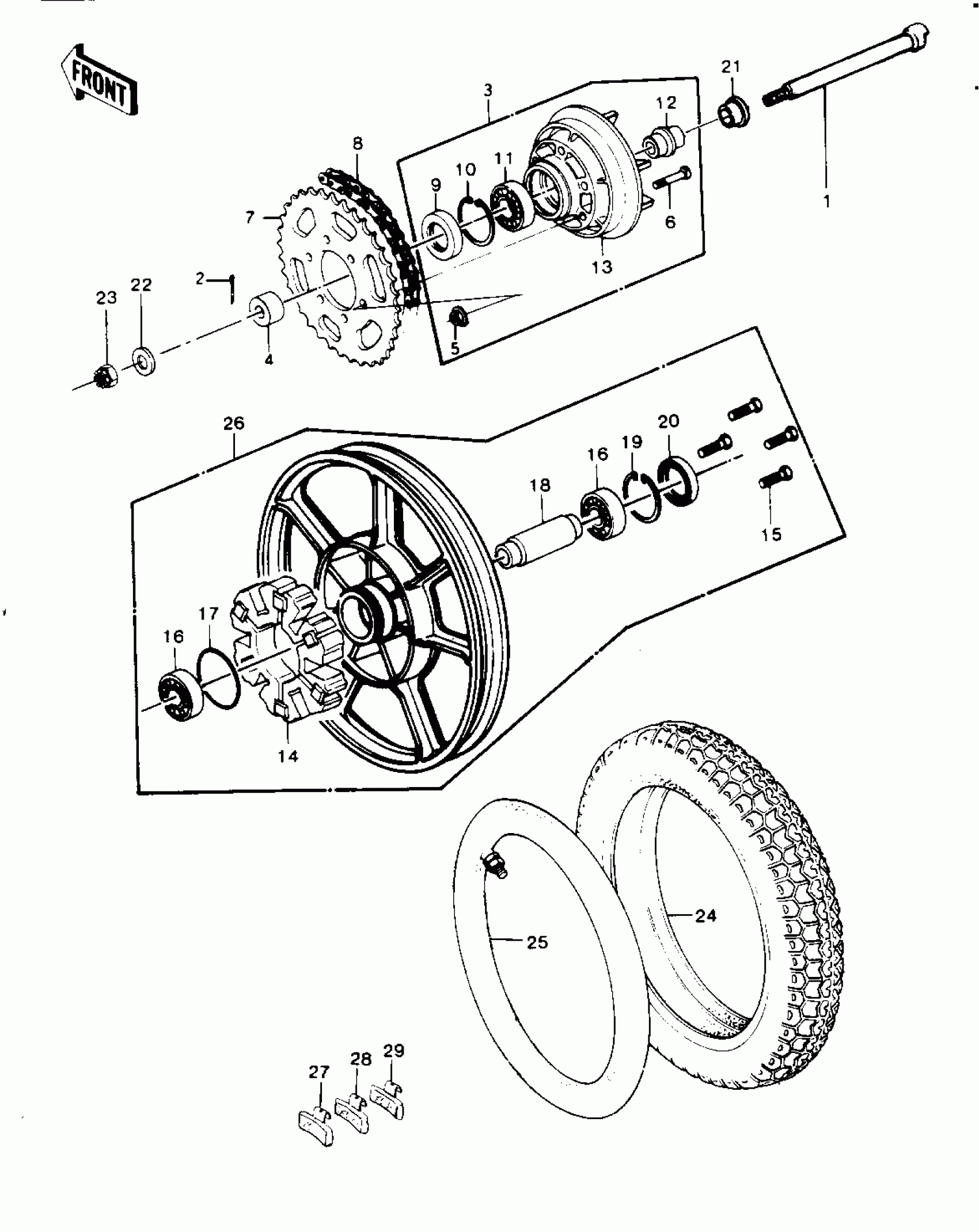

Kawasaki Classic REAR WHEEL/HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
AXLE,REAR
42031-034
$141.87
2
PIN-COTTER,4.0X35
550D4035
$2.17
3
COUPLING ASSY,RR HUB
42008-040
$229.00
4
COLLAR,REAR AXLE
42032-071
Unavailable
5
NUT,FLANGED,10MM
92015-1415
$4.69
6
BOLT,10X49
92001-4009
Unavailable
7
REAR SPROCKET,33T
42041-1010
Unavailable
8
DR CHAIN 630X92
92057-107
Unavailable
9
SEAL-OIL,AJN40627
92050-027
$20.96
10
RING-SNAP,62MM
92033-1044
$11.29
11
BALL BEARING,#6206
601B6206
$22.50
12
SLEEVE,RR HUB COUPLN
42036-033
Unavailable
14
DAMPER,RR HUB SHOCK,"1000"
42014-033
$111.86
15
BOLT,FLANGED,10X30
92001-1173
$11.07
16
BEARING-BALL,#6304ZZC3
601B6304ZZ
$45.75
17
O RING,65MM
671B2565
$8.86
18
COLLAR,RR HUB BEARING
42010-040
$17.81
19
RING-SNAP,52MM
92033-1043
$8.05
20
SEAL-OIL,TWC35527
92052-006
Unavailable
21
COLLAR, REAR AXLE
92027-1177
Unavailable
22
WASHER,20.3X34X4.5
92022-248
$11.60
23
NUT,CASTLE,18MM
42045-018
$9.23
24
TIRE 510-16 MT90 R
41021-072
$173.16
25
TUBE 510-16
K41022-1651
$18.89
26
SOLID WHEEL ASSY,REAR
41073-1085
$397.00
27
BALANCER-WHEEL,10G
41075-1011
Unavailable
28
BALANCER-WHEEL,20G
41075-1012
Unavailable
29
BALANCER-WHEEL,30G
41075-1013
Unavailable
