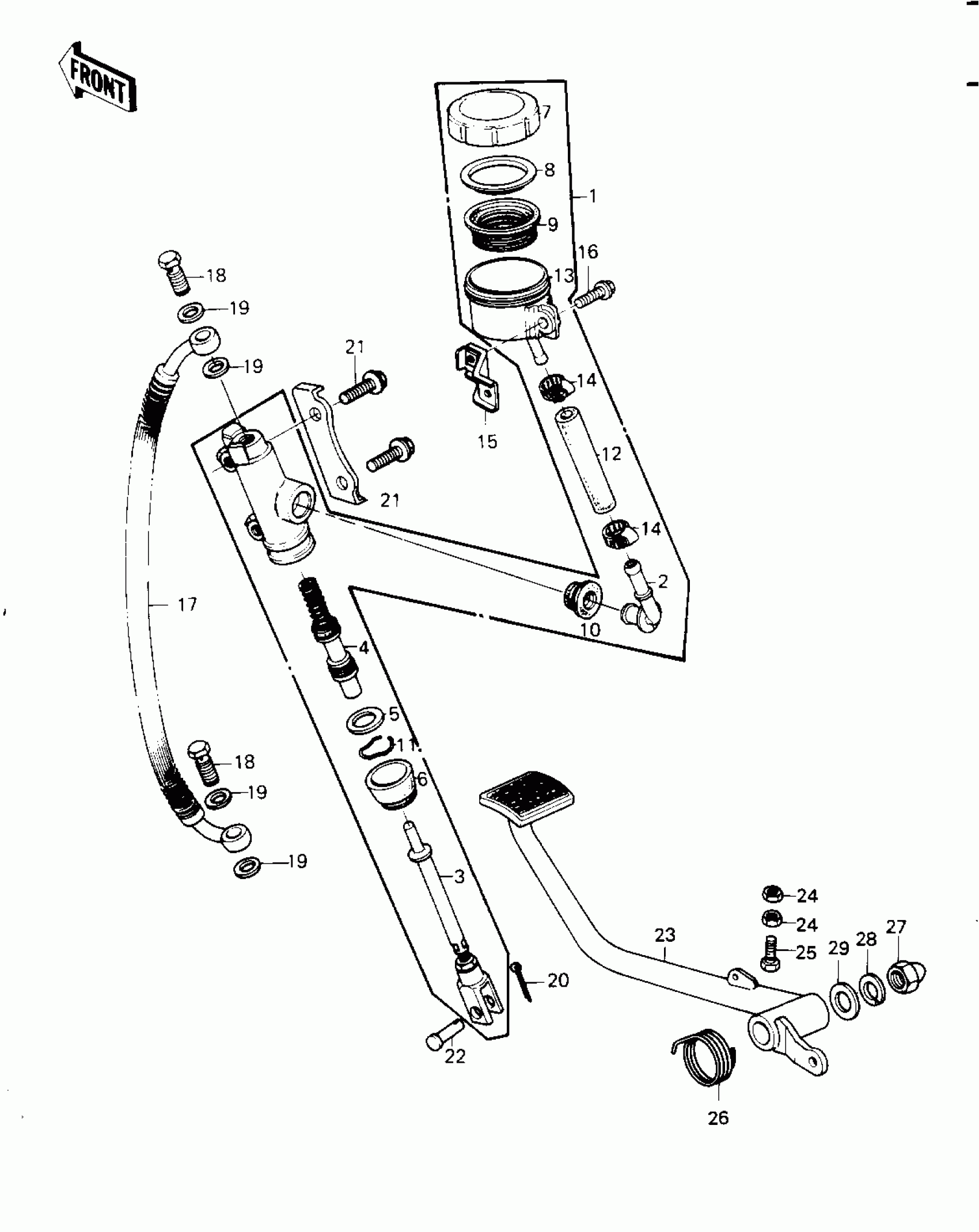

Kawasaki Classic REAR MASTER CYLINDER/BRAKE PEDAL Diagram

#

Description
Price

1

CYLINDER ASSY,RR MAST

43015-1047

Unavailable

2

CONNECTOR

13159-1005

Unavailable

3

ROD ASSY,REAR BRAKE

43010-1003

$54.47

4

PISTON ASSY,RR BRAKE

43020-1015

Unavailable

5

STOPPER,PISTON

43022-1002

$4.31

6

DUST COVER

43024-003

$23.15

7

CAP,OIL CUP

43026-1010

$36.42

8

PLATE-DIAPHRAGM

43027-1005

$6.52

9

DIAPHRAGM

43028-1016

$23.41

10

PACKING

43049-1008

$13.85

11

RING,ROD STOPPER

43058-004

$7.64

12

HOSE,BRAKE

43059-1044

Unavailable

13

RESERVOIR

43078-1008

Unavailable

14

CLAMP,BRAKE HOSE

92037-1154

$9.66

15

BRACKET,RR M/CYLINDER

11034-1580

Unavailable

16

BOLT,FLANGED,6X20

130B0620

Unavailable

17

HOSE, RR M/CYL BRAKE

43059-1046

Unavailable

18

BOLT,OIL,L=23

92002-1888

$4.10

19

WASHER,10.5X15X1.5

43067-001

$1.50

20

PIN COTTER 2.0X15

550D2015

Unavailable

21

BOLT,FLANGED,8X28

92001-1095

$6.57

22

PIN,8X16

92043-1013

$9.91

23

PEDAL,BRAKE

43001-1040

Unavailable

24

NUT 6MM

311B0600

Unavailable

25

BOLT-UPSET,6X20

112G0620

Unavailable

26

SPRING,BRAKE PEDAL

92081-1046

Unavailable

27

NUT,CAP AND LOCK,8MM

92019-013

$14.88

28

WASHER SPRING 8MM

461F0800

Unavailable

29

WASHER,8.5X20X1.6

92022-1561

$4.31
