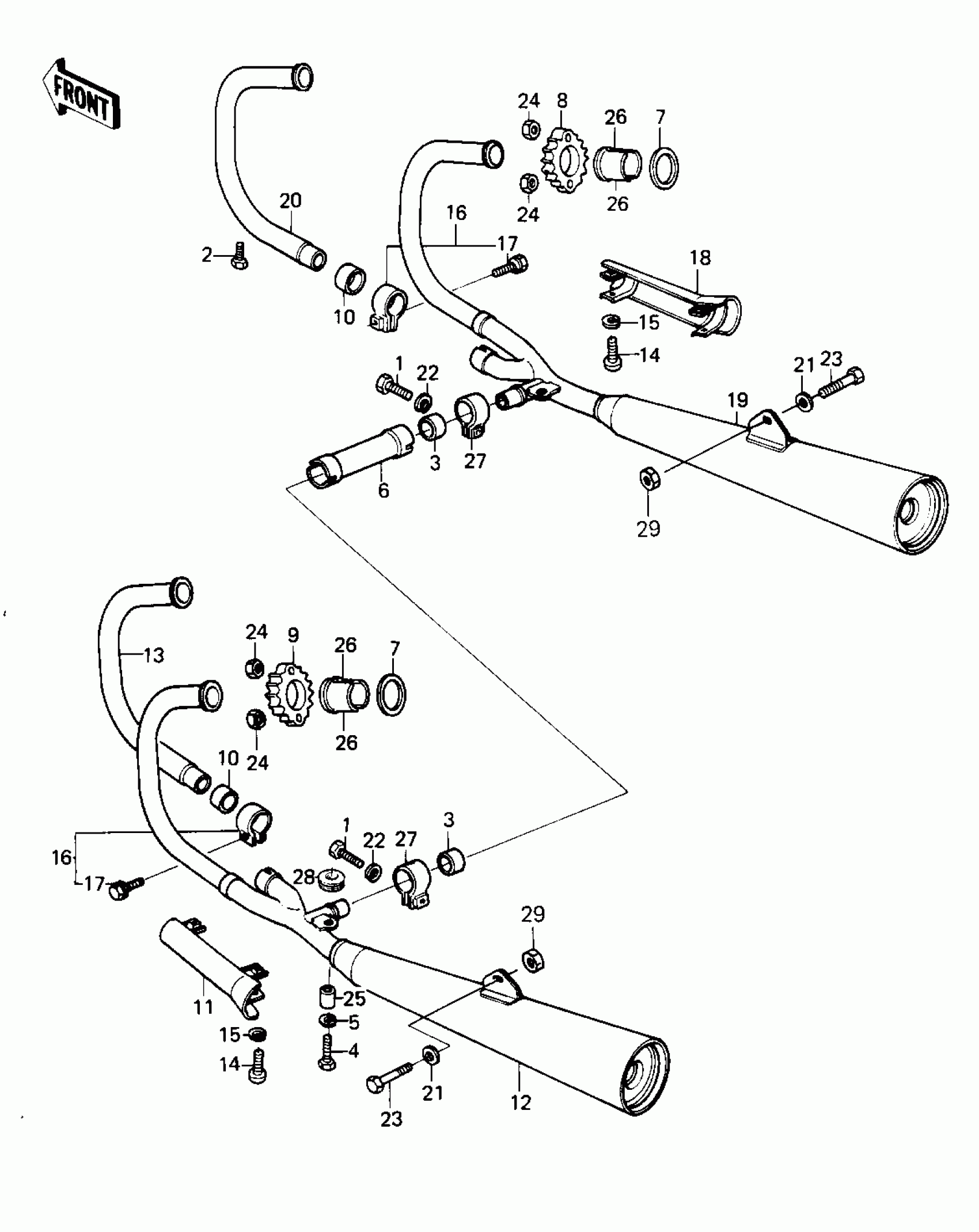

Kawasaki Classic MUFFLERS Diagram
#
Description
Price
1
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
2
BOLT (6X10)
110R0610
$3.44
3
GASKET,EXHAUST PIPE CONNECTING
11009-1718
$27.27
4
BOLT-SMALL-UPSET,8X30
115G0830
$6.34
5
WASHER SPRING 8MM
461F0800
$0.40
6
PIPE,MUFFLER CONNECT
18039-025
Unavailable
7
GASKET,EXHAUST PIPE
11009-1906
$11.06
8
HOLDER,EXHAUST PIPE,
18069-1004
Unavailable
9
HOLDER,EXHAUST PIPE,
18069-1005
$61.29
10
GASKET,MANIFOLD EXHAUST
11060-1068
$28.82
11
COVER,MUFFLER,L.H
14025-1205
Unavailable
12
MUFFLER,LH
18001-1121
$217.71
13
PIPE,EXHAUST,L.H INN
18049-1018
$111.02
14
SCREW PAN HEAD 6X40
220B0640
Unavailable
15
WASHER SPRING 6MM
461F0600
$0.69
16
CLAMP,MUFFLER
92037-1258
$15.89
17
BOLT,8X30
92001-1379
Unavailable
18
COVER,MUFFLER,R.H
14025-1206
Unavailable
19
MUFFLER,RH
18001-1122
$229.01
20
PIPE,EXHAUST,R.H INN
18049-1019
$111.02
21
WASHER,PLAIN,10MM (Canada)
410D1000
Unavailable
22
WASHER SPRING 8MM
461F0800
$0.40
23
BOLT-HEX HEAD,10X60
113N1060
$11.86
24
NUT,LOCK,8MM
92017-013
$10.35
25
COLLAR,MUFFLER FITT
92027-1271
$3.11
26
INSERT,EXHAUST PIPE
92027-170
$13.51
27
CLAMP,CONNECTING PIPE
92037-1221
$11.71
28
DAMPER RUBBER
92075-1042
Unavailable
29
NUT,LOCK,10MM
92019-021
$6.11
