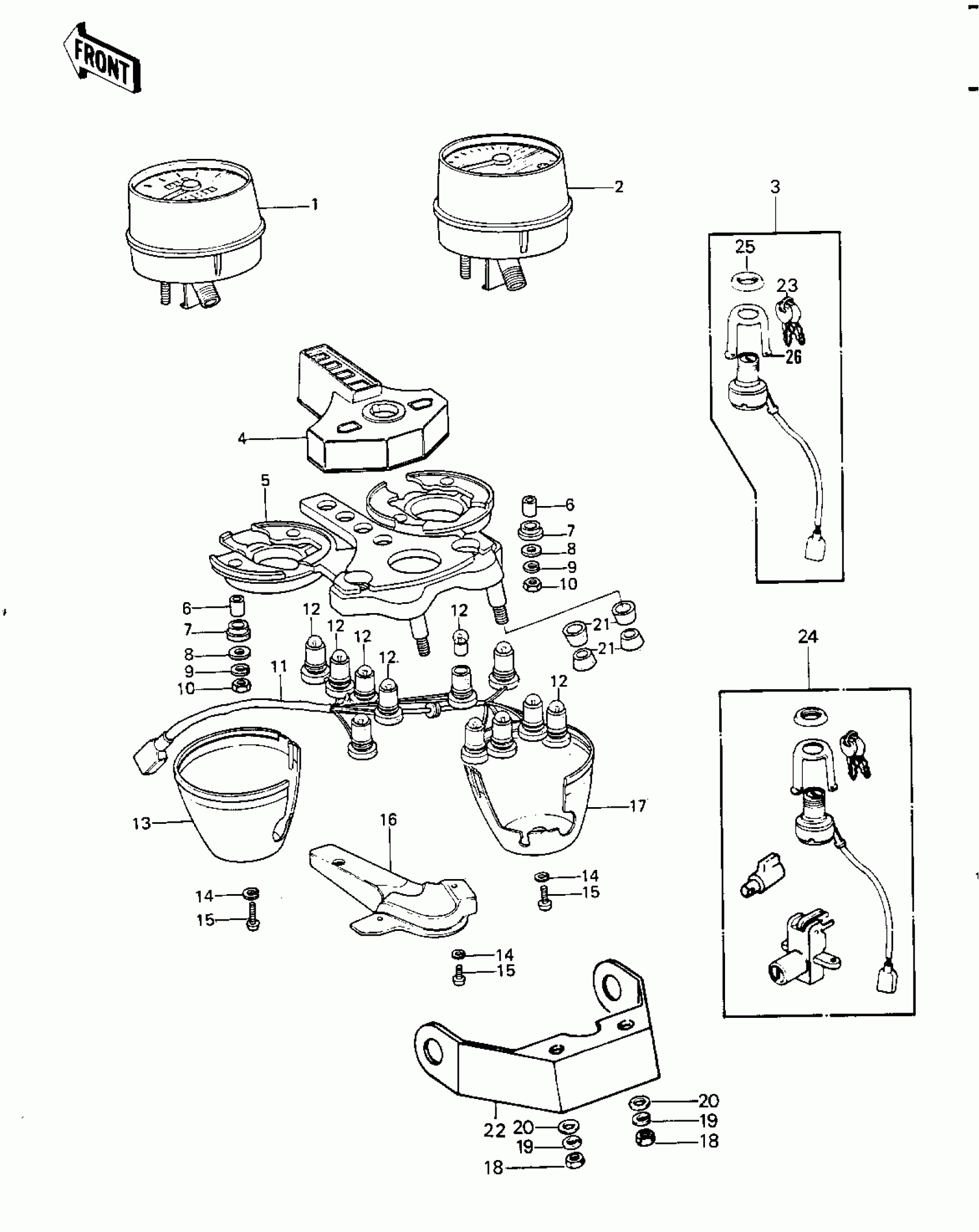

Kawasaki Classic METERS/IGNITION SWITCH Diagram

#

Description
Price

1

SPEEDOMETER ASSY, MPH

25005-1067

$606.84

1

SPEEDOMETER,KP4 (Canada)

25006-056

$542.63

2

TACHOMETER ASSY

25015-1050

$425.22

3

SWITCH ASSY,IGNITION

27005-5008

Unavailable

4

COVER,METER,INDICATE

25023-015

$220.31

5

BRACKET,METER

25008-1005

Unavailable

6

COLLAR,METER

92027-211

Unavailable

7

RUBBER,METER

92075-172

$11.52

8

WASHER,PLAIN,5MM

92022-241

Unavailable

9

WASHER SPRING 5MM

461F0500

Unavailable

10

NUT-HEX,5MM

312B0500

Unavailable

11

SOCKET ASSY,METER

23008-1055

$126.98

12

BULB 12V 3W

92069-018

$4.87

13

COVER,SPEEDOMETER

25012-023

Unavailable

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.48

16

COVER,METER BRACKET

25024-006

$28.37

17

COVER,TACHOMETER

25012-024

$220.13

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$10.35

22

BRACKET HEADLAMP

23064-030

Unavailable

23

KEY-LOCK,BLANK

27008-1103

Unavailable

24

LOCK ASSY,KZ1000-B3

27004-5036

Unavailable

25

NUT,IGNITION SW LOCK

27007-004

Unavailable

26

HOLDER IGNITION SW

27019-003

Unavailable
