Description

Price

1

LEVER ASSY,CLUTCH

46076-054

$102.73

2

LEVER-GRIP,CLUTCH

46092-023

$35.96

3

BOLT,HEX HEAD

92007-047

$13.77

4

NUT,CABLE ADUST NUT

46056-007

Unavailable

5

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

6

HOLDER,CLUTCH LEVER

46094-019

$70.86

7

NUT,LOCK 6MM

92017-014

$7.51

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

9

BOLT HEX HEAD 6X25

110N0625

$5.46

10

SWITCH,CLUTCH

27043-002

$39.87

11

BOLT 8X38

92001-1405

$16.50

12

WASHER SPRING 8MM

461F0800

$0.40

13

HOLDER-HANDLE,UPP

46012-008

$37.74

14

HANDLEBAR

46003-1047

Unavailable

15

RUBBER,L.H GRIP

46075-028

$39.98

16

HOUSING ASSY,L.H

46091-1094

Unavailable

17

SCREW PAN HEAD 5X30

220B0530

$3.41

18

SCREW-PAN-CROS

220B0535

$3.70

19

HOUSING ASSY,R.H

46091-1093

$117.94

20

SCREW-PAN-CROS

220B0540

$3.41

21

GRIP ASSY,THROTTLE

46019-038

$118.44

22

REAR VIEW MIRROR ASSY

56001-1053

$78.70

23

PLUG,B,KICKSTARTER

92066-061

Unavailable

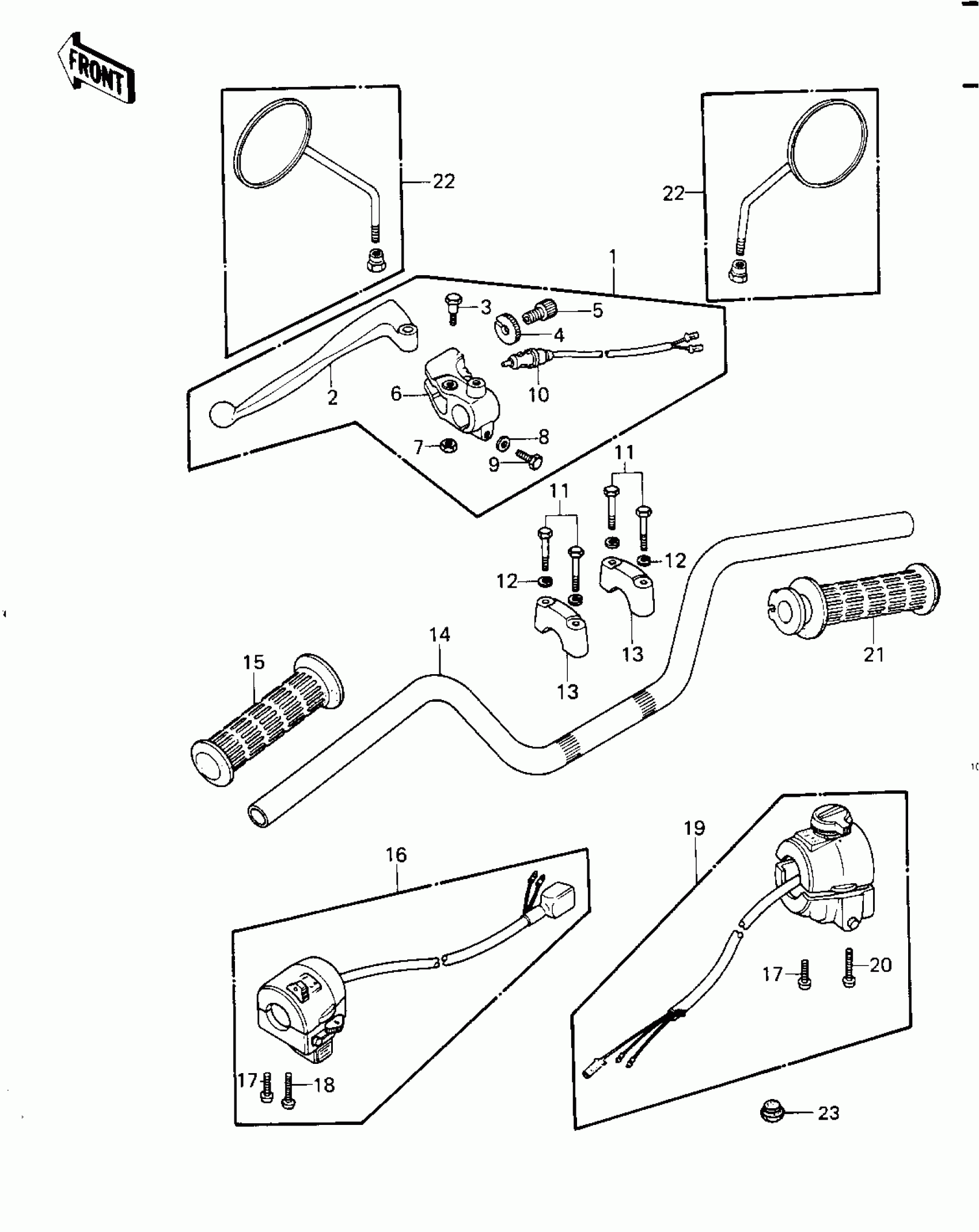

Kawasaki Classic HANDLEBAR Diagram

LEVER ASSY,CLUTCH

LEVER-GRIP,CLUTCH

BOLT,HEX HEAD

NUT,CABLE ADUST NUT

SCREW,CABLE ADJUST,8MM

HOLDER,CLUTCH LEVER

NUT,LOCK 6MM

WASHER-PLAIN-SMALL,6MM

BOLT HEX HEAD 6X25

SWITCH,CLUTCH

BOLT 8X38

WASHER SPRING 8MM

HOLDER-HANDLE,UPP

HANDLEBAR

RUBBER,L.H GRIP

HOUSING ASSY,L.H

SCREW PAN HEAD 5X30

SCREW-PAN-CROS

HOUSING ASSY,R.H

SCREW-PAN-CROS

GRIP ASSY,THROTTLE

REAR VIEW MIRROR ASSY

PLUG,B,KICKSTARTER
