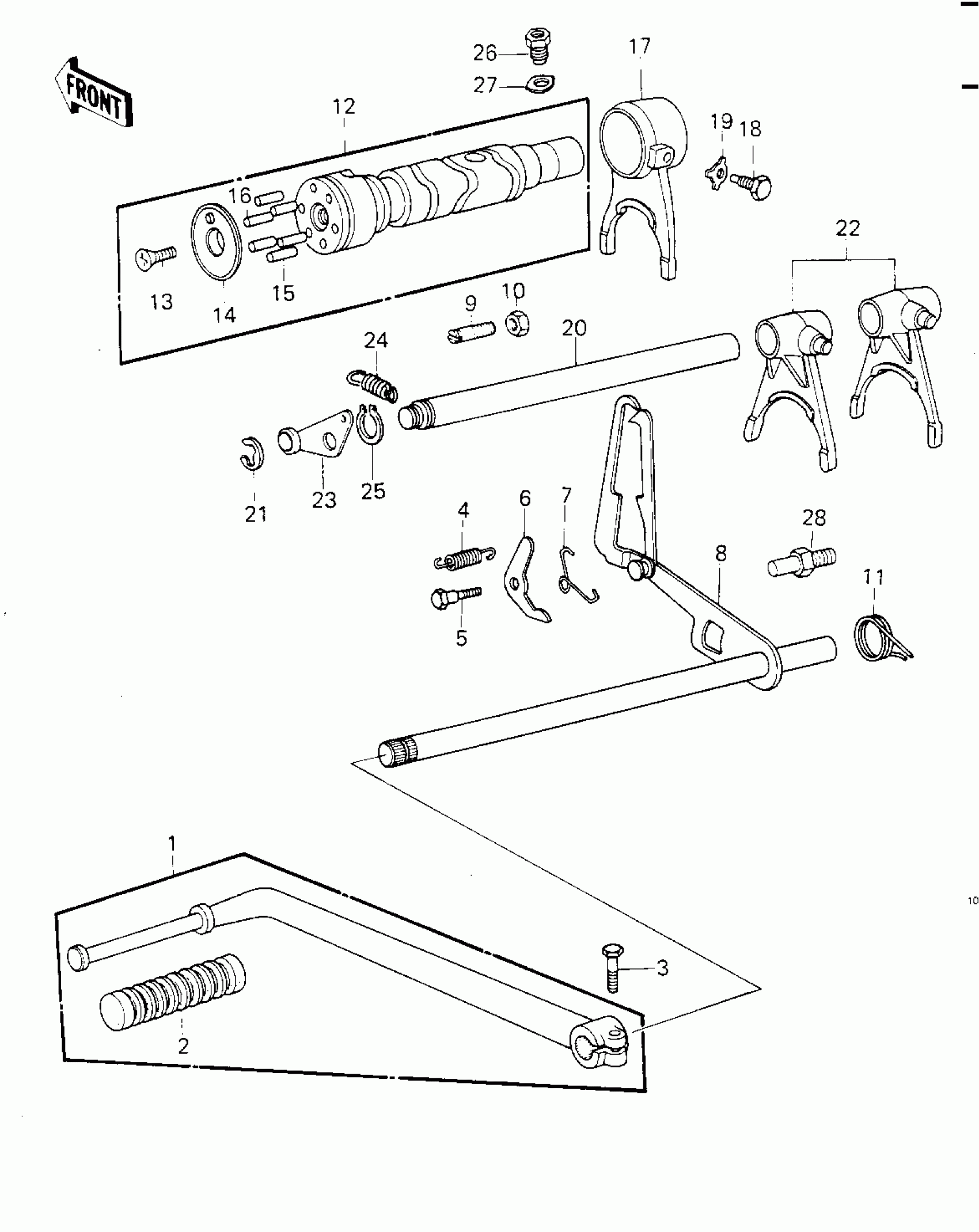

Kawasaki Classic GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

PEDAL ASSY,GEAR CHAN

13242-006

Unavailable

2

DAMPER,CHANGE PEDAL

13157-004

Unavailable

3

BOLT,6X20

110G0620

Unavailable

4

SPRING,NEUTRAL POSITION

92081-051

$5.29

5

BOLT,CHANGE DRUM LEVER

92150-1450

$4.46

6

LEVER,GEAR CHNG DRUM

13168-024

Unavailable

7

SPRING

92083-018

$9.80

8

LEVER ASSY GEAR CHNG

13161-029

Unavailable

9

BOLT,NEUTRAL POSITIO

92001-1301

$13.92

10

NUT 6MM

312B0600

Unavailable

11

SPRING,CHG PEDL RTRN

92083-028

$15.20

12

DRUM ASSY,GEAR CHANG

13239-1015

Unavailable

13

SCREW-CSK-CROS,6X20

221B0620

$1.66

14

HOLDER,CHANGE DRUM PIN

13091-1088

$27.54

15

PIN,DOWEL,4X15.8

92042-014

$1.49

16

PIN,DOWEL,4X17.8

92042-020

$5.05

17

FORK,SELECTOR,3RD

13140-046

Unavailable

18

PIN SELECT FORK GUIDE

92043-016

Unavailable

19

WASHER LOCK 10MM

92031-001

$11.45

20

ROD,SHIFT

49047-1006

$27.14

21

CIRCLIP-TYPE-C,12MM

480J1200

$1.49

22

FORK,SELECTOR,4TH&TOP

13140-045

$254.98

23

LEVER,NEUTRAL POSITI

13236-1020

Unavailable

24

SPRING,NEUTRAL POSITION

92081-051

$5.29

25

CIRCLIP-TYPE-E,6MM

482J6000

$1.49

26

BOLT,CHG DRUM POSITN

92001-1052

$15.34

27

WASHER,LOCK

92024-047

Unavailable

28

BOLT,RETURN SPRING

92001-1401

$3.95
