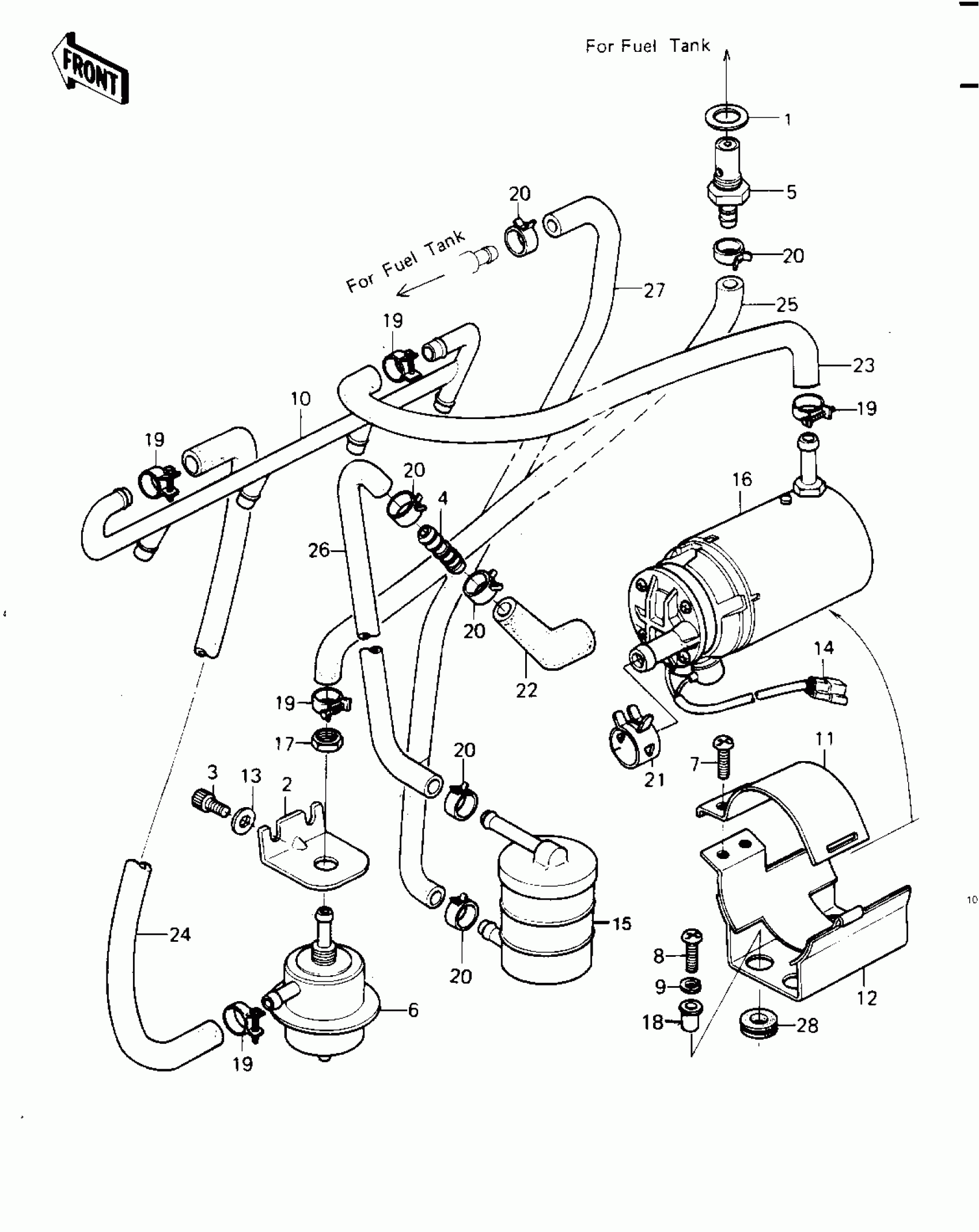

Kawasaki Classic FUEL PUMP Diagram

#

Description
Price

1

GASKET,RELIEF VALVE

11009-1182

Unavailable

2

BKT,PRESSURE REGULATO

11034-1723

Unavailable

3

BOLT,SOCKET,5X8

120P0508A

Unavailable

4

CONNECTOR,FUEL PUMP

13159-1006

Unavailable

5

VALVE-ASSY-RELIEF

16130-1002

$77.75

6

REGULATOR-FUEL

16162-1002

Unavailable

7

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

8

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

9

WASHER SPRING 6MM

461F0600

Unavailable

10

PIPE ASSY

31064-1002

$62.69

11

BKT,FUEL PUMP FITTING

11034-1721

Unavailable

12

BKT,FUEL PUMP FITTING

11034-1722

Unavailable

13

WASHER PLAIN 5MM

410B0500

Unavailable

14

WIRE,FUEL PUMP LEAD

26011-1076

$33.49

15

FILTER-FUEL

49019-1001

$29.27

16

PUMP ASSY,FUEL

49040-1001

Unavailable

17

NUT,12M/M

92015-1101

Unavailable

18

COLLAR

92027-194

$5.52

19

CLAMP

92037-1178

Unavailable

20

CLAMP,HOSE CLIP

92037-1181

$3.36

21

CLAMP

92037-1206

$1.22

22

TUBE

92059-1120

$11.92

23

TUBE,7.5X13.5X272

92059-1121

Unavailable

24

TUBE,7.5X13.5X285

92059-1122

Unavailable

25

TUBE

92059-1134

$108.90

26

TUBE,7.6X14X140

92059-1146

$18.53

27

TUBE,7.6X14X360

92059-1147

$18.56

28

DAMPER

92075-277

$2.84
