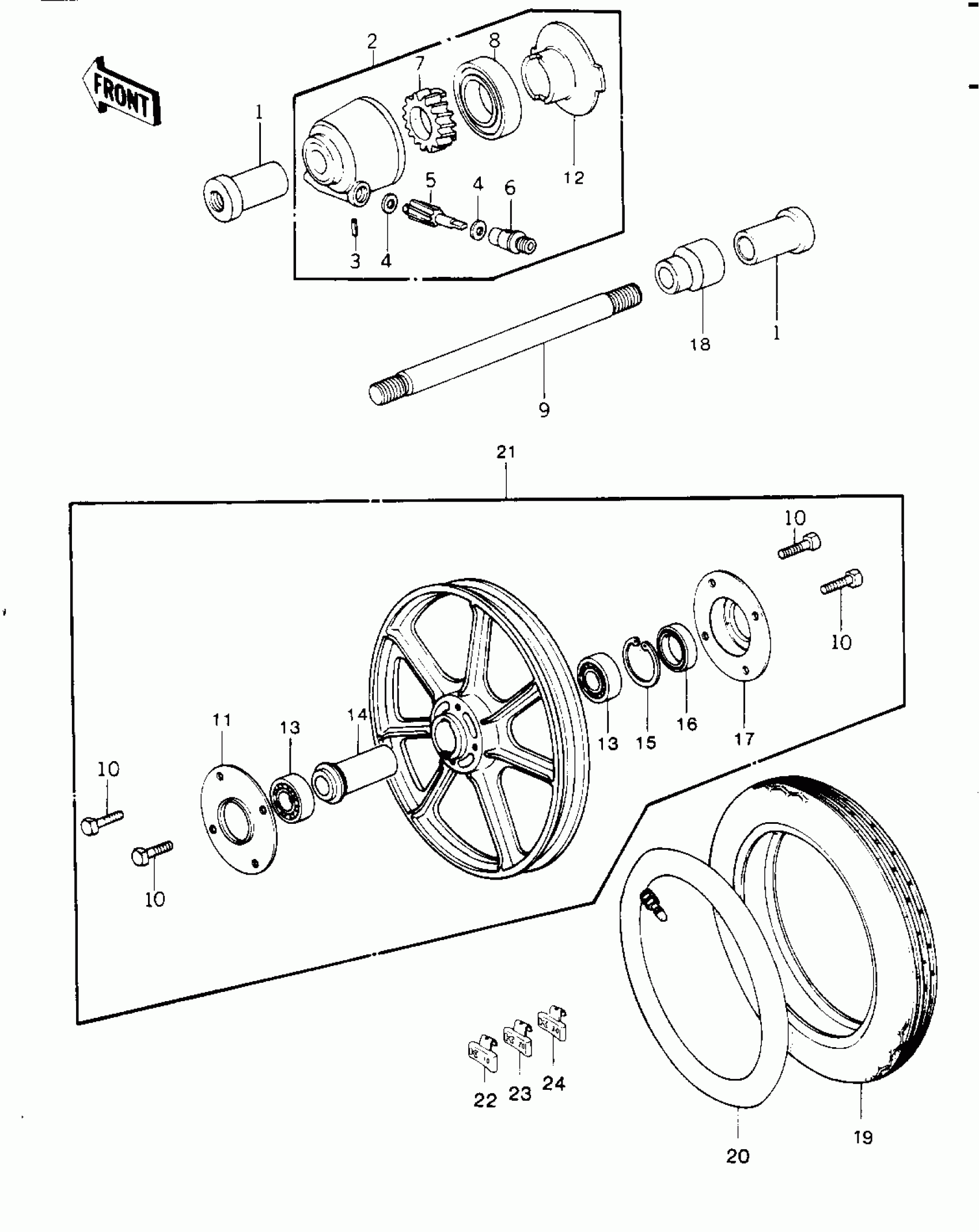

Kawasaki Classic FRONT WHEEL/TIRE/HUB Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

GEAR BOX ASSY,SPEEDO

41078-1012

$174.89

3

PIN,SPRING

41082-001

$3.53

4

WASHER,5.1X9X0.4

41063-001

$4.17

5

PINION,SPEEDOMETER

41060-017

Unavailable

6

BUSHING,SPEEDOMETER

92028-1066

$8.59

7

GEAR-METER SCREW,26T

41059-026

$43.35

8

SEAL-OIL,BJN30427-C3

92049-1057

$7.78

9

AXLE,FRONT

41068-049

$135.58

10

BOLT,FLANGED,10X30

92001-1173

$8.42

11

DUST COVER

41042-014

Unavailable

12

RECEIVER,GEAR

41064-013

Unavailable

13

BEARING-BALL,#6203ZZC3

601B6203ZZ

Unavailable

14

COLLAR,BRG

41039-028

Unavailable

15

RING-SNAP,40MM

92033-1040

$4.45

16

OIL SEAL

654A254008

$24.19

17

DUST COVER

41042-015

Unavailable

18

COLLAR,FRONT AXLE

41069-032

Unavailable

19

TIRE-FRONT

41021-071

Unavailable

20

TUBE 350/375/410-19

41022-046

Unavailable

21

WHEEL ASSY-FRONT,GOLD

41073-1084

$352.82

22

BALANCER-WHEEL,10G

41075-1011

Unavailable

23

BALANCER-WHEEL,20G

41075-1012

Unavailable

24

BALANCER-WHEEL,30G

41075-1013

Unavailable
