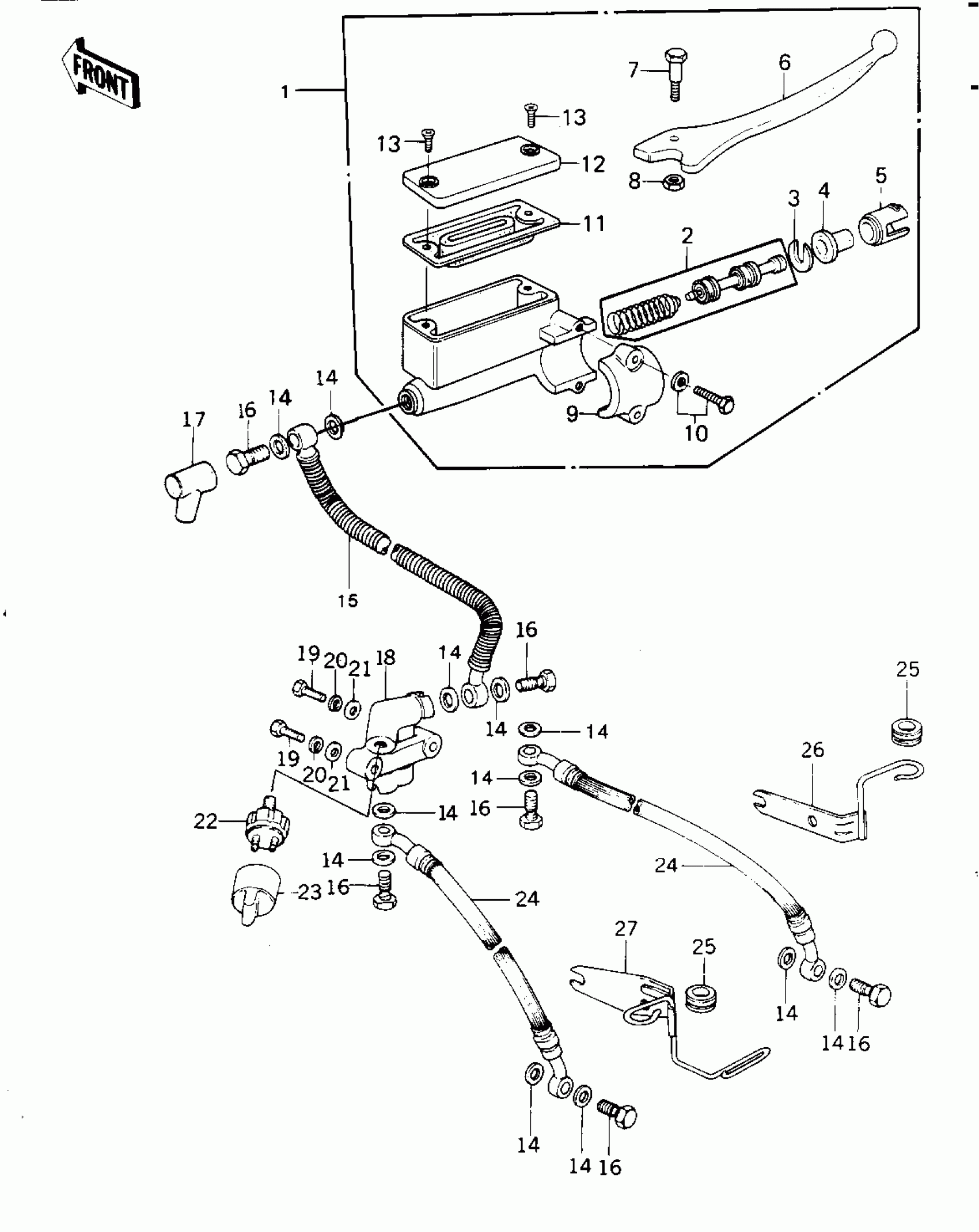

Kawasaki Classic FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,MASTER

43015-1059

$233.57

2

PISTON-COMP-BRAKE

43020-1023

$95.02

3

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

4

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

5

LINER,PISTON

14008-1007

Unavailable

6

LEVER,FRONT BRAKE

46092-1012

Unavailable

7

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

8

NUT 6MM

312B0600

$0.72

9

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

10

BOLT,6X25,W/WASHER

43033-003

Unavailable

11

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

12

CAP-BRAKE

43026-1006

Unavailable

13

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

14

WASHER,10.5X15X1.5

43067-001

$2.15

15

HOSE,MASTER CYL BRAK

43059-1062

$69.23

16

BOLT,OIL,L=23

92002-1888

$5.48

17

BOOT,DUST

49006-1041

$11.49

18

JOINT,FOUR WAY

43075-002

$42.47

19

BOLT,FLANGED,6X65

130G0665

$1.42

20

WASHER SPRING 6MM

461F0600

$0.69

21

WASHER PLAIN 6MM

411B0600

$2.84

22

SWITCH-FRONT BRAKE

43065-001

Unavailable

23

CAP,FRONT BRK SWITCH

11012-1037

Unavailable

24

HOSE,CALIPER BRAKE

43059-033

Unavailable

25

GROMMET,HOSE CLAMP

43064-006

$4.31

26

BRACKET,BRAKE HOSE

43063-008

Unavailable

27

BRACKET

11034-1041

Unavailable
