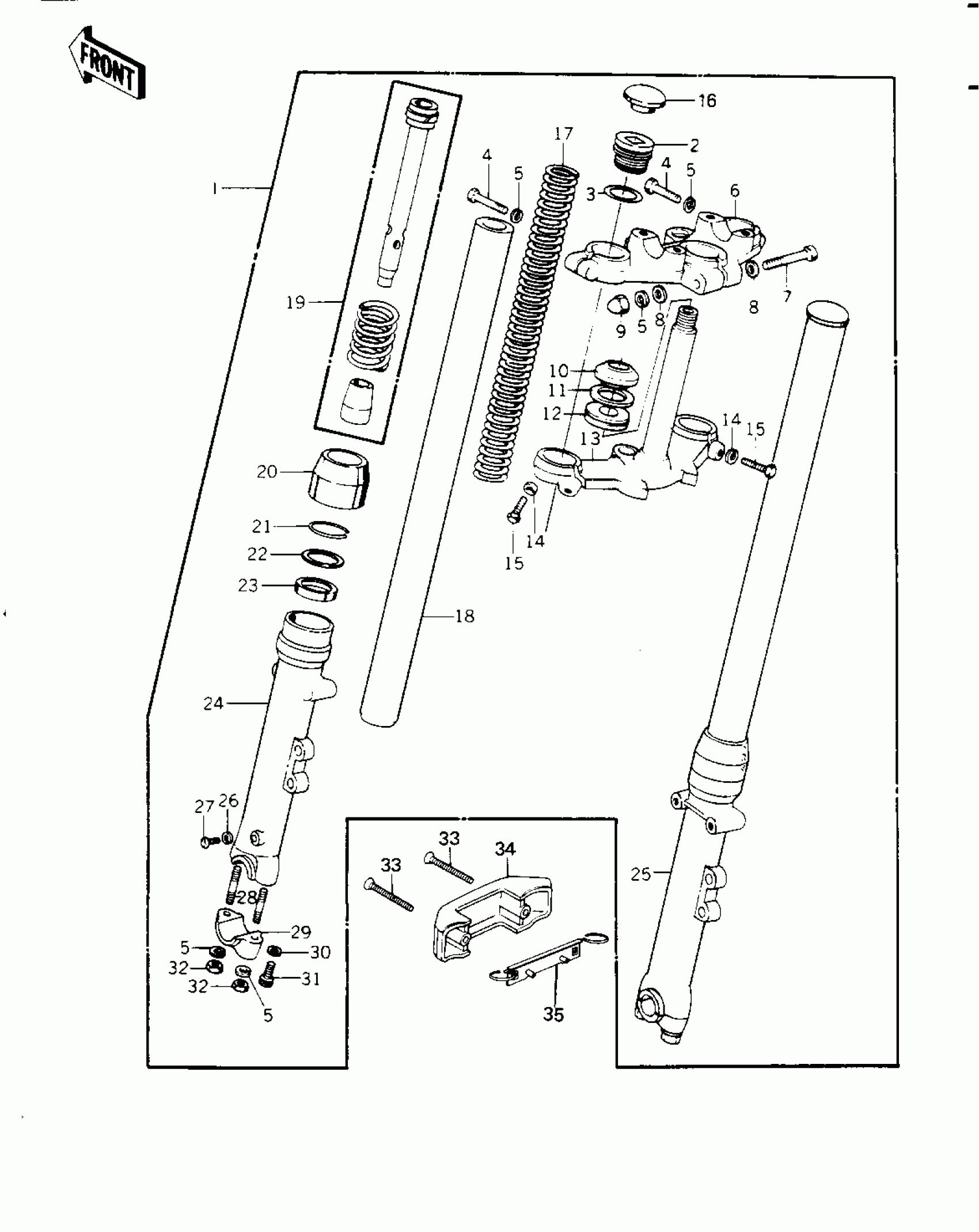

Kawasaki Classic FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-1203

$1,258.54

2

CAP,FORK SPRING

44029-1003

Unavailable

3

"O" RING,FORK TOP

92055-1009

Unavailable

4

BOLT-HEX HEAD.8M/M

44041-045

$23.27

5

WASHER SPRING 8MM

461F0800

Unavailable

6

HEAD,STEERING

44039-073

Unavailable

7

BOLT-STEERING STEM HD

44041-042

Unavailable

8

WASHER PLAIN 8MM

410B0800

Unavailable

9

NUT FUEL TANK FRONT

92020-007

Unavailable

10

RACE,STEERING STEM BEARING

92047-012

$13.24

11

WASHER,30.5X50X0.6

92022-231

$4.69

12

SEAL-OIL,STEERING STEM

92056-003

$8.86

13

STEM,STEERING

44037-1015

$520.71

14

WASHER-SPRING,12MM

461F1200

Unavailable

15

BOLT-HEX HEAD,12X36

92003-064

$23.27

16

CAP,RUBBER

11012-1017

$11.49

17

SPRING,FORK

44026-1003

Unavailable

18

TUBE,FORK INNER

44013-1003

Unavailable

19

CYLINDER-FORK

44022-1011

$81.12

20

DUST SHEILD,FORK

44010-032

$39.46

21

RING-SNAP,FORK OIL

92033-1100

$14.94

22

WASHER-OIL SEAL FIT

44043-044

$12.29

23

SEAL-OIL,FORK OUTER PIPE

92049-1216

$23.21

24

TUBE,LH,FORK OUTER

44005-1031

$362.15

25

TUBE,RH,FORK OUTER

44006-1031

$257.41

26

GASKET,FORK DRAIN PLUG

44045-002

$5.18

27

SCREW PAN HEAD 4X8

220B0408

Unavailable

28

STUD,8X35

92004-1009

$6.38

29

HOLDER,FRONT AXLE

44063-014

Unavailable

30

GASKET

44045-057

$4.86

31

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

32

NUT,LOCK,8MM

92015-1124

$5.42

33

SCREW-CSK-RD-CROS

222C0518

$3.93

34

COVER,FORK

44033-1054

$73.87

35

BRACKET,FORK COVER

11034-1766

Unavailable
