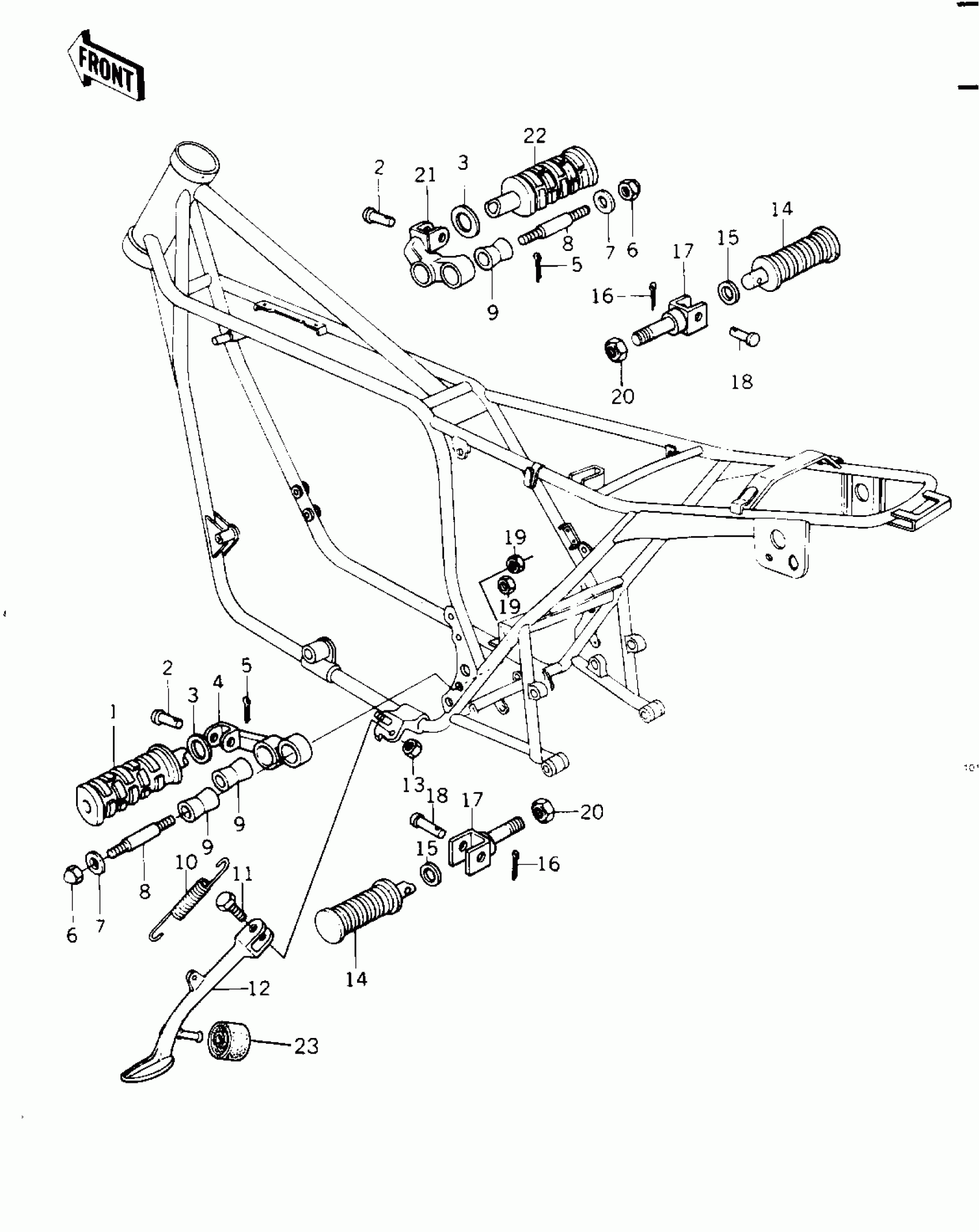

Kawasaki Classic FOOTRESTS/STAND Diagram

#

Description
Price

1

BAR-FOOTREST,L.H

34028-011

Unavailable

2

PIN,8X31

92043-080

$5.52

3

WASHER,25X36X2.3

92022-250

$5.00

4

BRACKET,FOOTREST,L.H

34003-036

$119.76

5

PIN-COTTER,2.5X15

550D2515

$0.47

6

NUT,CAP,LOCK,8MM

92015-1133

$8.84

7

CAP,FOOTRESTBAR

92102-010

$8.49

8

STUD,FOOTREST BAR FI

92004-048

$14.37

9

DAMPER RUBBER,FOOTRST

92075-140

$11.03

10

SPRING,STAND

34025-005

$7.58

11

BOLT,SIDE STAND

92003-079

$11.79

12

STAND-SIDE

34024-1036

$146.00

13

NUT-HEX-FINE,10MM

315B1000

$0.58

14

RUBBER,FOOTREST

92076-027

$37.21

15

WASHER-PLAIN (OPT)

92022-199

Unavailable

16

PIN-COTTER,2.0X12

550D2012

$1.11

17

BRACKET,REAR FOOTREST

33028-011

Unavailable

18

PIN,6X28

92043-1464

$8.10

19

NUT-HEX-FINE,10MM

315B1000

$0.58

20

NUT-HEX-FINE

315B1200

$0.93

21

BRACKET,FOOTREST,R.H

34003-037

Unavailable

22

BAR-FOOTREST,R.H

34028-012

$29.20

23

DAMPER,STAND STOPPER

92075-1205

$24.97
