Description

Price

1

FENDER-FR

35004-1047

$430.01

2

BOLT-SMALL-UPSET,8X18

115G0818

$5.23

3

WASHER SPRING 8MM

461F0800

$0.40

4

FENDER-RR

35022-154

Unavailable

5

FENDER-RR

35022-1060

$121.57

6

FENDER-RR

35023-1026

$33.05

7

BOLT-UPSET,6X16

112G0616

$1.10

8

WASHER SPRING 6MM

461F0600

$0.69

9

WASHER PLAIN

411F0600

$1.18

10

BOLT-UPSET

112G0625

$3.62

11

COLLAR

92027-194

$5.52

12

DAMPER

92075-277

$2.84

13

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

14

STAY,REAR FENDER

35011-1049

Unavailable

15

BOLT-UPSET,10X22

112B1022

$4.76

16

WASHER SPRING 10MM

461F1000

$0.67

17

WASHER-PLAIN,10MM

411B1000

$0.93

18

WASHER,10.5X26X2.3

92022-044

$3.92

19

GROMMET,10MM

92071-019

$3.89

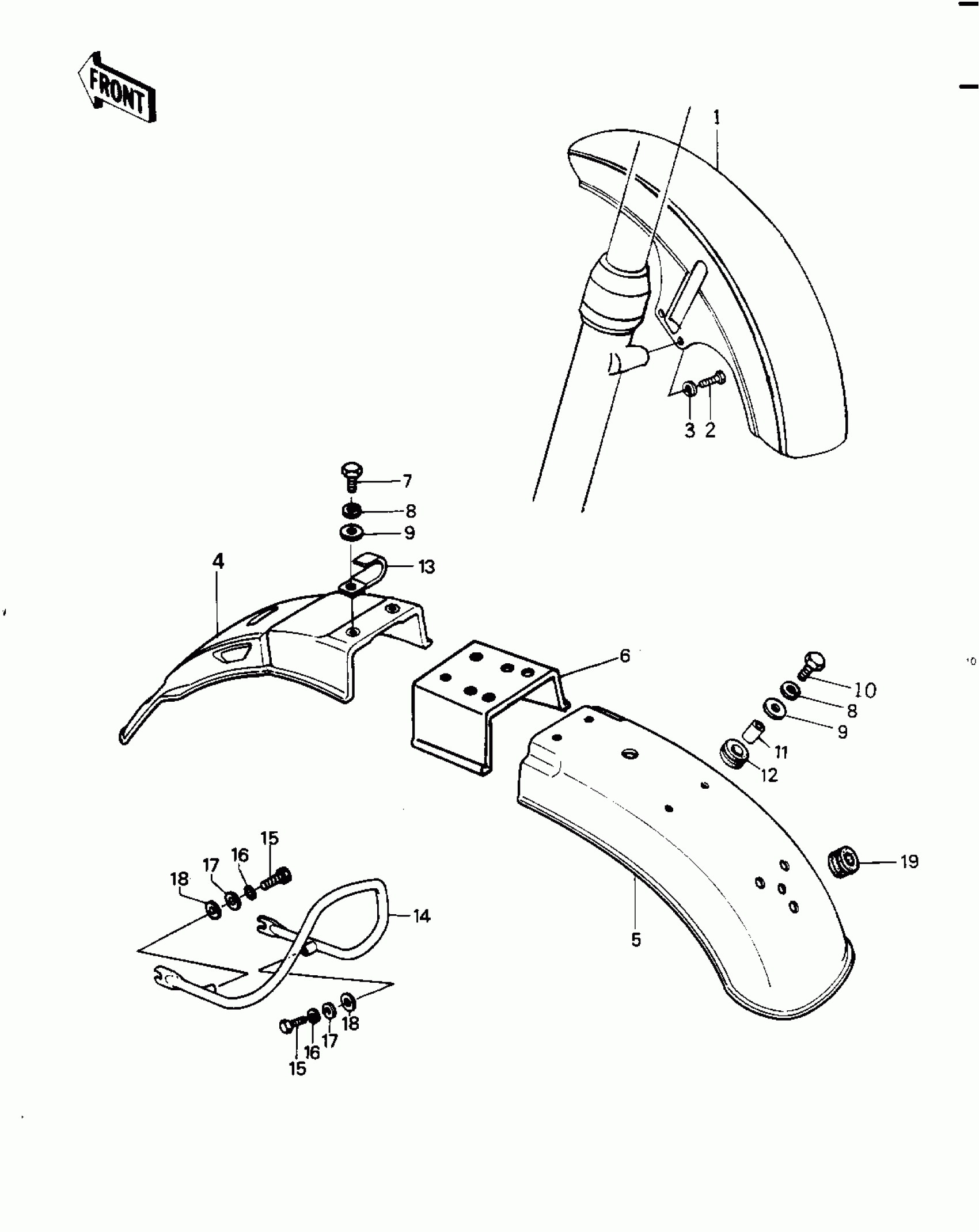

Kawasaki Classic FENDERS Diagram

FENDER-FR

BOLT-SMALL-UPSET,8X18

WASHER SPRING 8MM

FENDER-RR

FENDER-RR

FENDER-RR

BOLT-UPSET,6X16

WASHER SPRING 6MM

WASHER PLAIN

BOLT-UPSET

COLLAR

DAMPER

CLAMP,WIRING HARNESS,L=60

STAY,REAR FENDER

BOLT-UPSET,10X22

WASHER SPRING 10MM

WASHER-PLAIN,10MM

WASHER,10.5X26X2.3

GROMMET,10MM
