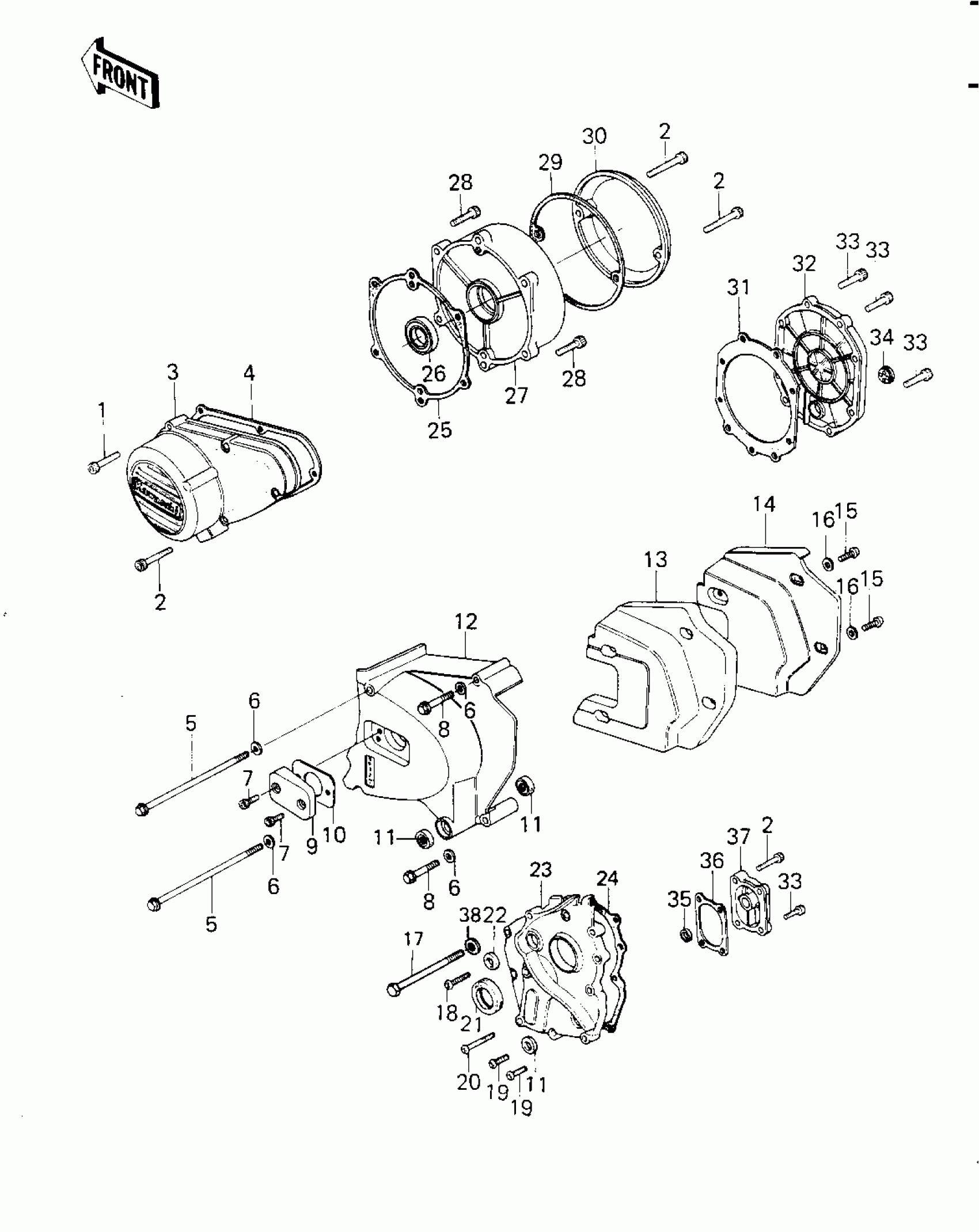

Kawasaki Classic ENGINE COVERS Diagram

#

Description
Price

1

BOLT-SOCKET,6X30

120P0630

Unavailable

2

BOLT,SOCKET,6X40

120P0640

Unavailable

3

COVER,GENERATOR

14031-1052

Unavailable

4

GASKET,GENERATOR COVER

11060-1075

Unavailable

5

BOLT,HEX HEAD,6X125

110G06125

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

7

BOLT-SOCKET,6X14

120P0614

Unavailable

8

BOLT,HEX HEAD,6X71

110G0671

Unavailable

9

COVER,CLUTCH ADJUST

14025-1228

Unavailable

10

GASKET,CLUTCH ADJ CO

11009-1126

Unavailable

11

SEAL-OIL,SB12205

92049-004

$9.58

12

COVER,FRONT CHAIN

14026-1032

Unavailable

13

ARRESTER,SOUND

92075-1064

Unavailable

14

COVER,SOUND ARRESTER

14025-1044

Unavailable

15

SCREW PAN HEAD 6X12

220B0612

Unavailable

16

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

17

BOLT,HEX HEAD,6X54

92003-110

$3.76

18

SCREW PAN HEAD 6X28

220B0628

Unavailable

19

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

20

SCREW PAN HEAD 6X40

220B0640

Unavailable

21

SEAL-OIL,SC325210

92050-024

$6.31

22

OIL SEAL,TC7187

92050-048

$23.27

23

COVER,TRANSMISSION

14025-1240

$136.22

24

GASKET,TRANSMISSION COVER

11060-1069

$17.75

25

GASKET,RH ENGINE COVER

11060-1071

Unavailable

26

OIL SEAL,S25407R

92050-047

$34.44

27

COVER,R.H ENGINE

14032-083

Unavailable

28

BOLT,SOCKET,6X22

120P0622

Unavailable

29

GASKET,POINT CAP

14050-006

$24.34

30

COVER,CONTACT BRAKER

14025-1082

Unavailable

31

GASKET,CLUTCH

14046-024

$46.25

32

COVER,CLUTCH

14032-1041

Unavailable

33

BOLT-SOCKET,6X25

120P0625

Unavailable

34

GAUGE,OIL LEVEL

52015-004

$48.05

35

SEAL-OIL,SC22325

92049-1048

$8.86

36

GASKET,KICK COVER

14046-025

$10.05

37

COVER,KICKSTARTER,

14032-075-21

Unavailable

38

WASHER OIL PUMP BANJO

92022-077

$3.99
