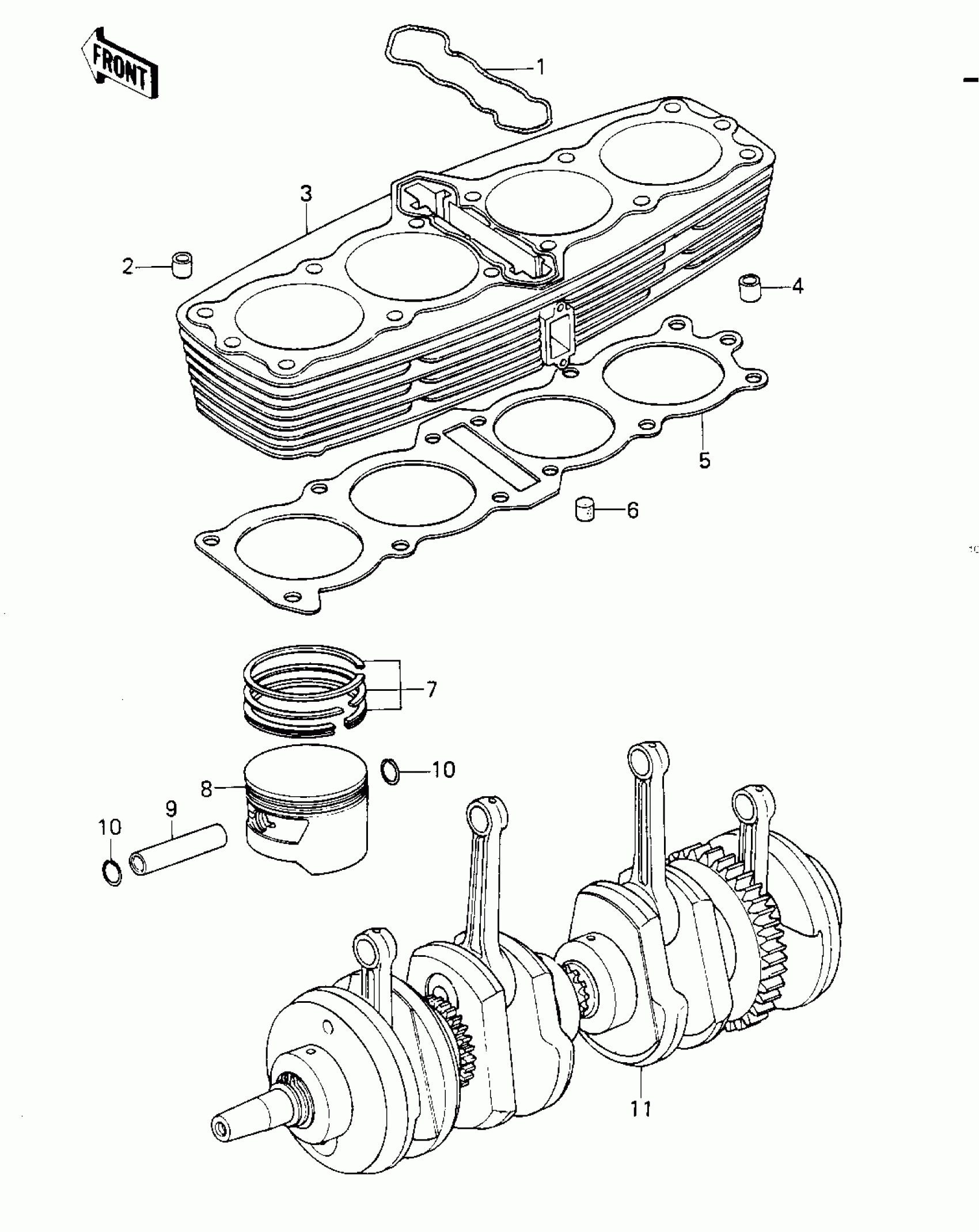

Kawasaki Classic CYLINDER/PISTONS/CRANKSHAFT Diagram

#

Description
Price

1

GASKET,CYLINDER RUBE

92055-062

$153.96

2

PIN,DOWEL,10X14

92043-1037

$0.74

3

CYLINDER,FLAT BLACK

11005-1009-21

Unavailable

4

PIN,11X14X12.3

92043-1266

$1.08

5

GASKET,CYLINDER BASE

11009-030

Unavailable

6

RUBBER PLUG,CYLINDER

92074-030

Unavailable

7

RING SET,STD

13008-5012

$151.39

7

RING SET,0.020"O/S

13025-5007

Unavailable

7

RING SET,0.040"O/S

13024-5008

Unavailable

8

PISTON,S.T.D

13001-1005

Unavailable

8

PISTON,0.020 O/S

13029-1003

Unavailable

8

PISTON,0.040 O/S

13027-1005

Unavailable

9

PIN-PISTON

13002-1013

$6.66

10

CIRCLIP,PISTON PIN

92036-021

$0.49

11

CRANKSHAFT ASSY

13031-1040

Unavailable
