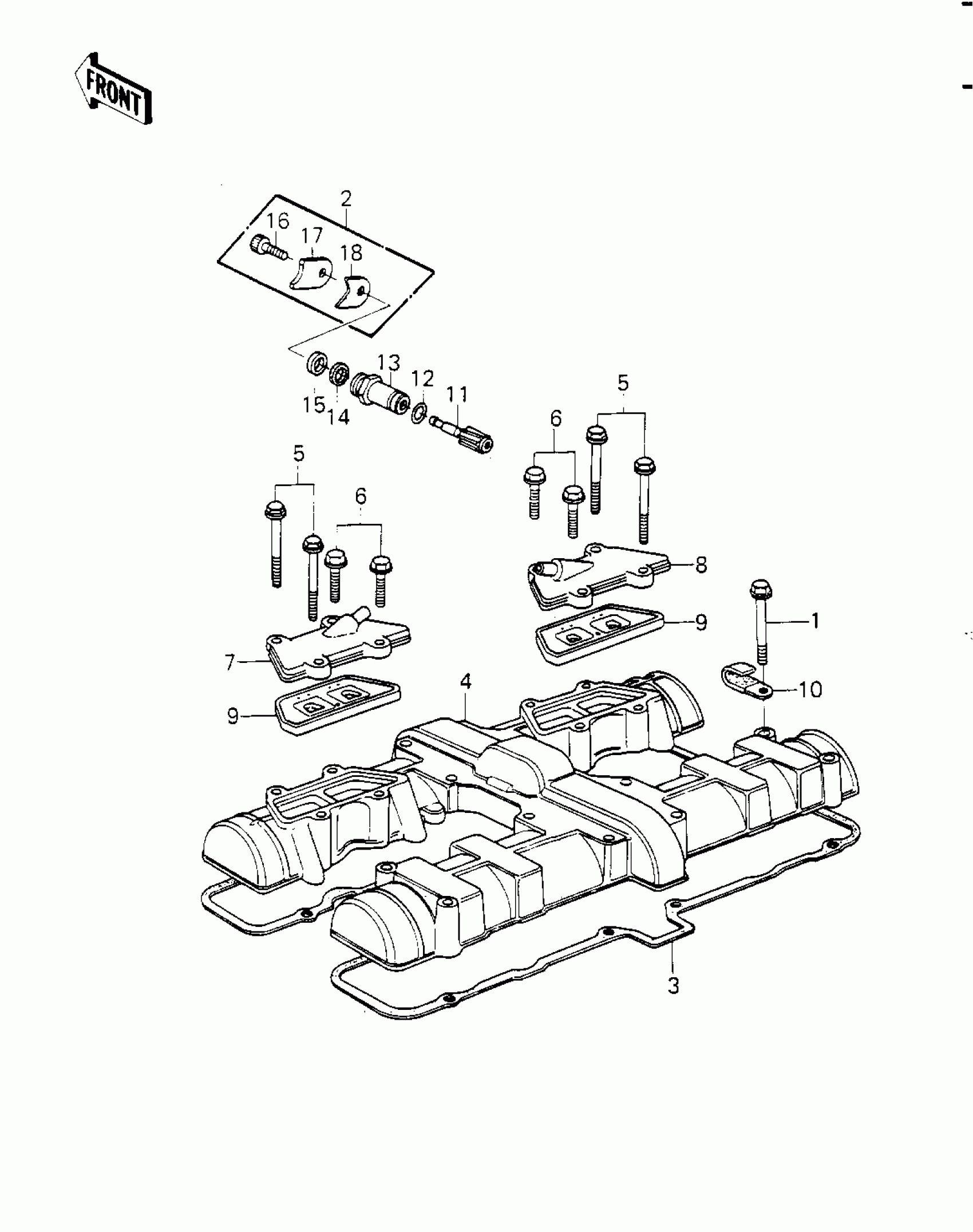

Kawasaki Classic CYLINDER HEAD COVER Diagram

#

Description
Price

1

BOLT,FLANGED,6X45

92003-092

$7.58

2

HOLDER SET,TACHOMETER

13091-5001

Unavailable

3

GASKET,CYL HEAD COVE

11009-1050

Unavailable

4

COVER,CYLINDER HEAD

14025-1231

Unavailable

5

BOLT,HEX HEAD,6X66

92001-1161

Unavailable

6

BOLT,FLANGED,6X20

92001-1100

$5.23

7

CAP ASSY,L.H.REED VLV

14075-5009

$31.66

8

CAP ASSY,R.H.REED VLV

14075-5010

$39.37

9

VALVE-ASSY-REED

12021-1003

Unavailable

10

CLAMP,WIRING HARNESS

21126-008

$4.73

11

GEAR,TACHOMETER,10T

13223-011

$94.86

12

RING-O,10MM

92055-1149

$6.57

13

GUIDE,TACHOMETER GEAR

92087-010

$24.19

14

SEAL-OIL

92050-075

$11.39

15

GASKET,TACHOMETER GEAR

92065-103

$4.07

16

BOLT-SOCKET,6X14

120P0614

Unavailable

17

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

18

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26
