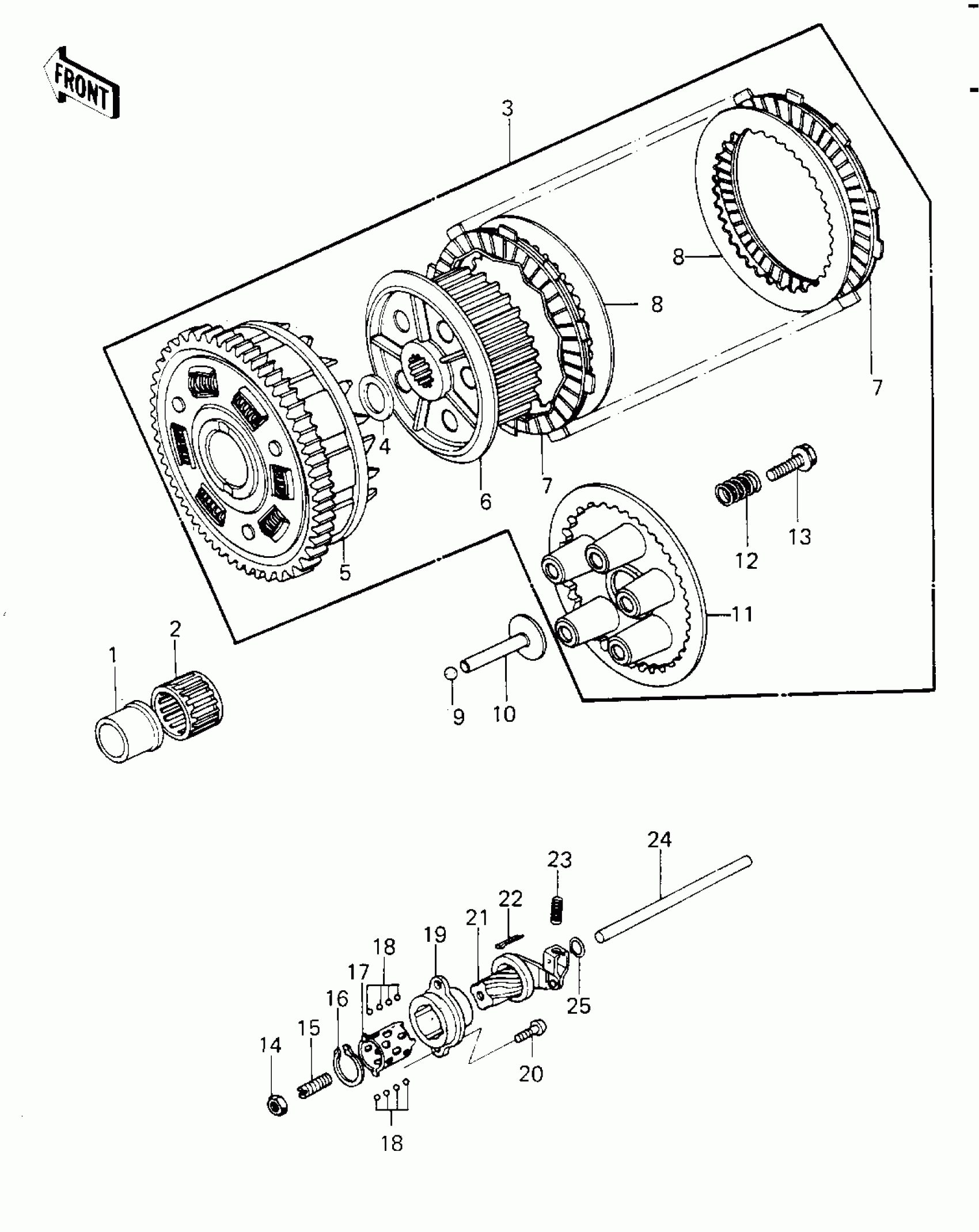

Kawasaki Classic CLUTCH Diagram
#
Description
Price
1
BUSHING,CLUTCH
92028-135
Unavailable
2
BEARING-NEEDLE,KTV323723
92046-028
$21.24
3
CLUTCH-ASSY
13081-1014
Unavailable
4
SPACER,25.5X47X2.5
92026-022
$9.91
5
CLUTCH-ASSY
13081-1367
Unavailable
6
CLUTCH-ASSY
13081-1367
Unavailable
7
PLATE,CLUTCH FRICTION
13088-030
$26.17
8
PLATE,CLUTCH STEEL
13089-022
Unavailable
9
BALL-STEEL,3/8"
600A1200
$1.56
10
PUSHER,CLUTCH SPRG P
13116-022
Unavailable
11
PLATE,CLUTCH SPRING
13187-006
Unavailable
12
SPRING,CLUTCH
92081-1033
$7.38
13
BOLT,FLANGED,6X18
92001-1066
$6.22
14
NUT-HEX-SMALL,8MM
318B0800
$0.59
15
SCREW,SLOTTED,8X25
92014-014
Unavailable
16
CIRCLIP-TYPE-C,15MM
480J1500
$2.31
17
RETAINER
13197-004
Unavailable
18
BALL,STEEL,1/8"
600A0400
$1.40
19
OUTER,CLUTCH RELEASE
13118-011
Unavailable
20
SCREW-PAN-CROS,6X16
220B0616
$2.84
21
INNER,CLUTCH RELEASE
13102-019
Unavailable
22
PIN-COTTER,1.6X15
550D1615
$2.51
23
SPRING,CLUTCH RELEASE
92081-069
$7.51
24
PUSH ROD,CLUTCH
13116-021
Unavailable
25
O RING,7MM
670B1507
$1.28
