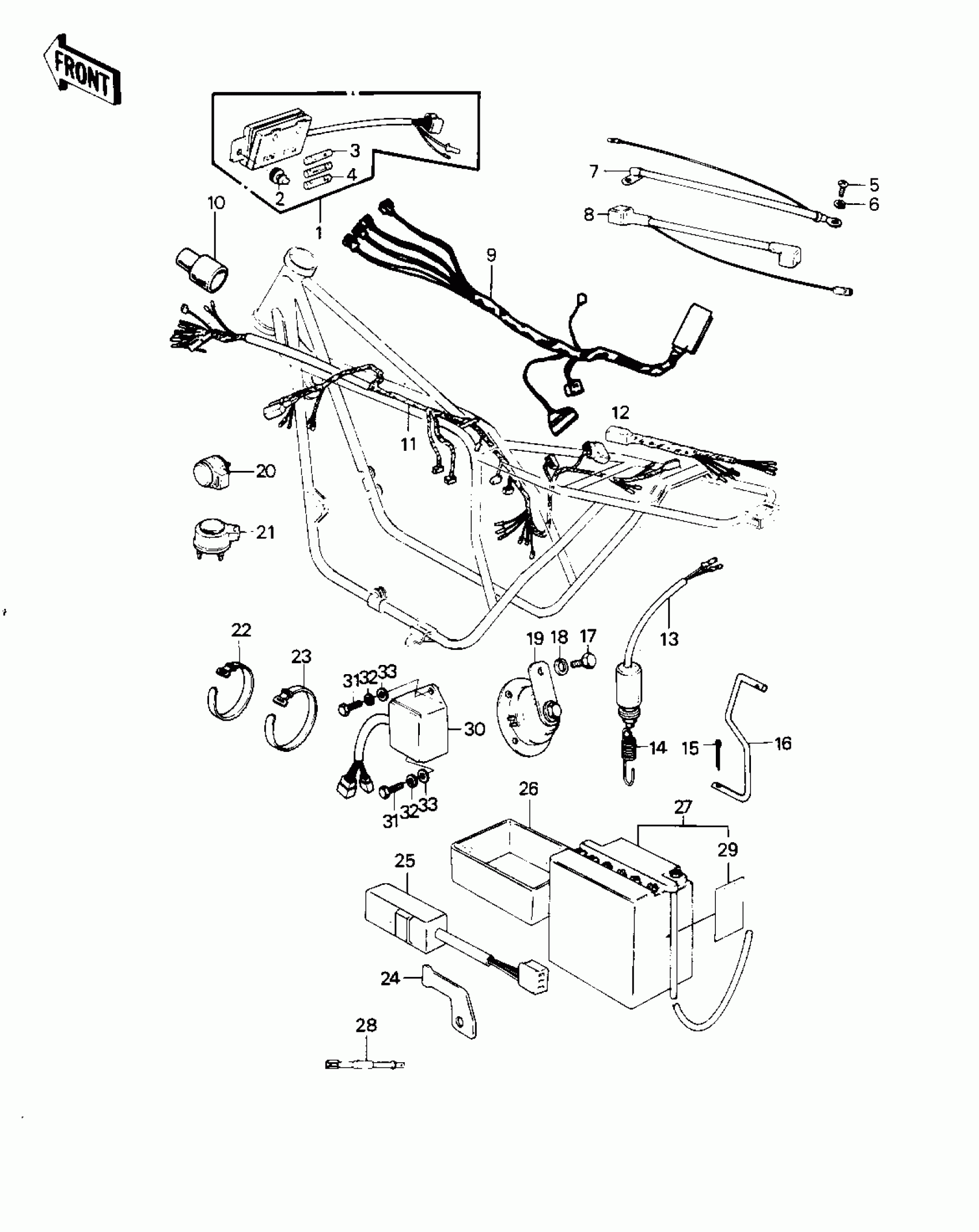

Kawasaki Classic CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

FUSE ASSY

26004-1006

$104.24

2

DAMPER,FUSE

92075-279

$6.45

3

FUSE,20A,L=25

26006-005

$5.06

4

FUSE,10A,L=25

26006-003

$4.72

5

BOLT,6X10

92001-137

$6.52

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WIRE,BATTERY GROUND

26010-054

Unavailable

8

WIRE,LEAD

26011-1071

$22.71

9

WIRING HARNESS,SUB

26001-1142

$224.64

10

COVER WIRING HARNESS

26009-003

Unavailable

11

WIRING,HARNESS,MAIN

26001-1141

$217.12

12

WIRING HARNESS,REAR

26002-031

Unavailable

13

SWITCH-BRAKE LAMP

27010-017

Unavailable

14

SPRING BRAKE LAMP SW

27011-009

Unavailable

15

PIN COTTER 1.6X10

550D1610

Unavailable

16

HOOK,BRK LAMP SW SPR

27012-010

Unavailable

17

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

18

WASHER SPRING 8MM

461F0800

Unavailable

19

HORN

27003-1006

Unavailable

20

RELAY-ASSY,TURN SIGNAL

27002-011

$100.61

21

RELAY,TURN SIGNAL

27002-016

Unavailable

22

BAND,L=123

92072-030

$5.00

23

BAND,L=186

92072-056

$5.00

24

BRACKET,OUTAGE SWITCH

32060-014

$11.49

25

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

26

CASE,BATTERY

32099-015

Unavailable

27

YUA BAT YB14L-A2

26012-1008

$83.22

28

REGULATOR

21066-026

Unavailable

29

LABEL-WARNING,BATTERY

56040-1036

Unavailable

30

SWITCH,RESERVE LIGHTI

27010-1024

Unavailable

31

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

32

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

33

WASHER SPRING 6MM

461F0600

Unavailable
