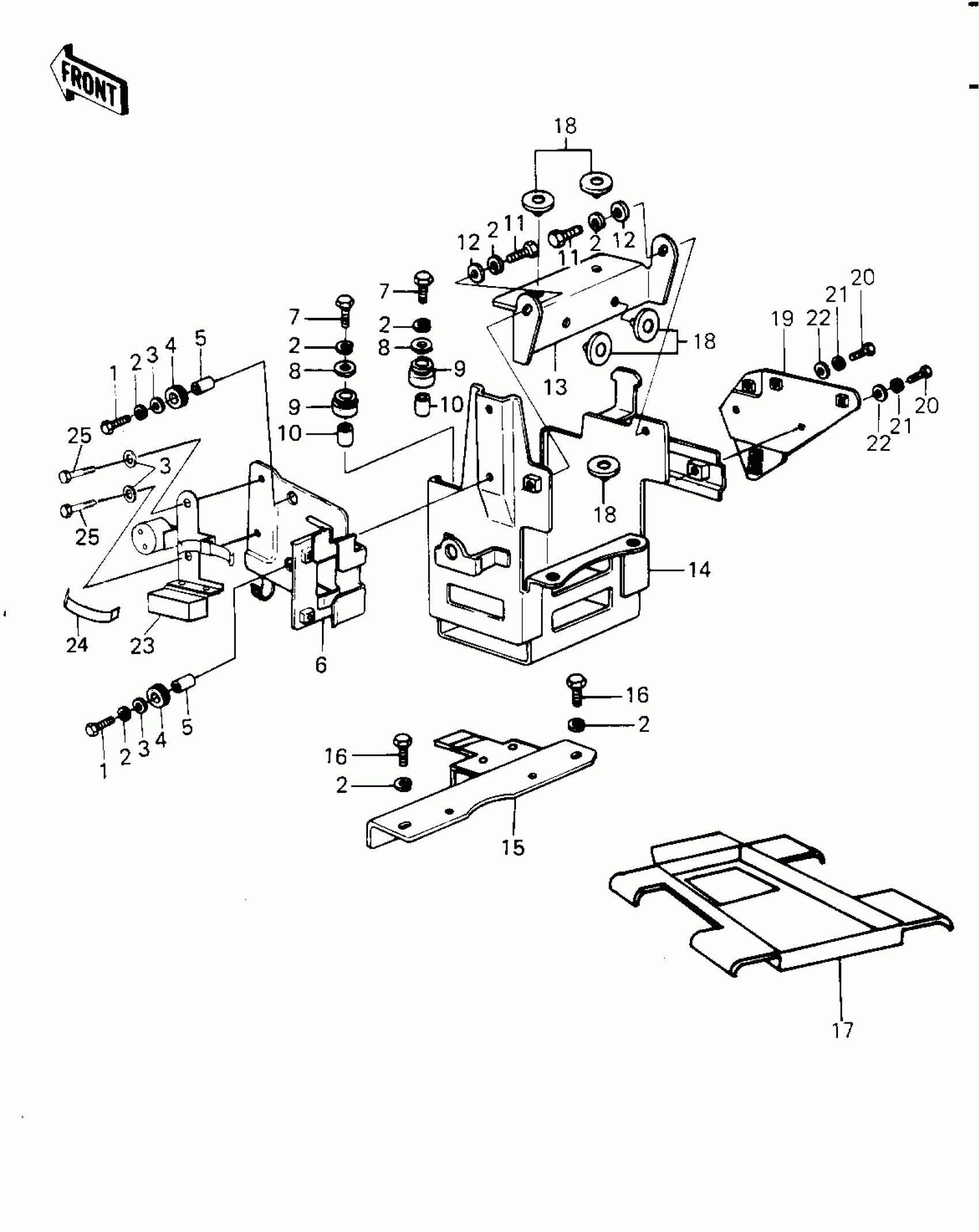

Kawasaki Classic BATTERY CASE/TOOL CASE Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

WASHER,6.5X22X1.6

92022-237

$3.92

4

DAMPER RUBBER

92075-149

$11.03

5

COLLAR

92027-165

Unavailable

6

BRACKET,BASE

11034-1261

Unavailable

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER,6.5X16X2

92022-1565

$3.92

9

DAMPER RUBBER,BTT CA

92075-146

Unavailable

10

COLLAR,6.8X10X14.5

92027-156

$5.00

11

BOLT-UPSET,6X12

112G0612

$1.49

12

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

13

BAND,BATTERY

32100-100

$23.98

14

CASE,BATTERY

32097-1025

$43.17

15

PLATE,BATTERY CASE

13169-1233

Unavailable

16

BOLT-UPSET,6X16

112G0616

Unavailable

17

CASE,TOOL

32098-1012

$38.92

18

DAMPER,RUBBER

92075-078

$4.39

19

BRACKET,BASE,R.H

11034-1732

Unavailable

20

BOLT-UPSET,6X12

112G0612

$1.49

21

WASHER SPRING 6MM

461F0600

Unavailable

22

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

23

BRACKET,FUEL FILTER

11034-1724

Unavailable

24

BAND,AIR CLEANER FITT

92072-1017

Unavailable

25

BOLT,6X10

112G0610

Unavailable
